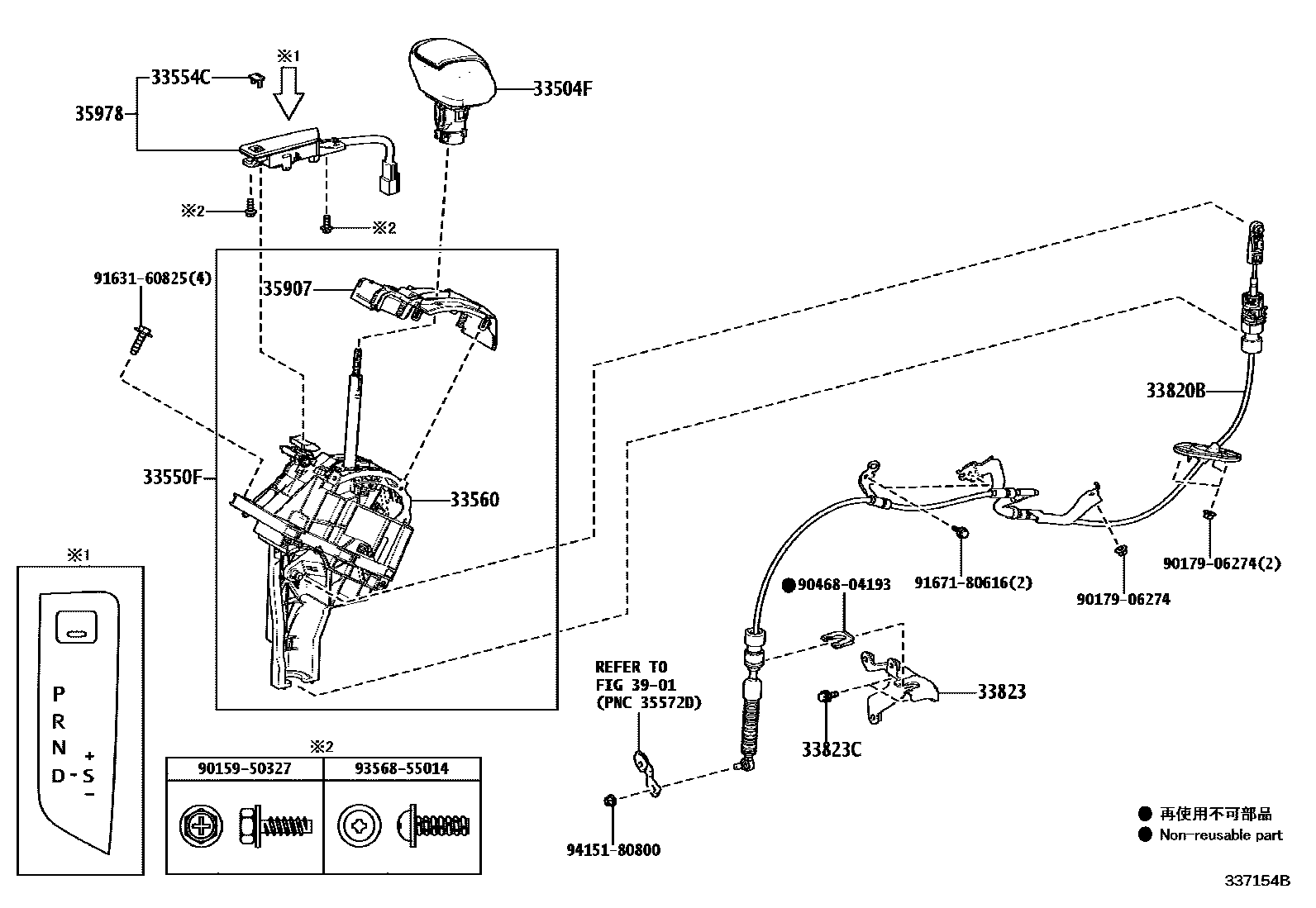

Toyota ALPHARD/VELLFIRE — SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK/SILVER,TRIM2#
BLACK,TRIM2#; BLACK,TRIM2#,4#
33550FSHIFT ASSY, TRANSMISSION INSTRUMENT PANEL
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33560UNIT ASSY, SHIFT LOCK CONTROL
33820BCABLE ASSY, TRANSMISSION CONTROL
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35978INDICATOR, SHIFT POSITION
3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)
9015950327
main90159-50327
9017906274
main90179-06274
9046804193
main90468-04193
9163160825
main91631-60825
9167180616
main91671-80616
9356855014
main93568-55014
9415180800
main94151-80800
17 parts on this diagram · 3 diagrams in section
SHIFT LEVER & RETAINER for Toyota ALPHARD/VELLFIRE
This section contains 24 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota ALPHARD/VELLFIRE. Key components include: KNOB SUB-ASSY, SHIFT LEVER, SHIFT ASSY, TRANSMISSION INSTRUMENT PANEL, COVER, SHIFT LOCK RELEASE BUTTON, UNIT ASSY, SHIFT LOCK CONTROL, CABLE ASSY, TRANSMISSION CONTROL.
