Toyota ALPHARD/VELLFIRE — ROOF PANEL & BACK PANEL

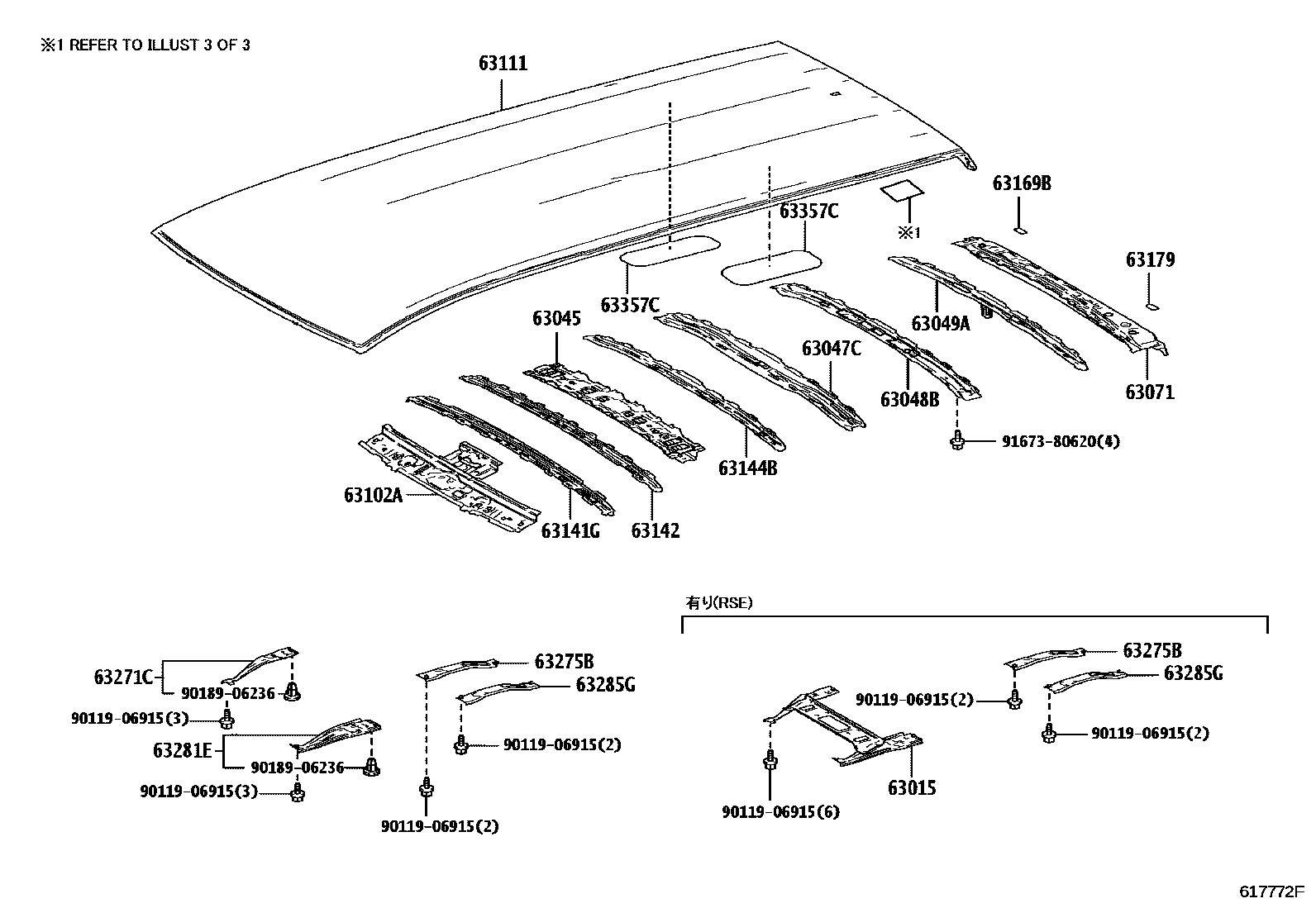

Parts diagram

63015BRACKET SUB-ASSY, ROOF CONSOLE

main63015-V2010i202306

63045REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3

main63105-V2010i202306

63047CREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5

main63107-V2010i202306

63048BREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63108-V2010i202306

63049AREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.7

main63207-V2010i202306

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-V2010i202306

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-V2020i202306

63111PANEL, ROOF

main63111-V2010i202306

main63111-V2020i202306

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63123-V2010i202306

63142REINFORCEMENT, ROOF PANEL, NO.2

main63124-V2010i202306

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-V2010i202306

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-47010i202306

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-47010i202306

63271CSTRENGTH, ROOF PANEL, NO.1 RH

main63271-V2010i202306

63275BSTRENGTH, ROOF PANEL, NO.5

main63275-V2010i202306

63281ESTRENGTH, ROOF PANEL, NO.1 LH

main63281-V2010i202306

63285GSTRENGTH, ROOF PANEL, NO.5 LH

main63285-V2010i202306

63357CSILENCER, ROOF

main63357-V2010×2i202306-202409

9011906915

main90119-06915

9018906236

main90189-06236

9167380620

main91673-80620

21 parts on this diagram · 4 diagrams in section

ROOF PANEL & BACK PANEL for Toyota ALPHARD/VELLFIRE

This section contains 35 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota ALPHARD/VELLFIRE. Key components include: BRACKET SUB-ASSY, ROOF CONSOLE, REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3, REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5, REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6, REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.7.
