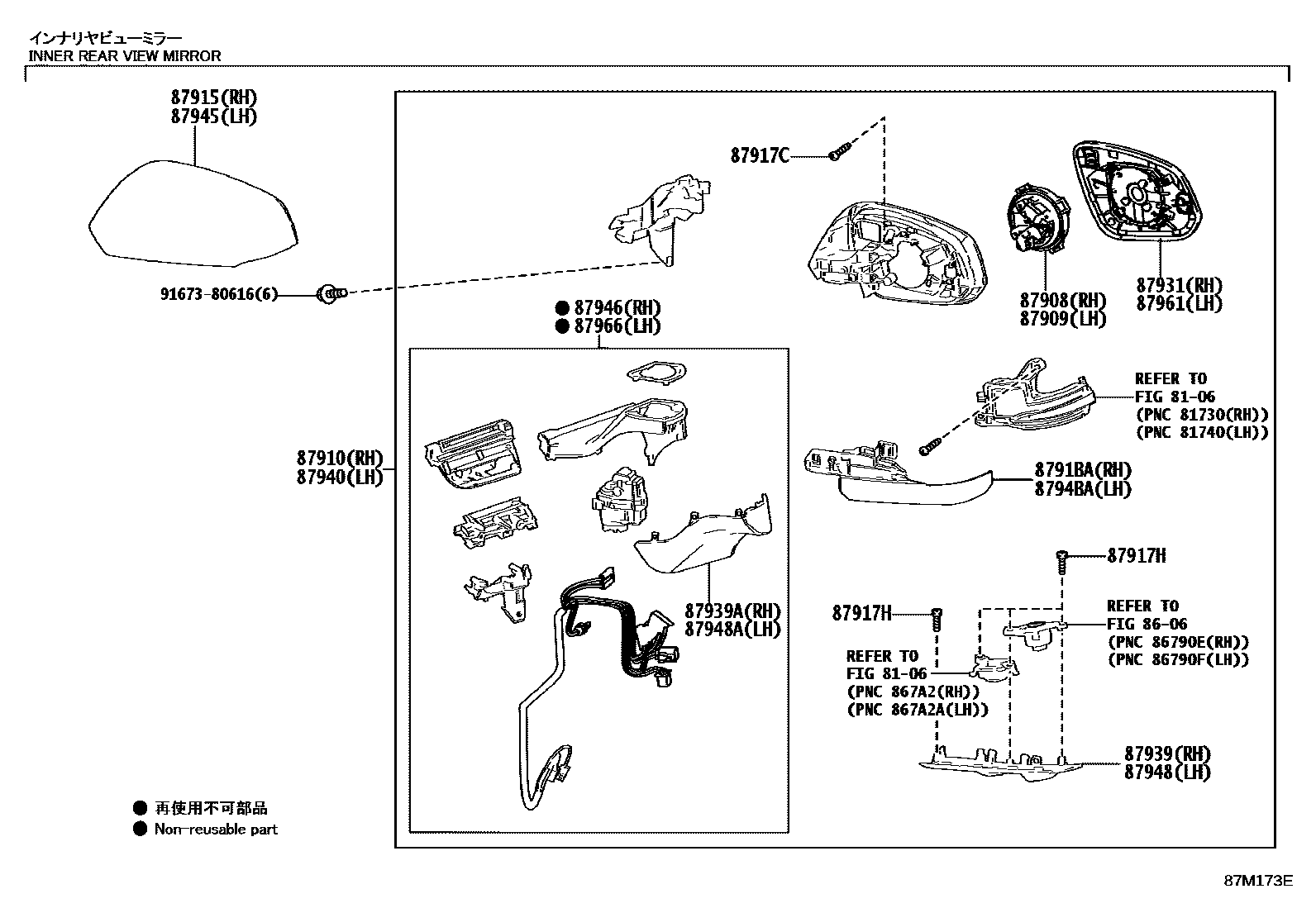

Toyota ALPHARD/VELLFIRE — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
8606CAMERA & REAR MONITOR DISPLAY
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
PLATINUM WHITE PEARL MC.,089
PRECIOUS METAL,1L5
BLACK,202
PRECIOUS LEO-BLOND,4Y7
87917CSCREW, OUTER MIRROR
87917HSCREW, OUTER MIRROR, NO.2
main87917-58420×6iAAHH4#,AAHP45,AGH4#,TAHA4#..EL,PREM,SL,SLS,Z; AAHH4#,AGH4#..G; AAHH4#,AGH4#..G,X202306
8791BACOVER, OUTER MIRROR, RH NO.3
87931OUTER MIRROR, RH
main87931-V2040supersedes 87931-V2280iAAHH4#,AAHP45,AGH4#,TAHA4#..EL,G,PREM,SL,SLS,Z; AAHH4#,AGH4#..X202306
87939COVER, OUTER MIRROR HOLE, RH
87939ACOVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
PLATINUM WHITE PEARL MC.,089
PRECIOUS METAL,1L5
BLACK,202
PRECIOUS LEO-BLOND,4Y7
87946RETRACTOR, OUTER MIRROR, RH
87948COVER, OUTER MIRROR HOLE, LH
87948ACOVER, OUTER MIRROR HOLE, LH
8794BACOVER, OUTER MIRROR, LH NO.3
87961MIRROR OUTER, LH
main87961-V2040supersedes 87961-V2280iAAHH4#,AAHP45,AGH4#,TAHA4#..EL,G,PREM,SL,SLS,Z; AAHH4#,AGH4#..X202306
87966RETRACTOR, OUTER MIRROR, LH
9167380616
main91673-80616
21 parts on this diagram · 2 diagrams in section
MIRROR for Toyota ALPHARD/VELLFIRE
This section contains 22 genuine Toyota parts for the MIRROR system of the Toyota ALPHARD/VELLFIRE. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH.
