Toyota ALPHARD/VELLFIRE — METER

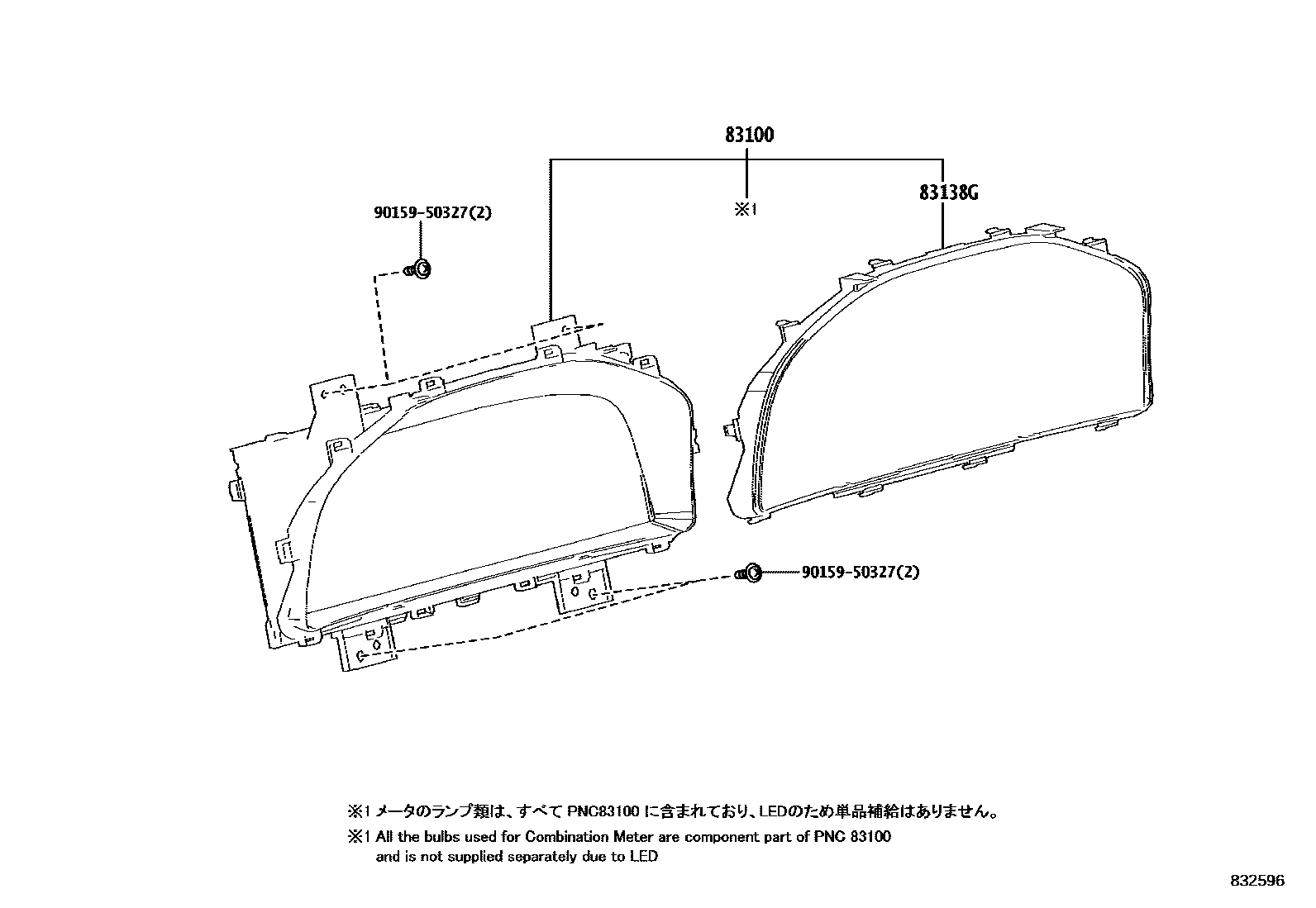

Parts diagram

83100METER ASSY, COMBINATION

main83800-V2330supersedes 83800-V2391i202309-202310

main83800-V2331i202310-202406

main83800-V2350i202306-202406

main83800-V2351i202407

main83800-V2380i202306-202406

main83800-V2381i202407

main83800-V2740i202306-202406

main83800-V2741i202407

main83800-V2750i202306-202309

main83800-V2751i202310-202406

main83800-V2752i202407

main83800-V2760i202306-202406

main83800-V2761i202407

main83800-V2770i202306-202406

main83800-V2771i202407

main83800-V2780supersedes 83800-V2810i202501

main83800-V2790supersedes 83800-V2820i202501

main83800-V2300supersedes 83800-V2361i202306-202406

main83800-V2301supersedes 83800-V2361i202407

main83800-V2332supersedes 83800-V2391i202407

main83800-V2360i202306-202406

main83800-V2361i202407

main83800-V2390i202306-202406

main83800-V2391i202407

main83800-V2730i202306-202406

main83800-V2731i202407

83138GGLASS, COMBINATION METER

main83852-V2290i202306

9015950327

main90159-50327

3 parts on this diagram · 2 diagrams in section

METER for Toyota ALPHARD/VELLFIRE

This section contains 7 genuine Toyota parts for the METER system of the Toyota ALPHARD/VELLFIRE. Key components include: METER ASSY, COMBINATION, MIRROR SUB-ASSY, METER, GLASS, COMBINATION METER, PLATE, COMBINATION METER MIRROR, NO.1.
