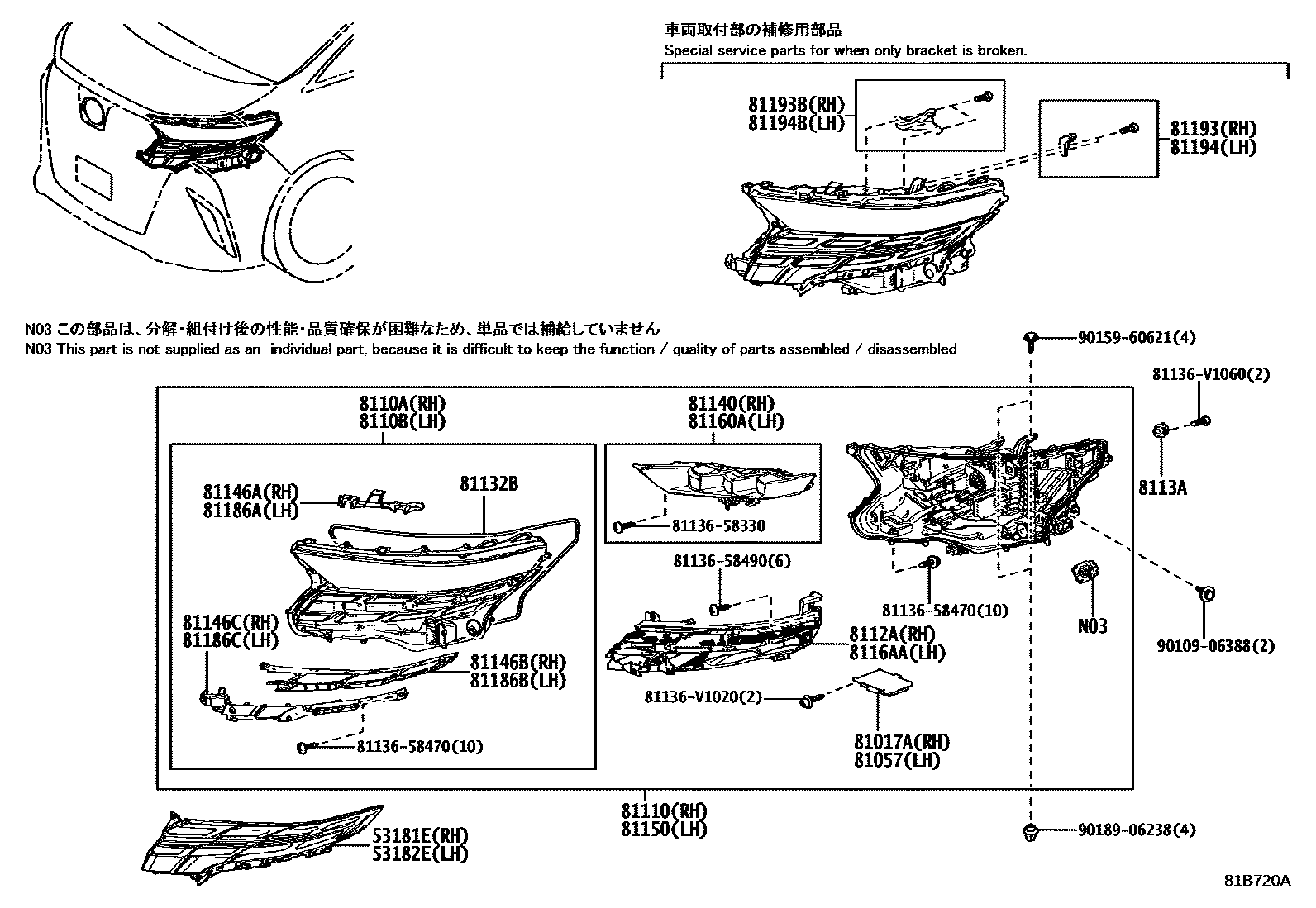

Toyota ALPHARD/VELLFIRE — HEADLAMP
53181ECOVER, HEADLAMP, RH
53182ECOVER, HEADLAMP, LH
81017ACOMPUTER SUB-ASSY, HEADLAMP, RH NO.2
main81017-V2070×2iAAHH4#,AGH4#..ALPHD..G; AGH4#..Z;AGH4#..VFIRE;AAHH4#..VFIRE..G;AAHH4#,AAHP45,TAHA4#..EL,PREM,SL,SLS,Z202306
81057COMPUTER SUB-ASSY, HEADLAMP, LH NO.2
8110ALENS SUB-ASSY, HEADLAMP, RH
8110BLENS SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
8112AUNIT, HEADLAMP CLEARANCE LED, NO.1 RH
81132BGASKET, HEADLAMP LENS
8113ALED, HEADLAMP FRONT TURN SIGNAL
81140UNIT ASSY, HEADLAMP LED, RH
main81140-V2070iAAHH4#,AGH4#..ALPHD..G; AGH4#..Z;AGH4#..VFIRE;AAHH4#..VFIRE..G;AAHH4#,AAHP45,TAHA4#..EL,PREM,SL,SLS,Z202306
81146AFITTING, HEADLAMP, RH
81146BFITTING, HEADLAMP, NO.1 RH
81146CFITTING, HEADLAMP, NO.2 RH
81150HEADLAMP ASSY, LH
81160AUNIT ASSY, HEADLAMP LED, LH
main81160-V2070iAAHH4#,AGH4#..ALPHD..G; AGH4#..Z;AGH4#..VFIRE;AAHH4#..VFIRE..G;AAHH4#,AAHP45,TAHA4#..EL,PREM,SL,SLS,Z202306
8116AAUNIT, HEADLAMP CLEARANCE LED, LH
81186AFITTING, HEADLAMP
81186BFITTING, HEADLAMP, NO.1 LH
81186CFITTING, HEADLAMP, NO.2 LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
8113658330PROTECTOR, HEADLAMP, NO.1 RH
main81136-58330
8113658470PROTECTOR, HEADLAMP, NO.1 RH
main81136-58470
8113658490PROTECTOR, HEADLAMP, NO.1 RH
main81136-58490
81136V1020PROTECTOR, HEADLAMP, NO.1 RH
main81136-V1020
81136V1060PROTECTOR, HEADLAMP, NO.1 RH
main81136-V1060
9010906388
main90109-06388
9015960621
main90159-60621
9018906238
main90189-06238
32 parts on this diagram · 3 diagrams in section
HEADLAMP for Toyota ALPHARD/VELLFIRE
This section contains 39 genuine Toyota parts for the HEADLAMP system of the Toyota ALPHARD/VELLFIRE. Key components include: COVER, HEADLAMP, RH, COVER, HEADLAMP, LH, COMPUTER SUB-ASSY, HEADLAMP, RH NO.1, COMPUTER SUB-ASSY, HEADLAMP, RH NO.2, COMPUTER SUB-ASSY, HEADLAMP, LH.
