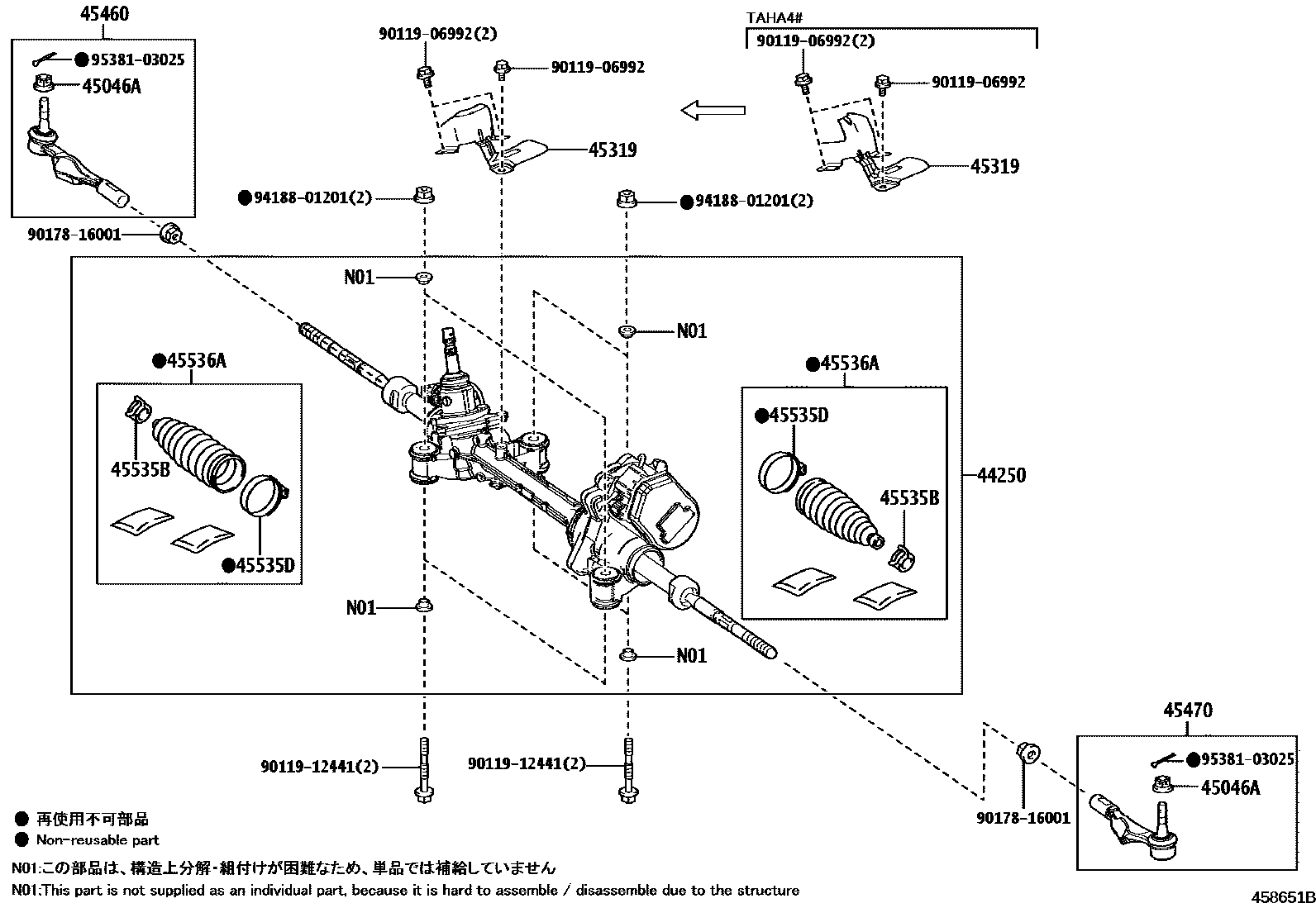

Toyota ALPHARD/VELLFIRE — FRONT STEERING GEAR & LINK
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
45046ANUT, CASTLE(FOR TIE ROD END)
45460ROD ASSY, TIE, RH
45470ROD ASSY, TIE, LH
45535BCLIP(FOR STEERING RACK BOOT)
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
9011906992
main90119-06992
9011912441
main90119-12441
9017816001
main90178-16001
9418801201
main94188-01201
9538103025
main95381-03025
13 parts on this diagram · 1 diagram in section
FRONT STEERING GEAR & LINK for Toyota ALPHARD/VELLFIRE
This section contains 13 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota ALPHARD/VELLFIRE. Key components include: GEAR ASSY, POWER STEERING(FOR RACK & PINION), NUT, CASTLE(FOR TIE ROD END), INSULATOR, STEERING GEAR HEAT, ROD ASSY, TIE, RH, ROD ASSY, TIE, LH.
