Toyota ALPHARD/VELLFIRE — CONSOLE BOX & BRACKET
55381CBRACKET, FINISH PANEL MOUNTING, NO.1
55402EPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.1
BLACK,TRIM2#
BLACK,TRIM2#
SUNSET BROWN,TRIM4#; SUNSET BROWN,TRIM41
SUNSET BROWN,TRIM4#; SUNSET BROWN,TRIM40
55403GPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.2
BLACK,TRIM2#
BLACK,TRIM2#
SUNSET BROWN,TRIM4#; SUNSET BROWN,TRIM41
SUNSET BROWN,TRIM4#; SUNSET BROWN,TRIM40
55539ACOVER, SPARE SWITCH HOLE
55539JCOVER, SPARE SWITCH HOLE
55539KCOVER, SPARE SWITCH HOLE
BLACK
55539WCOVER, SPARE SWITCH HOLE
55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
SILVER,TRIM2#
main58803-V2020-E0iAAHH4#,AGH4#..PREM; AAHH4#,AGH4#..Z; AAHH4#,TAHA4#..EL; AAHH4#..PREM,Z; TAHA4#..Z202306
BRONZE METALLIC,TRIM2#
58804DPANEL SUB-ASSY, CONSOLE, UPPER FRONT
BRONZE,TRIM2#; BRONZE,TRIM2#,4#
SILVER,TRIM2#
BRONZE METALLIC,TRIM2#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
BLACK,TRIM2#
BLACK,TRIM2#
SUNSET BROWN,TRIM4#; SUNSET BROWN,TRIM41
SUNSET BROWN,TRIM4#; SUNSET BROWN,TRIM40
BLACK,TRIM2#,4#
58806APOCKET SUB-ASSY, CONSOLE BOX
BRONZE METALLIC,TRIM2#
SILVER SPUTTERING,TRIM2#
BRONZE SPUTTERING,TRIM2#; BRONZE SPUTTERING,TRIM2#,4#; BRONZE SPUTTERING,TRIM4#
BRONZE METALLIC,TRIM2#
58808COVER SUB-ASSY, SHIFTING HOLE
58810JBOX ASSY, CONSOLE
BLACK,TRIM2#
DK.SEPIA,TRIM4#
SUNSET BROWN,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#
DK.SEPIA,TRIM41
SUNSET BROWN,TRIM4#; SUNSET BROWN,TRIM40
58815ACARPET, CONSOLE BOX
58816DINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM2#; BLACK,TRIM2#,4#
58817BINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,4#; BLACK,TRIM2#
58818ACOVER, CONSOLE BOX, FR
58821CPANEL, CONSOLE, UPPER
58822APANEL, CONSOLE, UPPER REAR
58825APOCKET, CONSOLE BOX
58827AGARNISH, CONSOLE BOX POCKET
SILVER SPUTTERING,TRIM2#
main58827-V2010-E0iAAHH4#,AGH4#..PREM; AAHH4#,AGH4#..Z; AAHH4#,TAHA4#..EL; AAHH4#..PREM,Z; TAHA4#..Z202306
BRONZE METALLIC,TRIM2#
58864ASUPPORT, CONSOLE BOX, NO.4
58886ACOVER, EQUIPMENT SET PANEL
58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58903APANEL SUB-ASSY, CONSOLE REAR END
BRONZE METALLIC,TRIM2#
BRONZE SPUTTERING,TRIM2#; BRONZE SPUTTERING,TRIM2#,4#
BRONZE METALLIC,TRIM2#
SILVER SPUTTERING,TRIM2#
BRONZE SPUTTERING,TRIM4#
BLACK,TRIM2#
BLACK,TRIM4#
58911JPANEL, BOX SIDE, NO.1
BLACK,TRIM2#
BLACK,TRIM4#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM2#
BLACK,TRIM4#
58916MAT, BOX BOTTOM
BLACK,TRIM2#,4#
58918ABRACKET, BOX SUPPORT
58925APOCKET, CONSOLE BOX, REAR
58985RETAINER, CONSOLE BOX
58985ARETAINER, CONSOLE BOX, NO.2
589ACPLUG, REAR SEAT CONSOLE TABLE, NO.3
7455CAUTION PLATE
8121INTERIOR LAMP
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
8606CAMERA & REAR MONITOR DISPLAY
8615TELEPHONE & MAYDAY
9011908D23
main90119-08D23
9046705171
main90467-05171
9046707042C4
main90467-07042C4
9167380616
main91673-80616
9352054012
main93520-54012

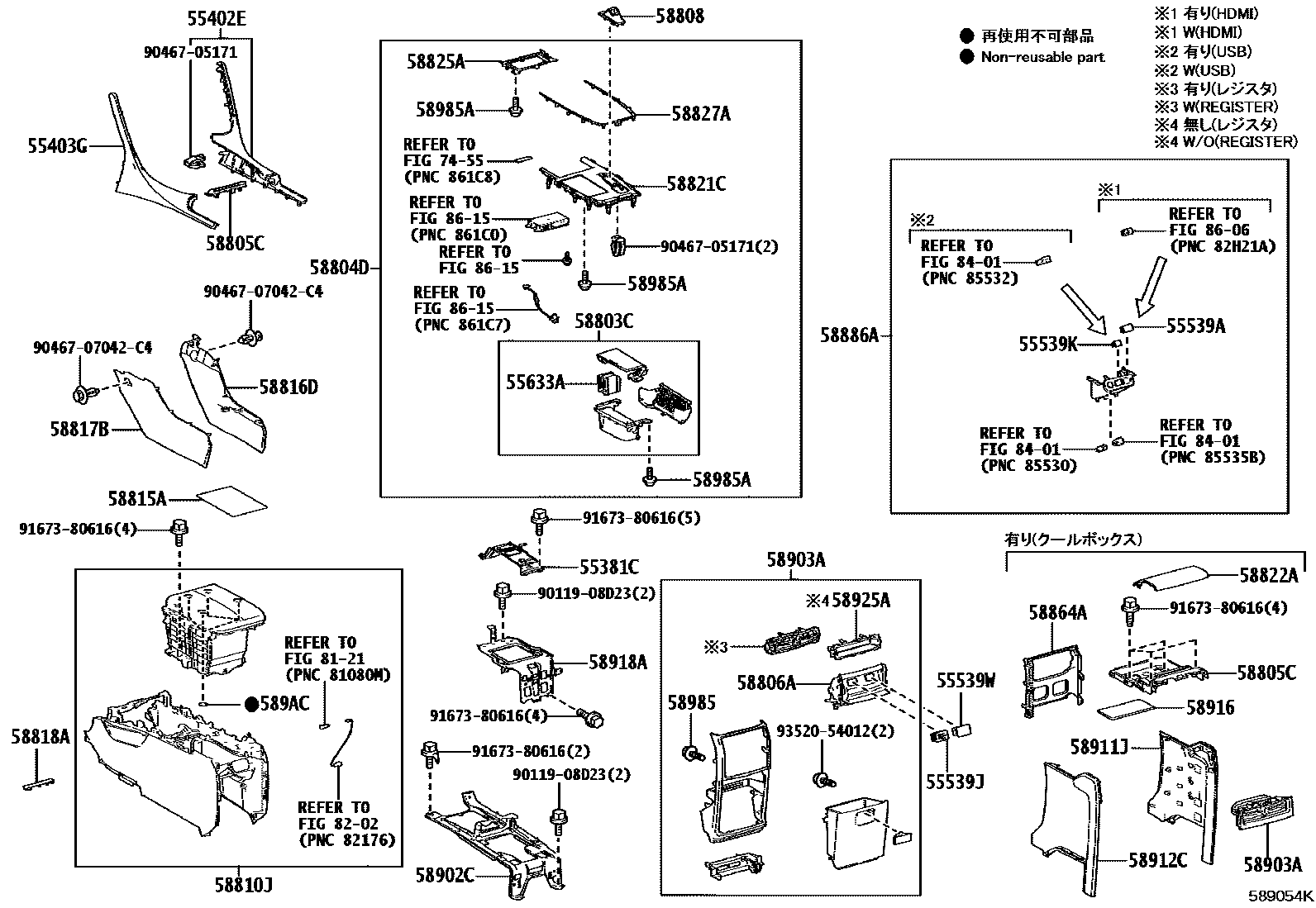

45 parts on this diagram · 1 diagram in section
CONSOLE BOX & BRACKET for Toyota ALPHARD/VELLFIRE
This section contains 45 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota ALPHARD/VELLFIRE. Key components include: BRACKET, FINISH PANEL MOUNTING, NO.1, PAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.1, PAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.2, COVER, SPARE SWITCH HOLE.
