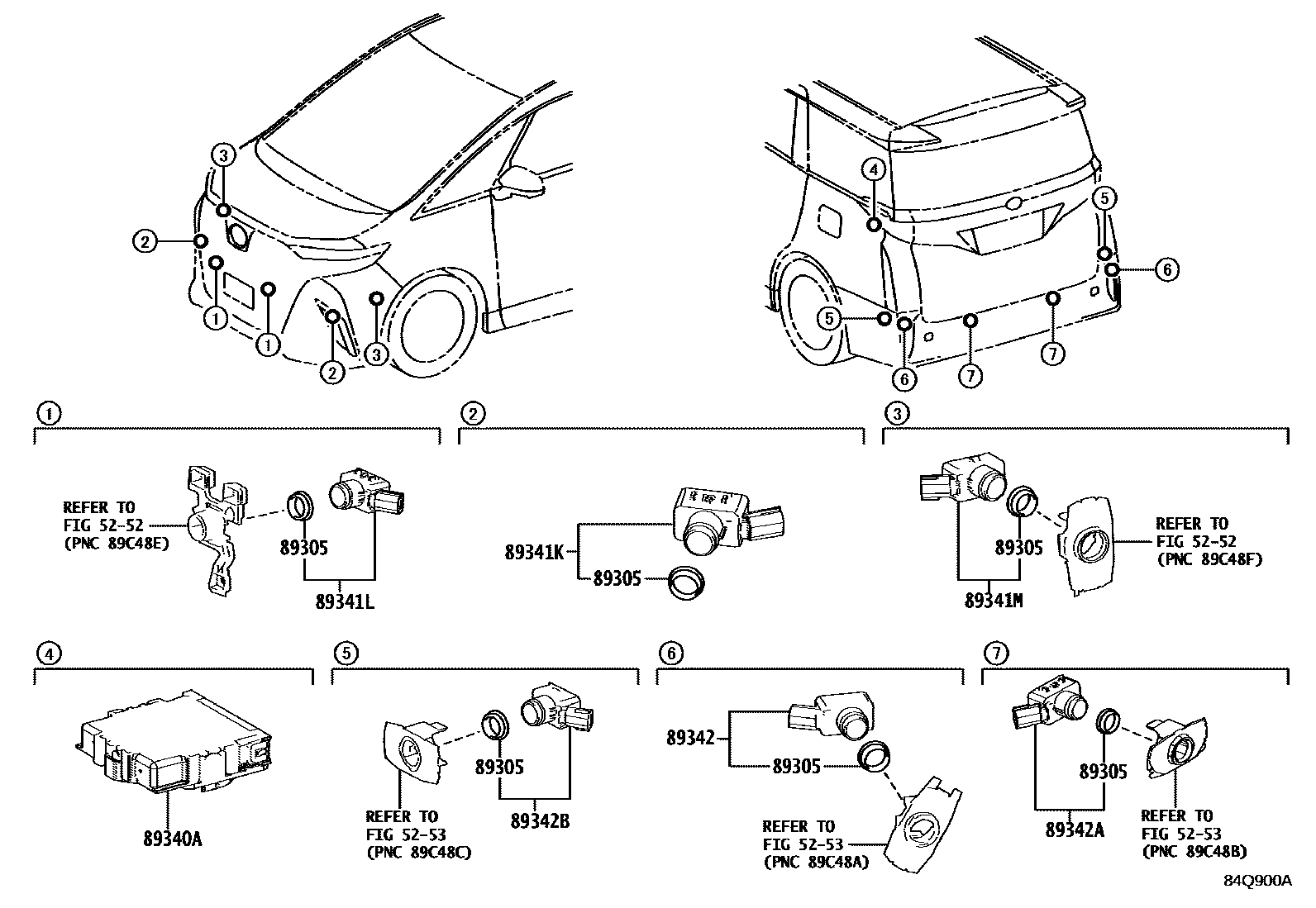

Toyota ALPHARD/VELLFIRE — CLEARANCE & BACK SONAR
5252FRONT BUMPER & BUMPER STAY
5253REAR BUMPER & BUMPER STAY
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341KSENSOR, ULTRASONIC, FRONT CORNER
main89341-50080-C0×2iAAHH4#,AGH4#,TAHA4#..VFIRE..(G,Z); AAHH4#,AGH4#..ALPHD..(G,X); AAHH4#..PREM202306
89341LSENSOR, ULTRASONIC, FRONT CENTER
main89341-K0060-27×2iAAHH4#,AAHP45,AGH4#,TAHA4#..VFIRE..(EL,PREM,SLS); AAHH4#,AAHP45,AGH4#..ALPHD..(EL,SL,Z); AAHH4#..PREM; TAHA4#..Z202306
89341MSENSOR, ULTRASONIC, FRONT SIDE
main89341-K0070-A7×2iAAHH4#,AAHP45,AGH4#..PREM,Z; AAHH4#..PREM; TAHA4#;AAHH4#,AAHP45..EL,SL,SLS202306
main89341-K0070-C0×2iAAHH4#,AAHP45,AGH4#..PREM,Z; AAHH4#..PREM; TAHA4#;AAHH4#,AAHP45..EL,SL,SLS202306
main89341-K0070-P0×2iAAHH4#,AAHP45,AGH4#..PREM,Z; AAHH4#..PREM; TAHA4#;AAHH4#,AAHP45..EL,SL,SLS202306
89342SENSOR, ULTRASONIC, REAR CORNER
main89341-K0060-A4×2iAAHH4#..ALPHD;AAHP45..ALPHD..EL;AAHH4#..VFIRE..(G,PREM);AAHP45,AGH4#,TAHA4#..G,PREM,SL,X,Z202306
PLATINUM WHITE PEARL MC.,089
main89341-K0060-C1×2iAAHH4#..ALPHD;AAHP45..ALPHD..EL;AAHH4#..VFIRE..(G,PREM);AAHP45,AGH4#,TAHA4#..G,PREM,SL,X,Z202306
BLACK,202
PRECIOUS LEO-BLOND,4Y7
main89341-K0060-P8×2iAAHH4#..ALPHD;AAHP45..ALPHD..EL;AAHH4#..VFIRE..(G,PREM);AAHP45,AGH4#,TAHA4#..G,PREM,SL,X,Z202306
PRECIOUS METAL,1L5
89342ASENSOR, ULTRASONIC, REAR CENTER
main89341-K0060-A4×2iAAHH4#,AAHP45,AGH4#..PREM; AAHH4#,AAHP45,TAHA4#..VFIRE..(EL,SLS); AAHH4#..ALPHD;AAHP45..ALPHD..EL;AAHH4#..VFIRE..(G,PREM);AAHP45,AGH4#,TAHA4#..G,PREM,SL,X,Z202306
main89341-K0060-C1×2iAAHH4#,AAHP45,AGH4#..PREM; AAHH4#,AAHP45,TAHA4#..VFIRE..(EL,SLS); AAHH4#..ALPHD;AAHP45..ALPHD..EL;AAHH4#..VFIRE..(G,PREM);AAHP45,AGH4#,TAHA4#..G,PREM,SL,X,Z202306
PRECIOUS LEO-BLOND,4Y7
main89341-K0060-P8×2iAAHH4#,AAHP45,AGH4#..PREM; AAHH4#,AAHP45,TAHA4#..VFIRE..(EL,SLS); AAHH4#..ALPHD;AAHP45..ALPHD..EL;AAHH4#..VFIRE..(G,PREM);AAHP45,AGH4#,TAHA4#..G,PREM,SL,X,Z202306
89342BSENSOR, ULTRASONIC, REAR SIDE
main89341-K0070-A7×2iAAHH4#,AAHP45,AGH4#..PREM,Z; AAHH4#..PREM; TAHA4#;AAHH4#,AAHP45..EL,SL,SLS202306
main89341-K0070-C0×2iAAHH4#,AAHP45,AGH4#..PREM,Z; AAHH4#..PREM; TAHA4#;AAHH4#,AAHP45..EL,SL,SLS202306
main89341-K0070-P0×2iAAHH4#,AAHP45,AGH4#..PREM,Z; AAHH4#..PREM; TAHA4#;AAHH4#,AAHP45..EL,SL,SLS202306
10 parts on this diagram · 1 diagram in section
CLEARANCE & BACK SONAR for Toyota ALPHARD/VELLFIRE
This section contains 10 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota ALPHARD/VELLFIRE. Key components include: FRONT BUMPER & BUMPER STAY, REAR BUMPER & BUMPER STAY, CUSHION SET, ULTRASONIC SENSOR, COMPUTER ASSY, CLEARANCE WARNING, SENSOR, ULTRASONIC, FRONT CORNER.
