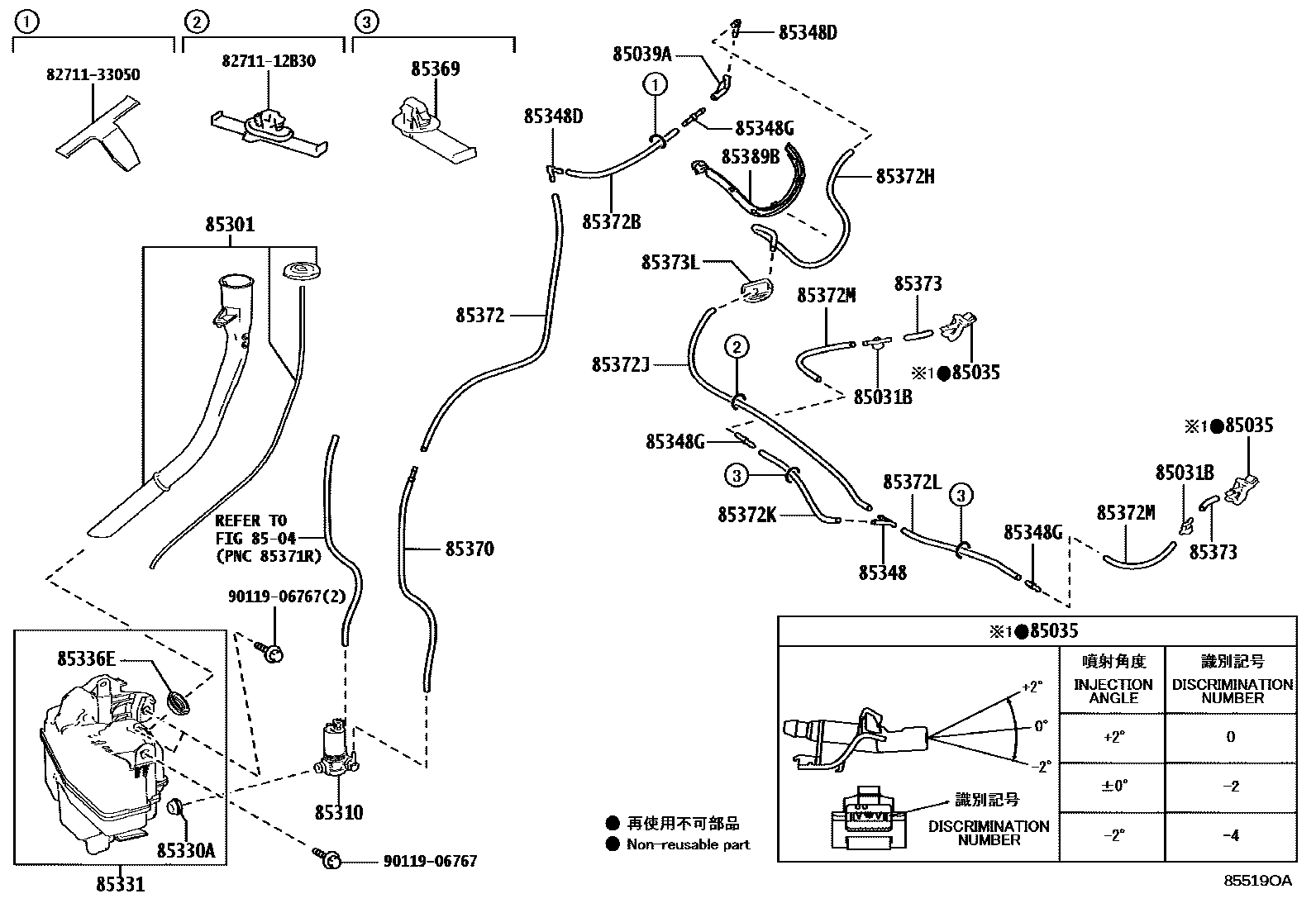

Toyota ALPHARD/VELLFIRE — WINDSHIELD WASHER
85031BVALVE SUB-ASSY, WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE +2
ANGLE -2
85039ATUBE, RUBBER
8504REAR WASHER
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85331JAR SUB-ASSY, WINDSHIELD WASHER
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85369CLAMP
85370HOSE ASSY, WINDSHIELD WASHER
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1000(*H,L=436)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1000(*H,L=165)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1000(*H,L=412)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1000(*H,L=660)
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
L=1000(*H,L=225)
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
L=1000(*H,L=219)
85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
L=100
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=50
85373LGROMMET, WASHER
85389BPROTECTOR, WINDSHIELD WASHER
8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12B30
8271133050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-33050
9011906767
main90119-06767
27 parts on this diagram · 1 diagram in section
WINDSHIELD WASHER for Toyota ALPHARD/VELLFIRE
This section contains 27 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota ALPHARD/VELLFIRE. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, TUBE, RUBBER, REAR WASHER, INLET SUB-ASSY, WASHER.
