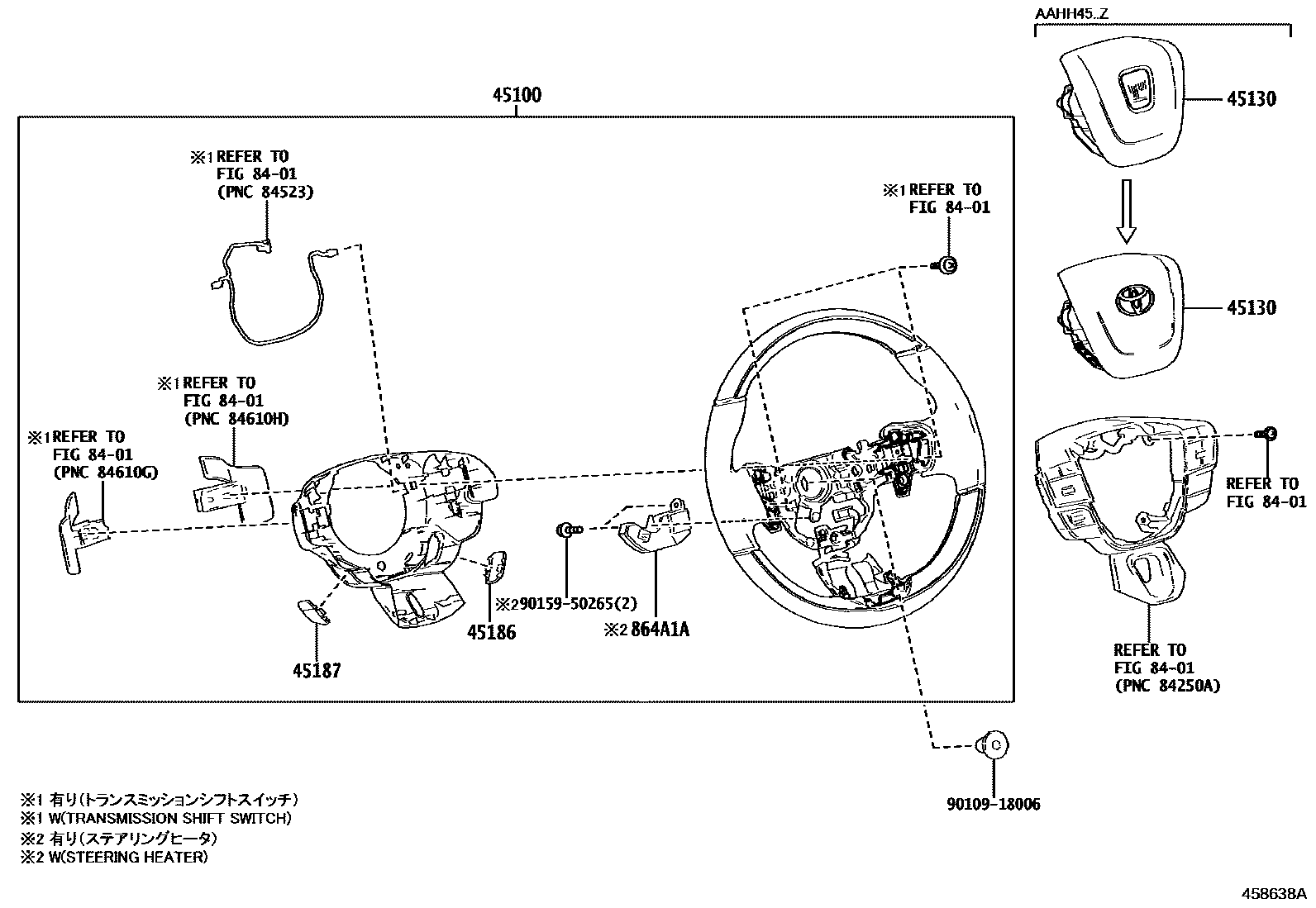

Toyota ALPHARD/VELLFIRE — STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#; 3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#,4#
3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#,4#
main45100-V2080-C3iAAHH45..L..KRE;AAHH4#,TAHA40..T; AAHH45..LHD..GEN; AAHH45..TAIW;AAHH45..RHD..L;AAHH40,TAHA40..L202306
3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#; 3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#,4#; 3-SPOKE,WOOD&LEATHER,BLACK,TRIM4#
3-SPOKE,LEATHER,BLACK,TRIM2#
3-SPOKE,WOOD&LEATHER,BLACK/GRAYISH BROWN/BLACK,TRIM2#,4#; 3-SPOKE,WOOD&LEATHER,CHINA A VIP-HI PACKAGE,BLACK/GRAYISH BROWN/BLACK,TRIM2#,4#; 3-SPOKE,WOOD&LEATHER,CHINA C.V VIP-HI PACKAGE,BLACK/GRAYISH BROWN/BLACK,TRIM2#,4#
3-SPOKE,WOOD&LEATHER,ACTIVE SAFETY PACKAGE- TOYOTA SAFETY SENSE&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,TRIM2#,4#
3-SPOKE,WOOD&LEATHER,CHINA A VIP-HI PACKAGE&ACTIVE SAFETY PACKAGE- TOYOTA SAFETY SENSE&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK/GAYISH BROWN/BLACK,TRIM2#,4#; 3-SPOKE,WOOD&LEATHER,CHINA C.V VIP-HI PACKAGE&ACTIVE SAFETY PACKAGE- TOYOTA SAFETYSENSE&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK/GAYISH BROWN/BLACK,TRIM2#,4#
45130BUTTON ASSY, HORN
main45130-V2010-C0iAAHH45..LHD..GEN; AAHH45..TAIW;AAHH45..V..KRE;AGH40..(L,T)..GEN;AAHH45..RHD..(L,V);AAHH40,AAHP45,TAHA40..L,V,Z; AGH40..G;AAHH4#,TAHA40..T;AAHH45,AGH40..(L,T)..(KRE,MA)202306
BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
45186COVER, STEERING WHEEL, LOWER NO.2
main45186-30200-C0iAAHH45..LHD..GEN; AAHH45..TAIW;AGH40..(L,T)..GEN;AAHH45..RHD..(L,V);AAHH45..LHD..(V,Z);AAHH40,AAHP45,TAHA40..L,V,Z; AGH40..G;AAHH4#,TAHA40..T;AAHH45,AGH40..(L,T)..(KRE,MA)202306
BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
45187COVER, STEERING WHEEL, LOWER NO.3
main45187-30140-C0iAAHH45..LHD..GEN; AAHH45..TAIW;AGH40..(L,T)..GEN;AAHH45..RHD..(L,V);AAHH45..LHD..(V,Z);AAHH40,AAHP45,TAHA40..L,V,Z; AGH40..G;AAHH4#,TAHA40..T;AAHH45,AGH40..(L,T)..(KRE,MA)202306
BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
8401SWITCH & RELAY & COMPUTER
864A1ACOMPUTER, MULTIPLEX NETWORK STEERING
ACTIVE SAFETY PACKAGE- TOYOTA SAFETY SENSE&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST)
9010918006
main90109-18006
9015950265
main90159-50265
8 parts on this diagram · 1 diagram in section
STEERING WHEEL for Toyota ALPHARD/VELLFIRE
This section contains 8 genuine Toyota parts for the STEERING WHEEL system of the Toyota ALPHARD/VELLFIRE. Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, COVER, STEERING WHEEL, LOWER NO.2, COVER, STEERING WHEEL, LOWER NO.3, SWITCH & RELAY & COMPUTER.
