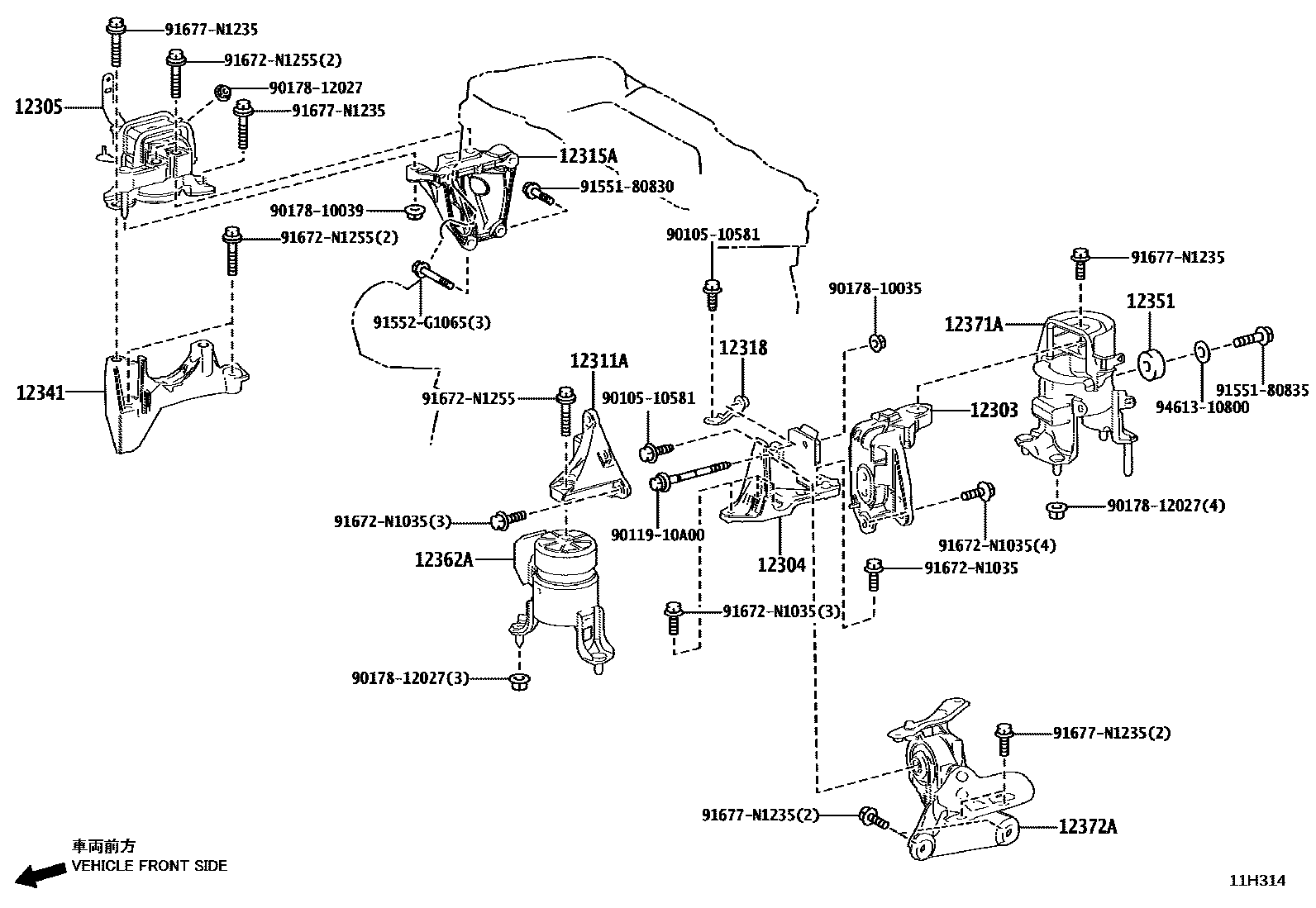

Toyota ALPHARD/VELLFIRE — MOUNTING
12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12304BRACKET SUB-ASSY, ENGINE MOUNTING, LH
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12318STAY, ENGINE MOUNTING, LH
12341SPACER, ENGINE MOUNTING
12351DAMPER, ENGINE MOUNTING
12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362AINSULATOR, ENGINE MOUNTING, FRONT LH
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
9010510581
main90105-10581
9011910A00
main90119-10A00
9017810035
main90178-10035
9017810039
main90178-10039
9017812027
main90178-12027
9155180830
main91551-80830
9155180835
main91551-80835
91552G1065
main91552-G1065
91672N1035
main91672-N1035
91672N1255
main91672-N1255
91677N1235
main91677-N1235
9461310800
main94613-10800
24 parts on this diagram · 3 diagrams in section
MOUNTING for Toyota ALPHARD/VELLFIRE
This section contains 38 genuine Toyota parts for the MOUNTING system of the Toyota ALPHARD/VELLFIRE. Key components include: HANGER, ENGINE, NO.1, BRACKET SUB-ASSY, ENGINE MOUNTING, REAR, BRACKET SUB-ASSY, ENGINE MOUNTING, LH, INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, INSULATOR SUB-ASSY, ENGINE MOUNTING, LH.
