Toyota ALPHARD/VELLFIRE — HORN
86510HORN ASSY, HIGH PITCHED
HONG KONG SPEC; INDONESIA SPEC; MACAU SPEC; SINGAPORE SPEC
VIETNAM SPEC
86510AHORN ASSY, SECURITY
HONG KONG SPEC; INDONESIA SPEC; MACAU SPEC; SINGAPORE SPEC
86520HORN ASSY, LOW PITCHED
HONG KONG SPEC; INDONESIA SPEC; MACAU SPEC; SINGAPORE SPEC
VIETNAM SPEC
86570SPEAKER ASSY, VEHICLE APPROACHING
INDONESIA SPEC; MACAU SPEC
86572CONTROLLER, VEHICLE APPROACHING SPEAKER
main86572-V2020iAAHH40..RHD..(L,Z); AAHH45..RHD..(L,V); AAHH45..RHD;AAHH45..CHI,KRE,TAIW202306-202410
INDONESIA SPEC; MACAU SPEC
main865H2-V2020iAAHH40..RHD..L; AAHH40..T; AAHH40..T;AAHH45..RHD..(L,V); AAHH45..RHD;AAHH40..(T,Z)..GEN;AAHH45..CHI,KRE,TAIW202410
INDONESIA SPEC; MACAU SPEC; SINGAPORE SPEC
MACAU SPEC; SINGAPORE SPEC
9011906A06
main90119-06A06
9011906A64
main90119-06A64
9011908C83
main90119-08C83

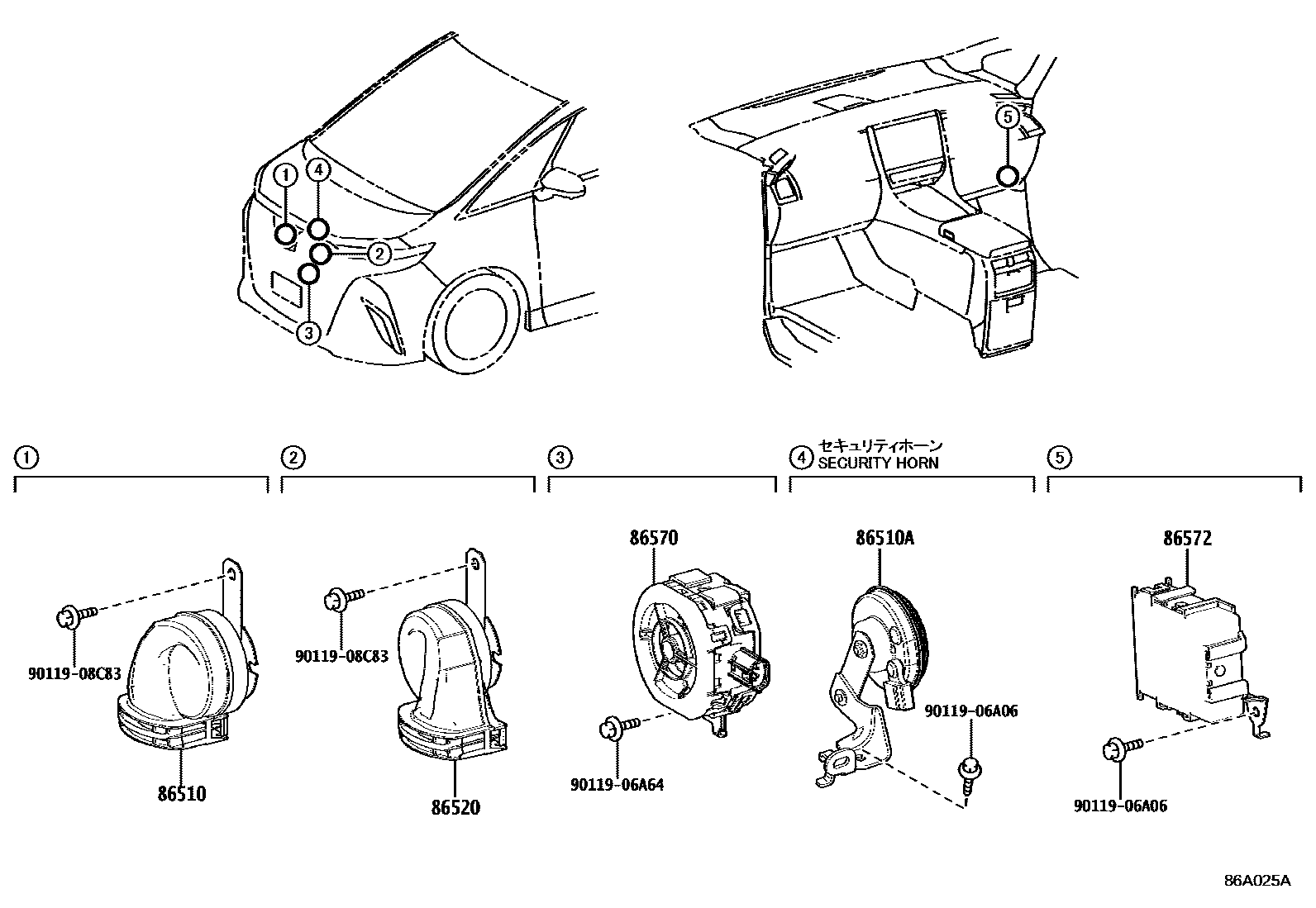

8 parts on this diagram · 1 diagram in section
HORN for Toyota ALPHARD/VELLFIRE
This section contains 8 genuine Toyota parts for the HORN system of the Toyota ALPHARD/VELLFIRE. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, SECURITY, HORN ASSY, LOW PITCHED, SPEAKER ASSY, VEHICLE APPROACHING, CONTROLLER, VEHICLE APPROACHING SPEAKER.
