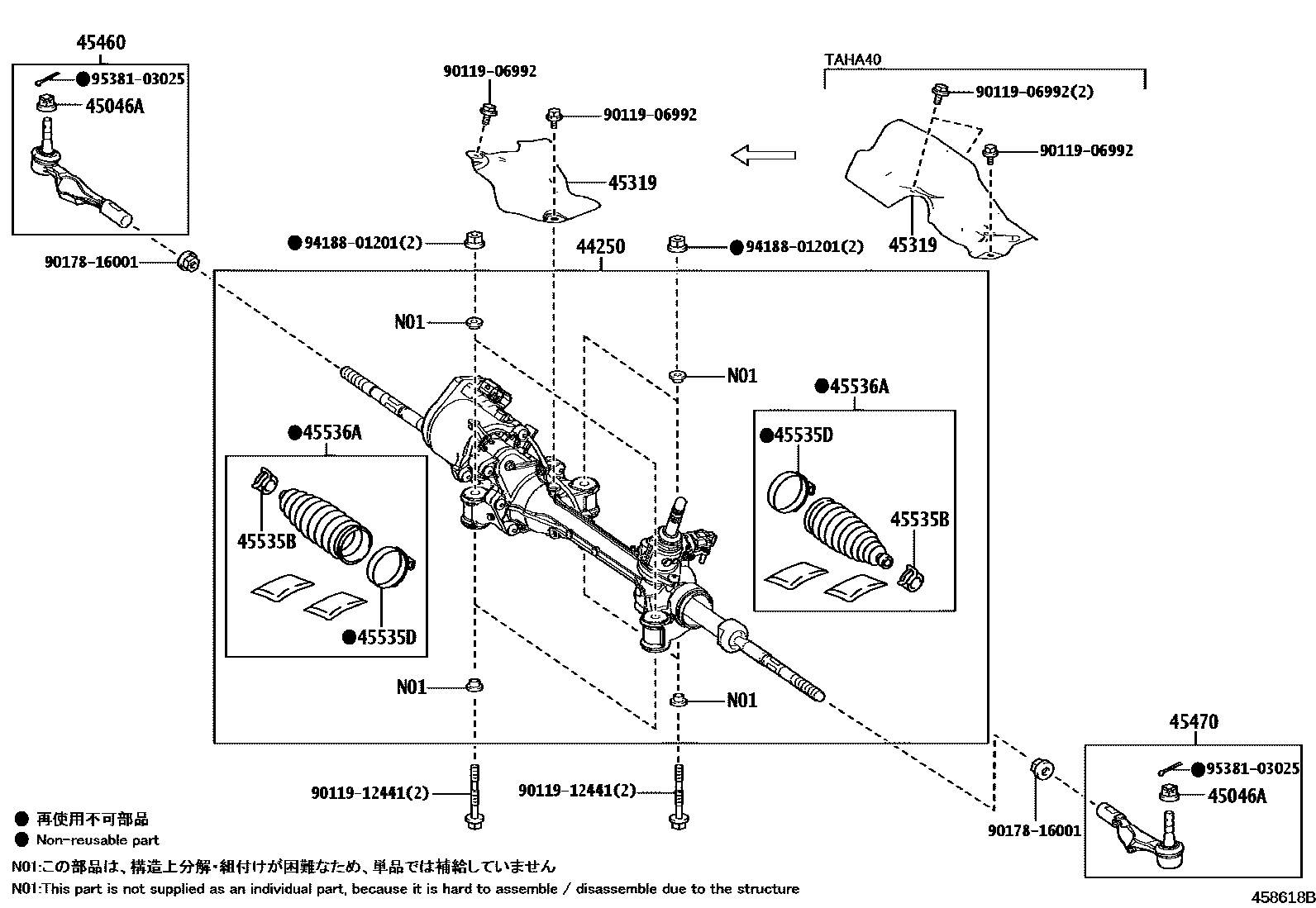

Toyota ALPHARD/VELLFIRE — FRONT STEERING GEAR & LINK
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
*614
*614
45046ANUT, CASTLE(FOR TIE ROD END)
45319INSULATOR, STEERING GEAR HEAT
45460ROD ASSY, TIE, RH
45470ROD ASSY, TIE, LH
45535BCLIP(FOR STEERING RACK BOOT)
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
9011906992
main90119-06992
9011912441
main90119-12441
9017816001
main90178-16001
9418801201
main94188-01201
9538103025
main95381-03025
13 parts on this diagram · 2 diagrams in section
FRONT STEERING GEAR & LINK for Toyota ALPHARD/VELLFIRE
This section contains 13 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota ALPHARD/VELLFIRE. Key components include: GEAR ASSY, POWER STEERING(FOR RACK & PINION), NUT, CASTLE(FOR TIE ROD END), INSULATOR, STEERING GEAR HEAT, ROD ASSY, TIE, RH, ROD ASSY, TIE, LH.
