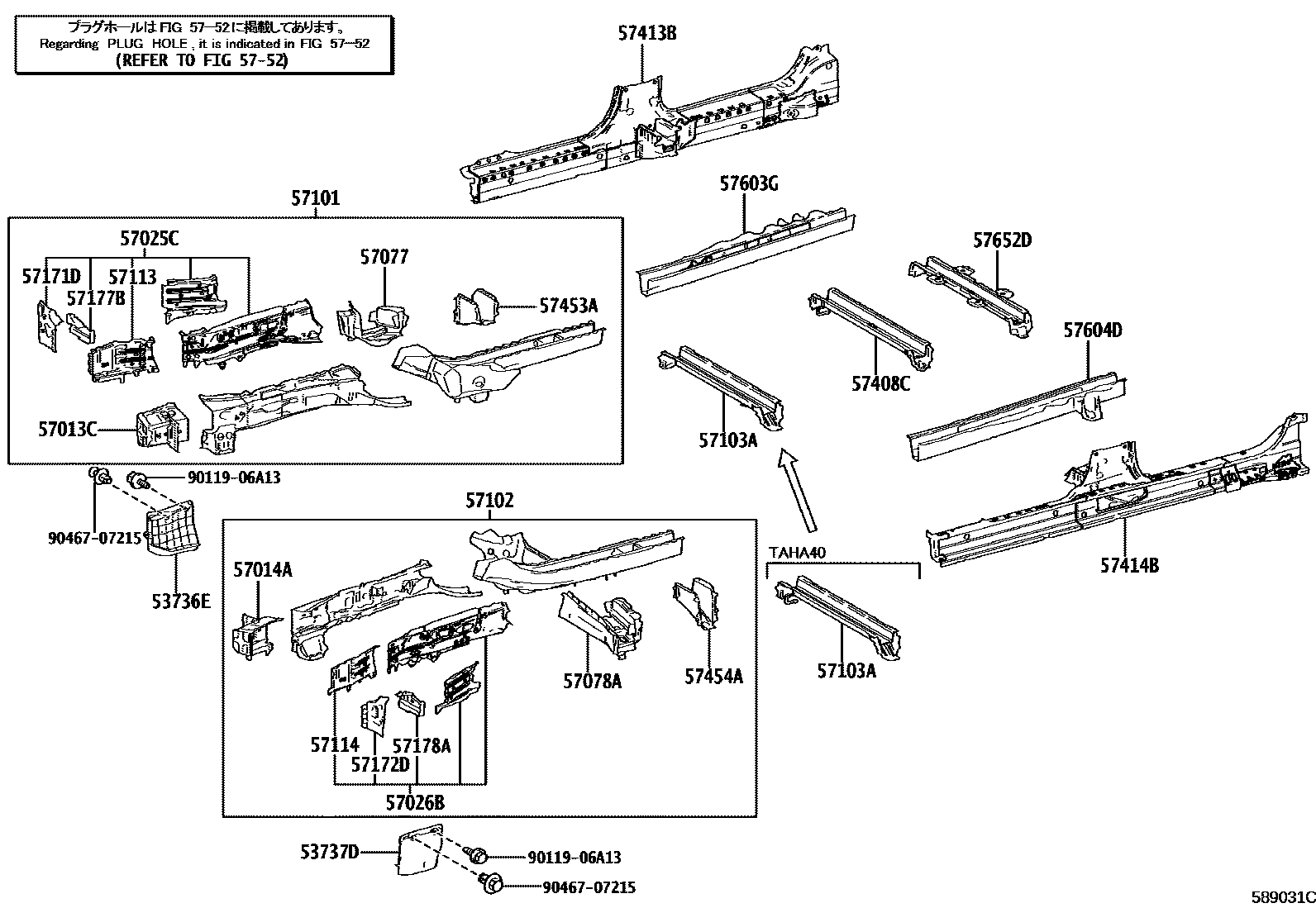

Toyota ALPHARD/VELLFIRE — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
53736ESEAL, FRONT FENDER APRON, RH
53737DSEAL, FRONT FENDER APRON, LH
57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57077BOX SUB-ASSY, TORQUE, FRONT RH
57078ABOX SUB-ASSY, TORQUE, FRONT LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57171DPLATE, FRONT SIDE MEMBER TO FLOOR, RH
57172DPLATE, FRONT SIDE MEMBER TO FLOOR, LH
57177BSEAL, FRONT SIDE MEMBER, RH
57178ASEAL, FRONT SIDE MEMBER, LH
57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS
57413BRAIL, FLOOR SIDE, CENTER RH
STEP & STEP COVER-WITH
STEP & STEP COVER-WITH
57414BRAIL, FLOOR SIDE, CENTER LH
STEP & STEP COVER-WITH
STEP & STEP COVER-WITH
57453AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, RH
57454AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, LH
5752HOLE PLUG
57603GEXTENSION SUB-ASSY, REAR SIDE MEMBER, RH
57604DEXTENSION SUB-ASSY, REAR SIDE MEMBER, LH
57652DMEMBER, REAR FLOOR CROSS, NO.1
9011906A13
main90119-06A13
9046707215
main90467-07215
28 parts on this diagram · 3 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota ALPHARD/VELLFIRE
This section contains 54 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota ALPHARD/VELLFIRE. Key components include: STEP SUB-ASSY, RH, STEP SUB-ASSY, LH, SEAL, FRONT FENDER APRON, RH, SEAL, FRONT FENDER APRON, LH, BRACKET, FRONT PANEL, NO.2.
