Toyota ALPHARD/VELLFIRE — FRONT FENDER APRON & DASH PANEL

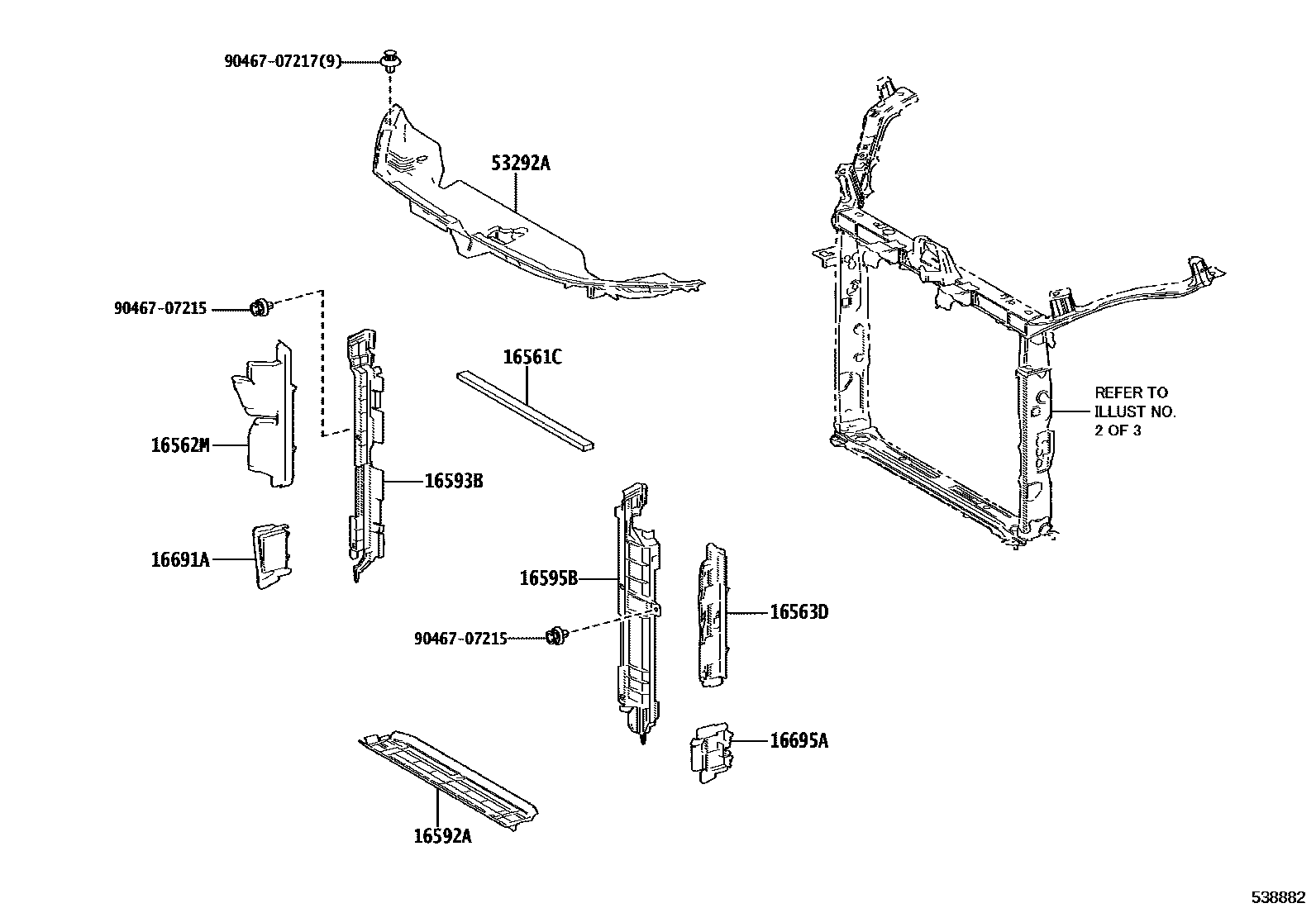

Parts diagram

16561CSEAL, RADIATOR TO SUPPORT, NO.1

main16561-V2010i202306

16562MSEAL, RADIATOR TO SUPPORT, NO.2

main16562-V2010i202306

main16562-V2020i202306

main16562-V2040i202501

16563DSEAL, RADIATOR TO SUPPORT, NO.3

main16563-V2010i202306

main16563-V2020i202306

16592AGUIDE, RADIATOR AIR, NO.3

main16592-V2010i202306

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-V2010i202306-202501

main16593-V2020i202306

main16593-V2030i202501

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-V2010i202306-202501

main16595-V2020i202306

main16595-V2030i202501

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-V2010i202306

main16691-V2040i202306

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-V2010i202306

main16695-V2050i202306

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-V2030i202306

9046707215

main90467-07215

9046707217

main90467-07217

11 parts on this diagram · 4 diagrams in section

FRONT FENDER APRON & DASH PANEL for Toyota ALPHARD/VELLFIRE

This section contains 56 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota ALPHARD/VELLFIRE. Key components include: SEAL, RADIATOR TO SUPPORT, NO.1, SEAL, RADIATOR TO SUPPORT, NO.2, SEAL, RADIATOR TO SUPPORT, NO.3, GUIDE, RADIATOR AIR, NO.3, GUIDE, RADIATOR AIR, NO.1 RH.
