Toyota ALPHARD/VELLFIRE — FRONT DOOR WINDOW REGULATOR & HINGE

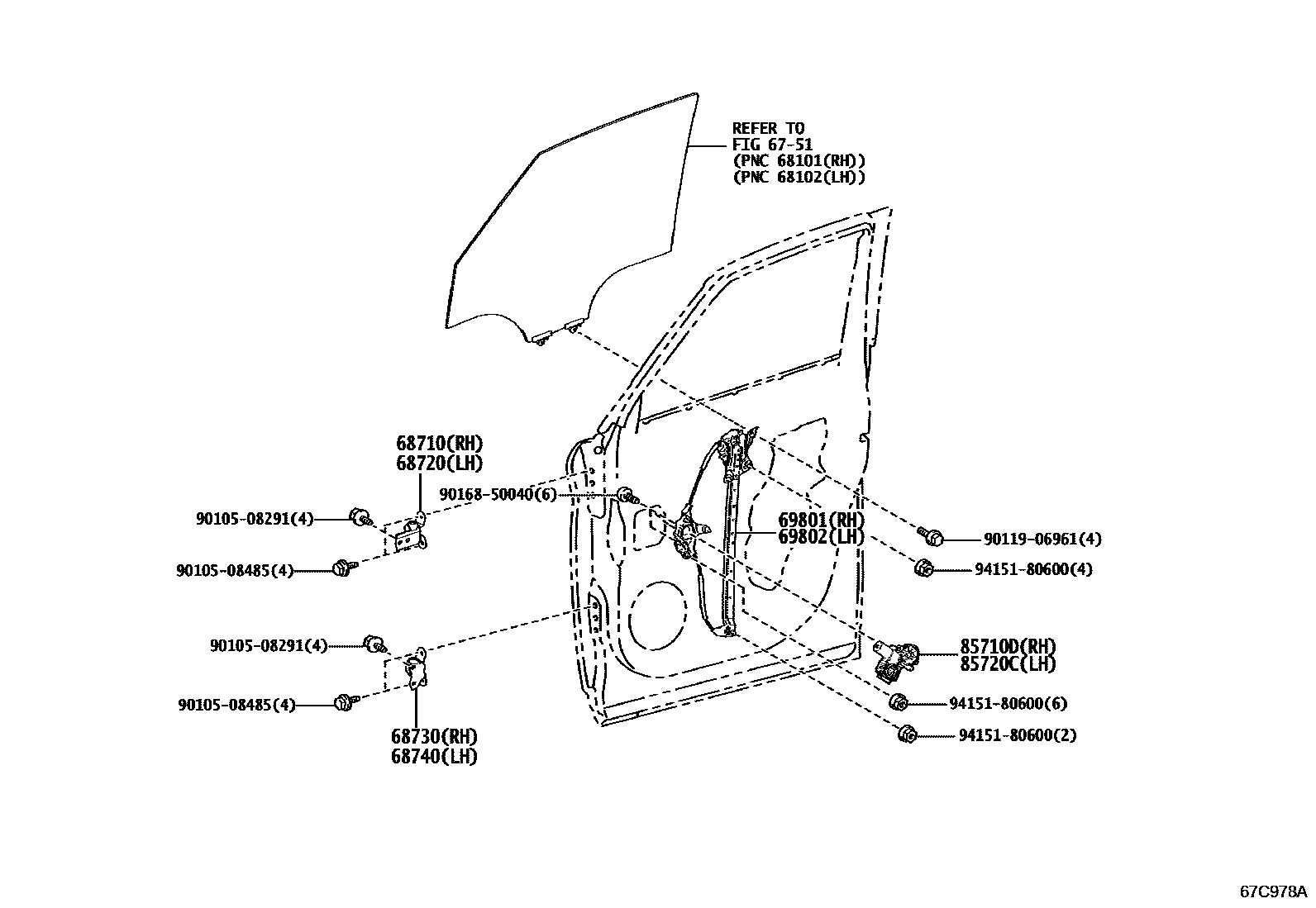

Parts diagram

6751FRONT DOOR PANEL & GLASS

→ Go to FIG 67-51

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-V2010i202306

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-V2010i202306

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120i202306

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120i202306

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-V2010i202306

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-V2010i202306

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-V2010i202306

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-V2010i202306

9010508291

main90105-08291

9010508485

main90105-08485

9011906961

main90119-06961

9016850040

main90168-50040

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota ALPHARD/VELLFIRE

This section contains 14 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota ALPHARD/VELLFIRE. Key components include: FRONT DOOR PANEL & GLASS, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
