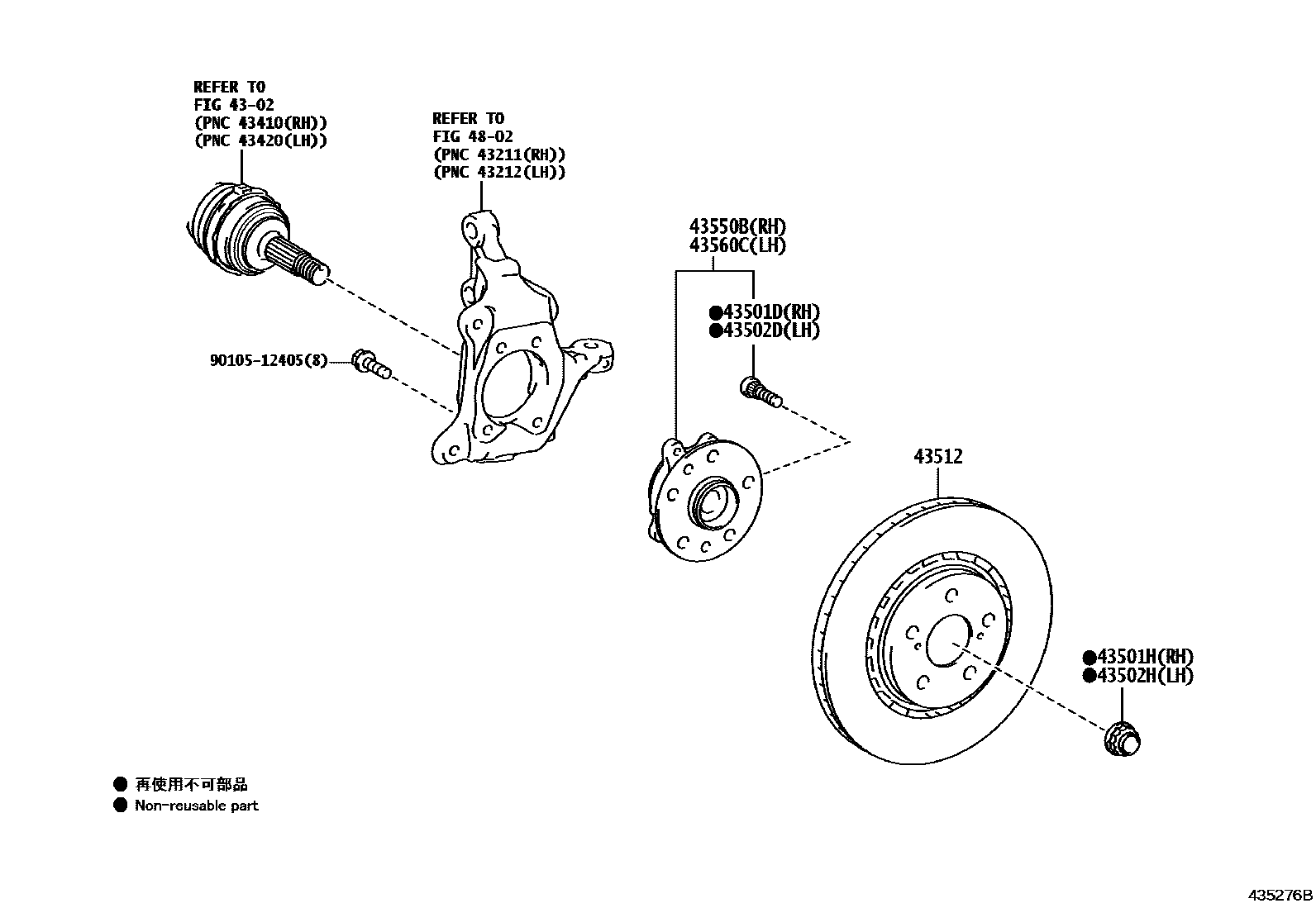

Toyota ALPHARD/VELLFIRE — FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02083×5i202306

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i202306

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02083×5i202306

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i202306

43512DISC, FRONT

main43512-V2010×2i202306

HONG KONG SPEC; INDONESIA SPEC; MACAU SPEC; SINGAPORE SPEC

main43512-V2020×2i202306

ARUBA SPEC; BAHAMA SPEC; BERMUDA SPEC; COSTA RICA SPEC; CURACAO SPEC; DOMINICAN SPEC; GRAND CAYMAN SPEC; GUATEMALA SPEC; PANAMA SPEC; URUGUAY SPEC

43550BHUB & BEARING ASSY, FRONT AXLE W/ABS SENSOR, RH

main43550-V2010i202306

43560CHUB & BEARING ASSY, FRONT AXLE W/ABS SENSOR, LH

main43550-V2010i202306

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010512405

main90105-12405

10 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota ALPHARD/VELLFIRE

This section contains 10 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota ALPHARD/VELLFIRE. Key components include: FRONT DRIVE SHAFT, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), BOLT, HUB (FOR FRONT AXLE LH), NUT (FOR FRONT AXLE SHAFT LH).
