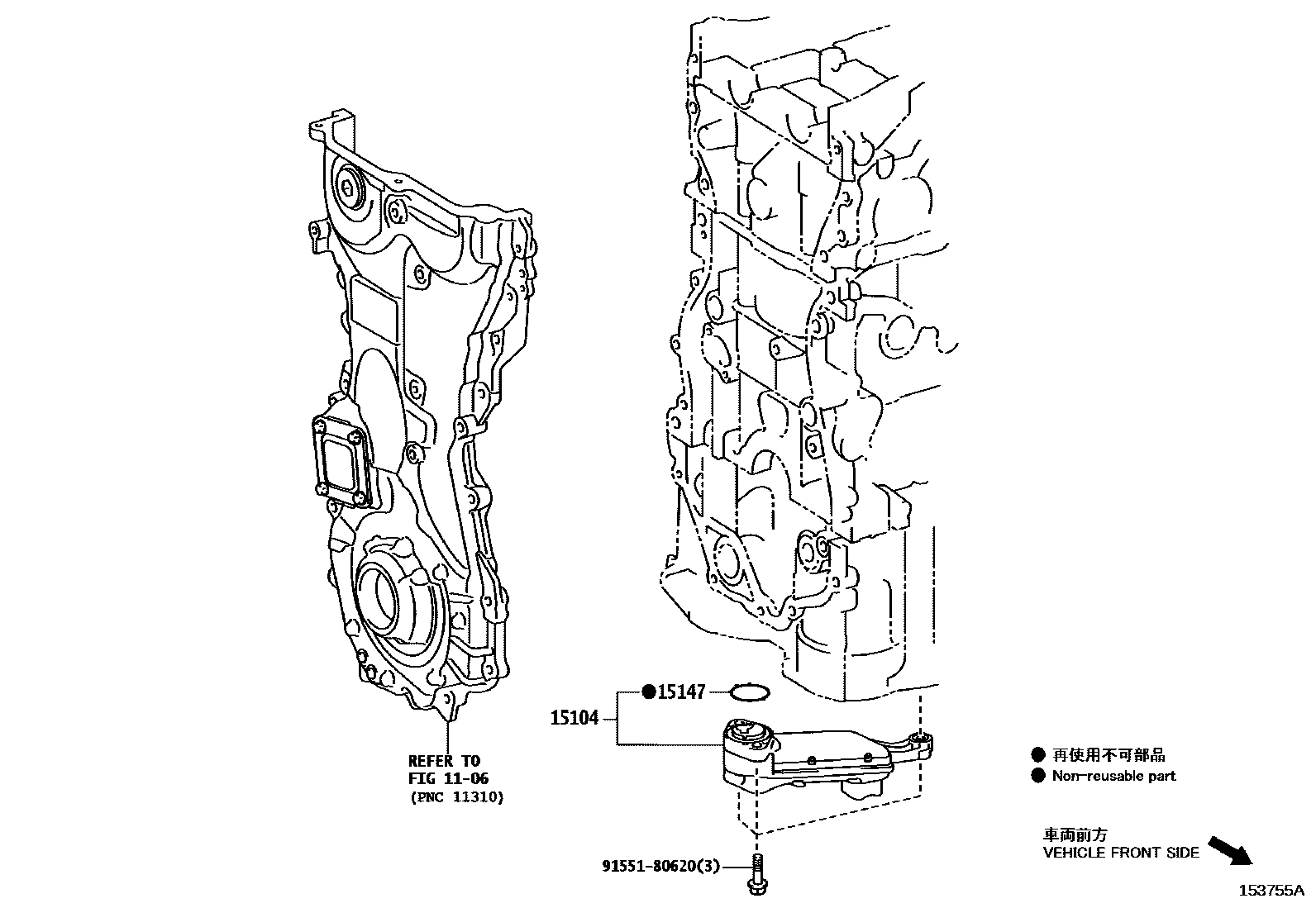

Toyota ALPHARD/VELLFIRE — ENGINE OIL PUMP

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15104STRAINER SUB-ASSY, OIL

main15104-25030i202306

main15104-25040i202306

main15104-36020i202306

15147GASKET, OIL STRAINER

main15147-25010i202306

main15147-25030i202306

main15147-36010i202306

9155180620

main91551-80620

4 parts on this diagram · 3 diagrams in section

ENGINE OIL PUMP for Toyota ALPHARD/VELLFIRE

This section contains 15 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota ALPHARD/VELLFIRE. Key components include: TIMING GEAR COVER & REAR END PLATE, CRANKSHAFT & PISTON, CHAIN SUB-ASSY, OIL PUMP DRIVE, PLATE, CHAIN TENSIONER, SPRING, CHAIN DAMPER.
