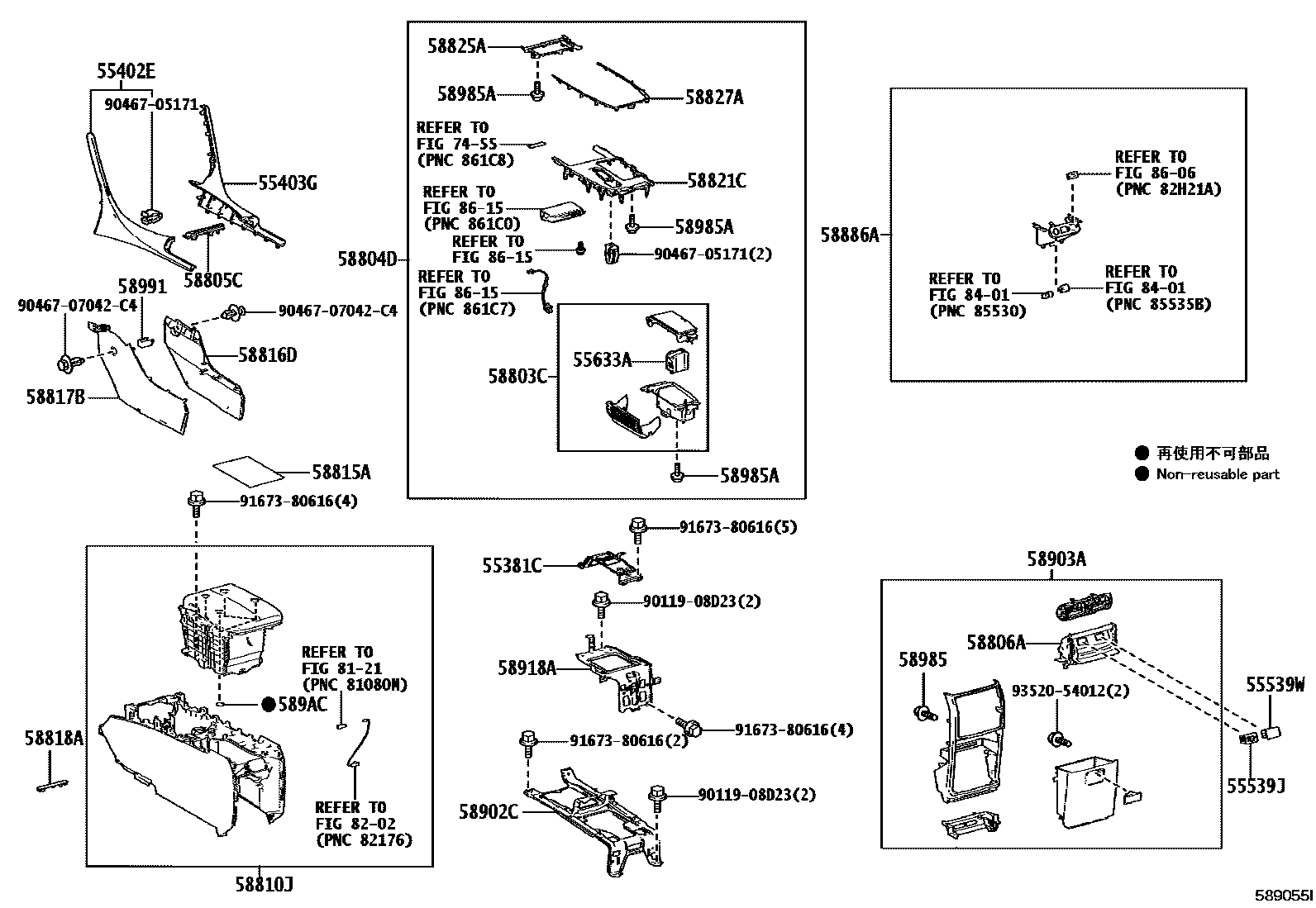

Toyota ALPHARD/VELLFIRE — CONSOLE BOX & BRACKET
55381CBRACKET, FINISH PANEL MOUNTING, NO.1
55402EPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.1
BLACK,TRIM2#
BLACK,TRIM2#
SUNSET BROWN,TRIM41
SUNSET BROWN,TRIM4#
SUNSET BROWN,TRIM40
BLACK,TRIM2#
BLACK,TRIM2#
SUNSET BROWN,TRIM4#
SUNSET BROWN,TRIM41
SUNSET BROWN,TRIM4#
SUNSET BROWN,TRIM40
55403GPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.2
BLACK,TRIM2#
BLACK,TRIM2#
SUNSET BROWN,TRIM4#
SUNSET BROWN,TRIM41
SUNSET BROWN,TRIM40
BLACK,TRIM2#
BLACK,TRIM2#
SUNSET BROWN,TRIM41
SUNSET BROWN,TRIM4#
SUNSET BROWN,TRIM40
SUNSET BROWN,TRIM4#
55539JCOVER, SPARE SWITCH HOLE
AC INVERTER OUTPUT-220V 100W&TELEVISION & DVD PLAYER-WITH(REMOTE CONTROL)
COSTA RICA SPEC&AC INVERTER OUTPUT-WITHOUT&TELEVISION & DVD PLAYER-WITH
ARUBA SPEC&AC INVERTER OUTPUT-WITHOUT&TELEVISION & DVD PLAYER-WITH
CURACAO SPEC&AC INVERTER OUTPUT-WITHOUT&TELEVISION & DVD PLAYER-WITH
BAHAMA SPEC&AC INVERTER OUTPUT-WITHOUT&TELEVISION & DVD PLAYER-WITH
AC INVERTER OUTPUT-220V 100W
TELEVISION & DVD PLAYER-WITH(REMOTE CONTROL)
TELEVISION & DVD PLAYER-WITH
THAILAND SPEC&AC INVERTER OUTPUT-WITHOUT&TELEVISION & DVD PLAYER-WITH
AC INVERTER OUTPUT-WITHOUT&TELEVISION & DVD PLAYER-WITH
GUATEMALA SPEC&AC INVERTER OUTPUT-WITHOUT&TELEVISION & DVD PLAYER-WITH
55539WCOVER, SPARE SWITCH HOLE
AC INVERTER OUTPUT-220V 100W
AC INVERTER OUTPUT-220V 1500W
AC INVERTER OUTPUT-WITHOUT
55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
SILVER,TRIM2#
BRONZE,TRIM4#
BRONZE,TRIM2#
BRONZE,TRIM2#,4#
SILVER,TRIM2#
BRONZE,TRIM4#
BRONZE,TRIM2#
BRONZE,TRIM2#,4#
BRONZE METALLIC,TRIM2#
58804DPANEL SUB-ASSY, CONSOLE, UPPER FRONT
BRONZE,TRIM2#,4#
BRONZE,TRIM2#
SILVER,TRIM2#
BRONZE,TRIM4#
BRONZE,TRIM2#
BRONZE,TRIM2#,4#
BRONZE METALLIC,TRIM2#
SILVER SPUTTERING,TRIM2#
BRONZE SPUTTERING,TRIM2#,4#
BRONZE SPUTTERING,TRIM4#
BRONZE SPUTTERING,TRIM2#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
BLACK,TRIM2#
BLACK,TRIM2#
SUNSET BROWN,TRIM4#
SUNSET BROWN,TRIM41
SUNSET BROWN,TRIM4#
SUNSET BROWN,TRIM40
58806APOCKET SUB-ASSY, CONSOLE BOX
BRONZE METALLIC,TRIM2#
BRONZE SPUTTERING,TRIM2#,4#
AC INVERTER OUTPUT-WITHOUT,BRONZE SPUTTERING,TRIM2#,4#
BRONZE SPUTTERING,TRIM2#
SILVER SPUTTERING,TRIM2#
AC INVERTER OUTPUT-220V 1500W,BRONZE SPUTTERING,TRIM2#,4#
AC INVERTER OUTPUT-220V 1500W&TELEVISION & DVD PLAYER-WITH,BRONZE SPUTTERING,TRIM2#
AC INVERTER OUTPUT-220V 1500W&TELEVISION & DVD PLAYER-WITH,BRONZE SPUTTERING,TRIM2#,4#
AC INVERTER OUTPUT-WITHOUT&TELEVISION & DVD PLAYER-WITH,BRONZE SPUTTERING,TRIM2#,4#
TELEVISION & DVD PLAYER-WITH(REMOTE CONTROL),BRONZE SPUTTERING,TRIM2#
TELEVISION & DVD PLAYER-WITH(REMOTE CONTROL),BRONZE SPUTTERING,TRIM2#,4#
TELEVISION & DVD PLAYER-WITH,BRONZE SPUTTERING,TRIM2#
TELEVISION & DVD PLAYER-WITH,BRONZE SPUTTERING,TRIM2#,4#
BRONZE SPUTTERING,TRIM2#
BRONZE SPUTTERING,TRIM4#
BRONZE SPUTTERING,TRIM2#,4#
AC INVERTER OUTPUT-220V 100W,BRONZE SPUTTERING,TRIM2#
AC INVERTER OUTPUT-220V 100W,BRONZE SPUTTERING,TRIM2#,4#
AC INVERTER OUTPUT-220V 100W&TELEVISION & DVD PLAYER-WITH(REMOTE CONTROL),BRONZE SPUTTERING,TRIM2#
AC INVERTER OUTPUT-220V 100W&TELEVISION & DVD PLAYER-WITH(REMOTE CONTROL),BRONZE SPUTTERING,TRIM2#,4#
AC INVERTER OUTPUT-220V 100W&TELEVISION & DVD PLAYER-WITH,BRONZE SPUTTERING,TRIM2#
AC INVERTER OUTPUT-220V 100W&TELEVISION & DVD PLAYER-WITH,BRONZE SPUTTERING,TRIM2#,4#
AC INVERTER OUTPUT-220V 1500W,BRONZE SPUTTERING,TRIM2#
58810JBOX ASSY, CONSOLE
BLACK,TRIM2#
DK.SEPIA,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#
DK.SEPIA,TRIM4#
BLACK,TRIM2#
DK.SEPIA,TRIM41
DK.SEPIA,TRIM4#
SUNSET BROWN,TRIM40
BLACK,TRIM2#
DK.SEPIA,TRIM41
SUNSET BROWN,TRIM4#
SUNSET BROWN,TRIM40
58815ACARPET, CONSOLE BOX
58816DINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM2#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,4#
BLACK,TRIM2#,4#
58817BINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,4#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
58818ACOVER, CONSOLE BOX, FR
58821CPANEL, CONSOLE, UPPER
58825APOCKET, CONSOLE BOX
58827AGARNISH, CONSOLE BOX POCKET
SILVER SPUTTERING,TRIM2#
BRONZE SPUTTERING,TRIM2#
BRONZE SPUTTERING,TRIM2#,4#
BRONZE SPUTTERING,TRIM4#
BRONZE METALLIC,TRIM2#
58886ACOVER, EQUIPMENT SET PANEL
58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58903APANEL SUB-ASSY, CONSOLE REAR END
BRONZE METALLIC,TRIM2#
AC INVERTER OUTPUT-WITHOUT,BRONZE SPUTTERING,TRIM2#,4#
BRONZE SPUTTERING,TRIM2#
BRONZE SPUTTERING,TRIM2#,4#
TELEVISION & DVD PLAYER-WITH,BRONZE SPUTTERING,TRIM2#
TELEVISION & DVD PLAYER-WITH,BRONZE SPUTTERING,TRIM2#,4#
BRONZE SPUTTERING,TRIM4#
BRONZE SPUTTERING,TRIM2#
BRONZE SPUTTERING,TRIM2#,4#
AC INVERTER OUTPUT-220V 100W,BRONZE SPUTTERING,TRIM2#
AC INVERTER OUTPUT-220V 100W,BRONZE SPUTTERING,TRIM2#,4#
AC INVERTER OUTPUT-220V 100W&TELEVISION & DVD PLAYER-WITH(REMOTE CONTROL),BRONZE SPUTTERING,TRIM2#
AC INVERTER OUTPUT-220V 100W&TELEVISION & DVD PLAYER-WITH(REMOTE CONTROL),BRONZE SPUTTERING,TRIM2#,4#
AC INVERTER OUTPUT-220V 100W&TELEVISION & DVD PLAYER-WITH,BRONZE SPUTTERING,TRIM2#
AC INVERTER OUTPUT-220V 100W&TELEVISION & DVD PLAYER-WITH,BRONZE SPUTTERING,TRIM2#,4#
AC INVERTER OUTPUT-220V 1500W,BRONZE SPUTTERING,TRIM2#
AC INVERTER OUTPUT-220V 1500W,BRONZE SPUTTERING,TRIM2#,4#
AC INVERTER OUTPUT-220V 1500W&TELEVISION & DVD PLAYER-WITH,BRONZE SPUTTERING,TRIM2#
AC INVERTER OUTPUT-220V 1500W&TELEVISION & DVD PLAYER-WITH,BRONZE SPUTTERING,TRIM2#,4#
AC INVERTER OUTPUT-WITHOUT&TELEVISION & DVD PLAYER-WITH,BRONZE SPUTTERING,TRIM2#,4#
TELEVISION & DVD PLAYER-WITH(REMOTE CONTROL),BRONZE SPUTTERING,TRIM2#
TELEVISION & DVD PLAYER-WITH(REMOTE CONTROL),BRONZE SPUTTERING,TRIM2#,4#
SILVER SPUTTERING,TRIM2#
BRONZE SPUTTERING,TRIM4#
58918ABRACKET, BOX SUPPORT
58985RETAINER, CONSOLE BOX
58985ARETAINER, CONSOLE BOX, NO.2
58991BRACKET, CONSOLE BOX MOUNTING, UPPER
589ACPLUG, REAR SEAT CONSOLE TABLE, NO.3
7455CAUTION PLATE
8121INTERIOR LAMP
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
8606CAMERA & REAR MONITOR DISPLAY
8615TELEPHONE & MAYDAY
9011908D23
main90119-08D23
9046705171
main90467-05171
9046707042C4
main90467-07042C4
9167380616
main91673-80616
9352054012
main93520-54012
37 parts on this diagram · 2 diagrams in section
CONSOLE BOX & BRACKET for Toyota ALPHARD/VELLFIRE
This section contains 39 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota ALPHARD/VELLFIRE. Key components include: BRACKET, FINISH PANEL MOUNTING, NO.1, PAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.1, PAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.2, COVER, SPARE SWITCH HOLE.
