Toyota ALPHARD/VELLFIRE — ABS & VSC

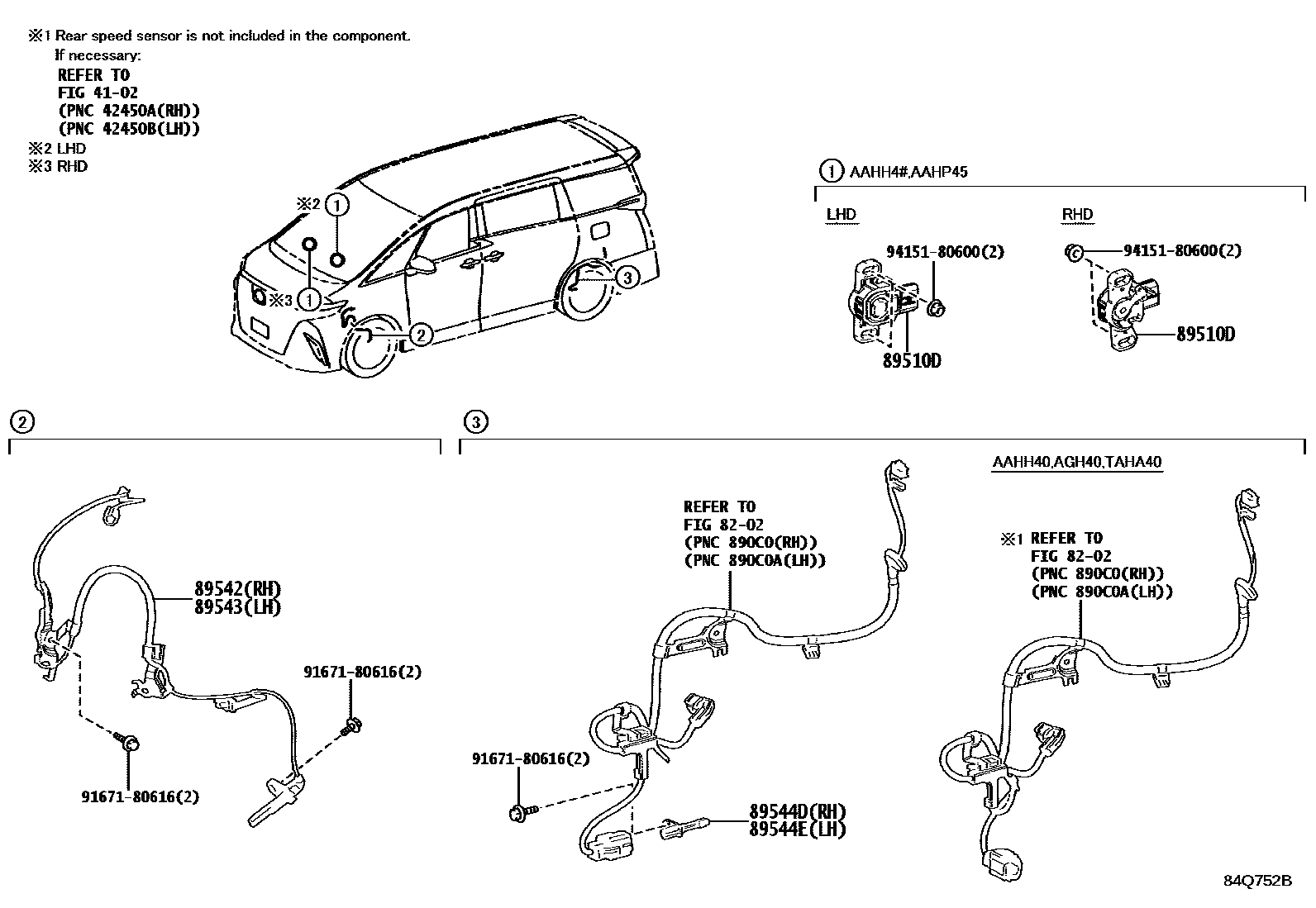

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42020i202306

89542SENSOR, SPEED, FRONT RH

main89542-V2010i202306

89543SENSOR, SPEED, FRONT LH

main89543-V2010i202306

89544DSENSOR, SKID CONTROL, REAR RH

main89544-48051i202306

89544ESENSOR, SKID CONTROL, REAR LH

main89544-48051i202306

9167180616

main91671-80616

9415180600

main94151-80600

9 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota ALPHARD/VELLFIRE

This section contains 9 genuine Toyota parts for the ABS & VSC system of the Toyota ALPHARD/VELLFIRE. Key components include: REAR AXLE SHAFT & HUB, WIRING & CLAMP, SENSOR ASSY, BRAKE PEDAL STROKE, SENSOR, SPEED, FRONT RH, SENSOR, SPEED, FRONT LH.
