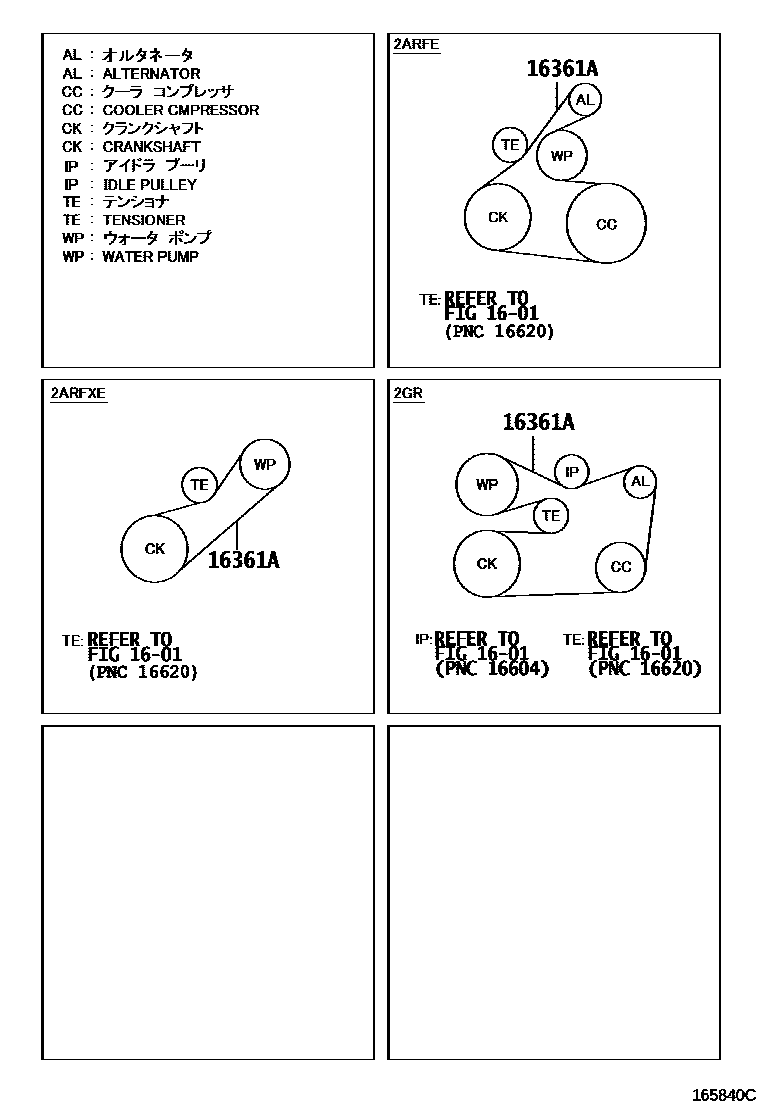

Toyota ALPHARD/VELLFIRE/HV — V-BELT

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02721i202001

main90916-02728i202001-202104

main90916-02732i202001

main99367-C1550i201501-201610

main99367-K1550i201611-201801

2 parts on this diagram · 1 diagram in section

V-BELT for Toyota ALPHARD/VELLFIRE/HV

This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
