Toyota ALPHARD/VELLFIRE/HV — SIDE WINDOW
62110AWINDOW ASSY, FRONT SIDE FIX, RH
62120BWINDOW ASSY, FRONT SIDE FIX, LH
62710AWINDOW ASSY, QUARTER, RH
main62710-58160supersedes 62710-58150iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201501-201801
main62710-58250supersedes 62710-58240iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,ZG,ZR)202001-202104
62720AWINDOW ASSY, QUARTER, LH
main62720-58260supersedes 62720-58250iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201501-201801
main62720-58280supersedes 62720-58250iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X)202001

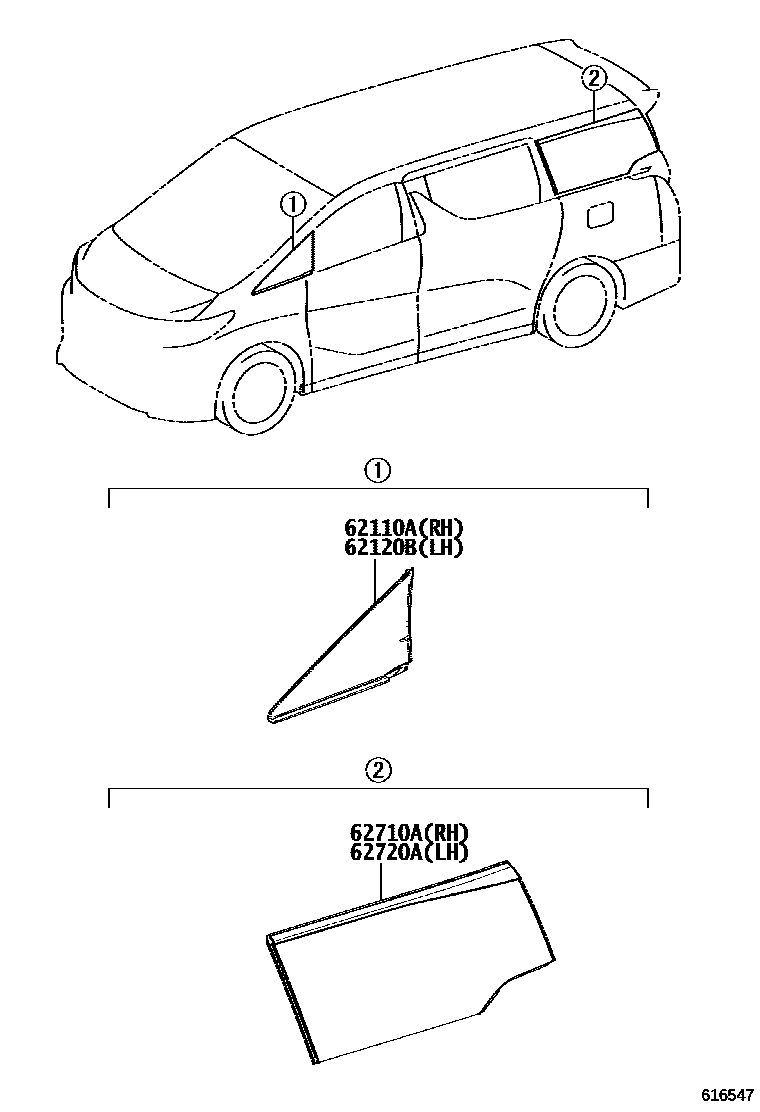

4 parts on this diagram · 1 diagram in section
SIDE WINDOW for Toyota ALPHARD/VELLFIRE/HV
This section contains 4 genuine Toyota parts for the SIDE WINDOW system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: WINDOW ASSY, FRONT SIDE FIX, RH, WINDOW ASSY, FRONT SIDE FIX, LH, WINDOW ASSY, QUARTER, RH, WINDOW ASSY, QUARTER, LH.
