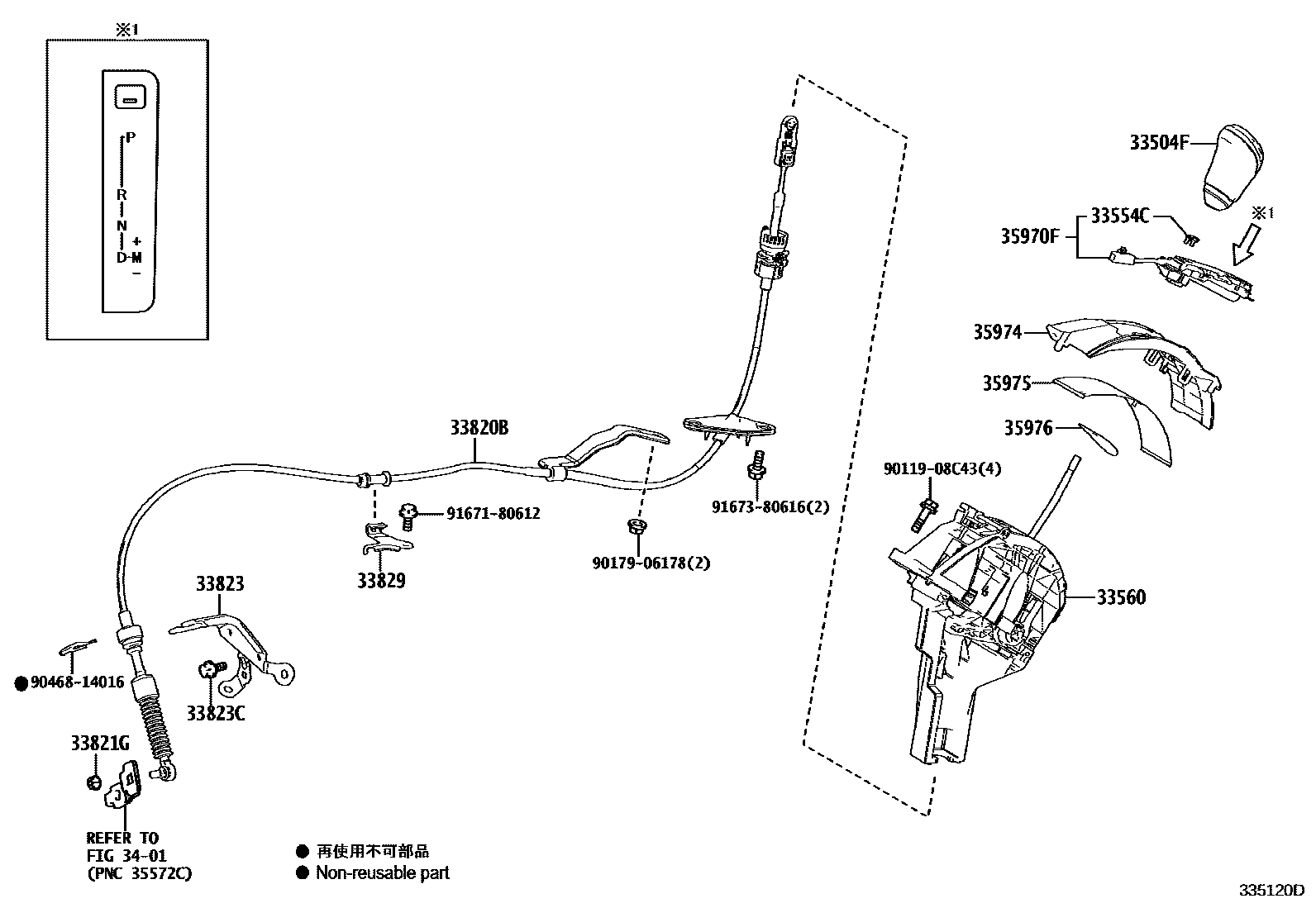

Toyota ALPHARD/VELLFIRE/HV — SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK / DARK GRAY,TRIM2#
BLACK / DARK BRONZE,TRIM0#,2#
BLAK / DARK BROWN,TRIM0#
BLACK/METAL WOOD,TRIM2#
BLACK/SILVER WOOD,TRIM2#
BLACK/BROWN WOOD,TRIM0#,2#
BLACK/METAL BROWN WOOD,TRIM0#
BLACK/GOLD SUNBURST WOOD,TRIM21
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33560UNIT ASSY, SHIFT LOCK CONTROL
33820BCABLE ASSY, TRANSMISSION CONTROL
33821GNUT (FOR TRANSMISSION CONTROL CABLE)
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
33829SUPPORT, TRANSMISSION CONTROL CABLE
3401TRANSAXLE ASSY(CVT)
35970FHOUSING ASSY, POSITION INDICATOR
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
9011908C43
main90119-08C43
9017906178
main90179-06178
9046814016
main90468-14016
9167180612
main91671-80612
9167380616
main91673-80616
18 parts on this diagram · 5 diagrams in section
SHIFT LEVER & RETAINER for Toyota ALPHARD/VELLFIRE/HV
This section contains 21 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: KNOB SUB-ASSY, SHIFT LEVER, COVER, SHIFT LOCK RELEASE BUTTON, UNIT ASSY, SHIFT LOCK CONTROL, CABLE ASSY, TRANSMISSION CONTROL, NUT (FOR TRANSMISSION CONTROL CABLE).
