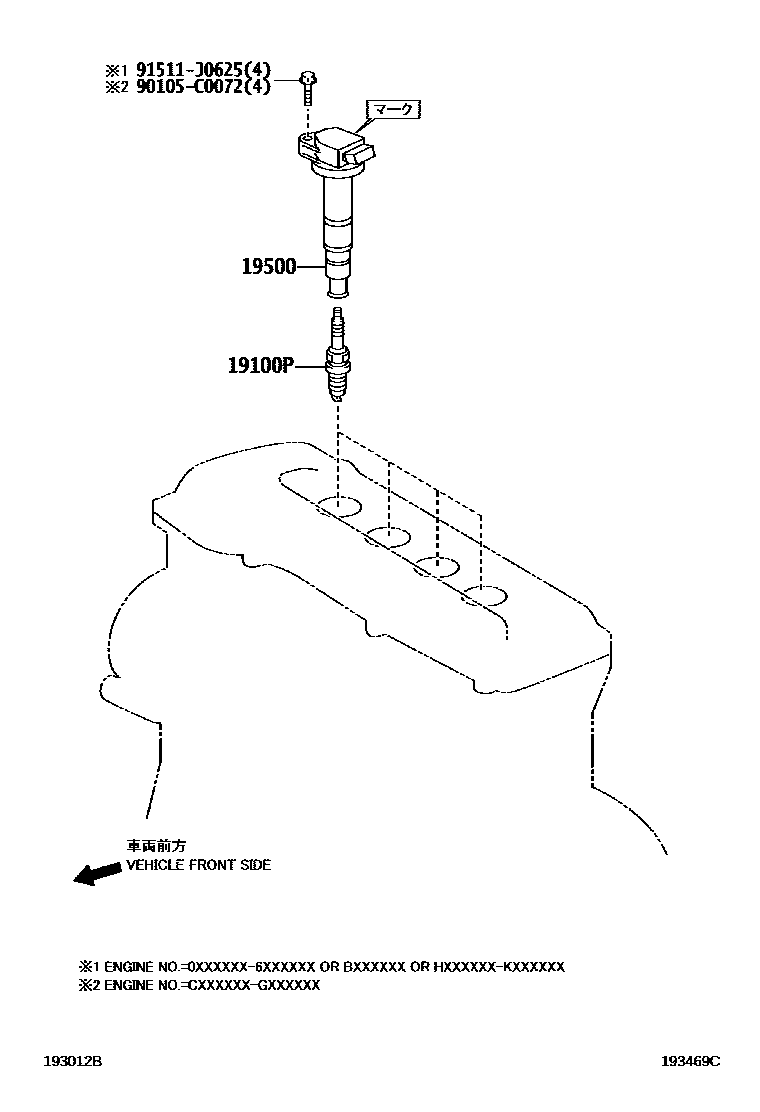

Toyota ALPHARD/VELLFIRE/HV — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01237×4i201110-201206

main90919-01240×4i201206-201501

main90919-01247×6i200804-201110

main90919-T1007×4supersedes 90919-01237i200804-201110

19500COIL ASSY, IGNITION

main90919-02251×6i200804-200812

main90919-02255×6i201110

main90919-02266×4i201110

main90919-02244×4supersedes 90919-02266i200804-201009

main90919-02260×4supersedes 90919-02266i201012-201110

main90919-C2002×4supersedes 90919-02266i200903-201012

main90919-C2006×4supersedes 90919-02266i201012-201110

main90919-T2005×4supersedes 90919-02266i200804-200903

90105C0072

main90105-C0072

91511J0625

main91511-J0625

4 parts on this diagram · 2 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota ALPHARD/VELLFIRE/HV

This section contains 5 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
