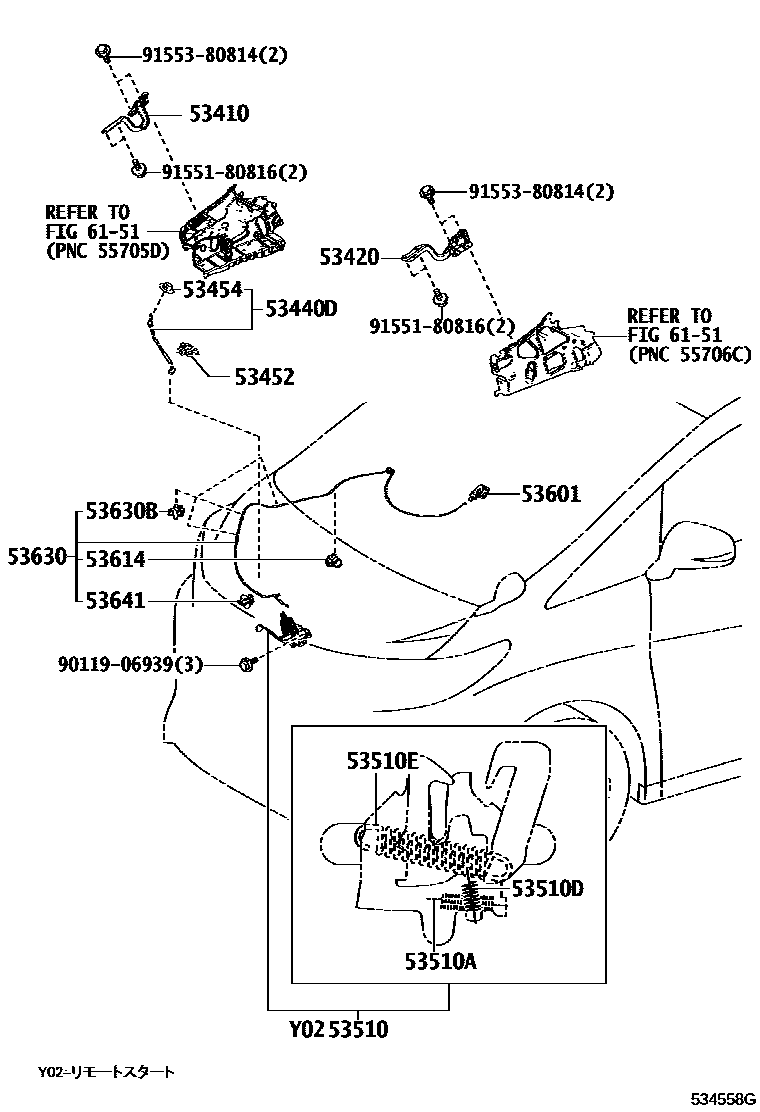

Toyota ALPHARD/VELLFIRE/HV — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440DSUPPORT ASSY, HOOD
53452HOLDER, HOOD STAY
53454CLIP, HOOD SUPPORT ROD
53510LOCK ASSY, HOOD
main53510-58070iAGH30..07S..S; AGH30..07S..S;AYH30,GGH3#..G,GF,SA,SR; AGH30..ALPHD; AYH30..ALPHD..EL;AGH35,GGH3#..ALPHD..(EL,G,S,X)201501-201801
main53510-58090iAGH30..07S..Z; AGH30..07S..Z;AYH30,GGH3#..V,VL,ZA,ZR; AGH30..VFIRE; AYH30..VFIRE..EL;AGH35,GGH3#..VFIRE..(EL,V,X,Z)201501-201801
53510ASPRING, TENSION(FOR HOOD LOCK)
53510DSPRING, TENSION(FOR HOOD LOCK)
53510ESPRING, TENSION(FOR HOOD LOCK)
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM0#,2#
main53601-52010-C1iAGH3#,AYH30,GGH3#..G,GF,V,VL,X; AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR; AYH30,GGH3#..EL201612-201801
BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM2#
53614CLAMP, HOOD LOCK CONTROL CABLE
53630CABLE ASSY, HOOD LOCK CONTROL
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
53641CLAMP, HOOD LOCK CONTROL WIRE
6151SIDE MEMBER
9011906939
main90119-06939
9155180816
main91551-80816
9155380814
main91553-80814
18 parts on this diagram · 1 diagram in section
HOOD LOCK & HINGE for Toyota ALPHARD/VELLFIRE/HV
This section contains 18 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, SUPPORT ASSY, HOOD, HOLDER, HOOD STAY, CLIP, HOOD SUPPORT ROD.
