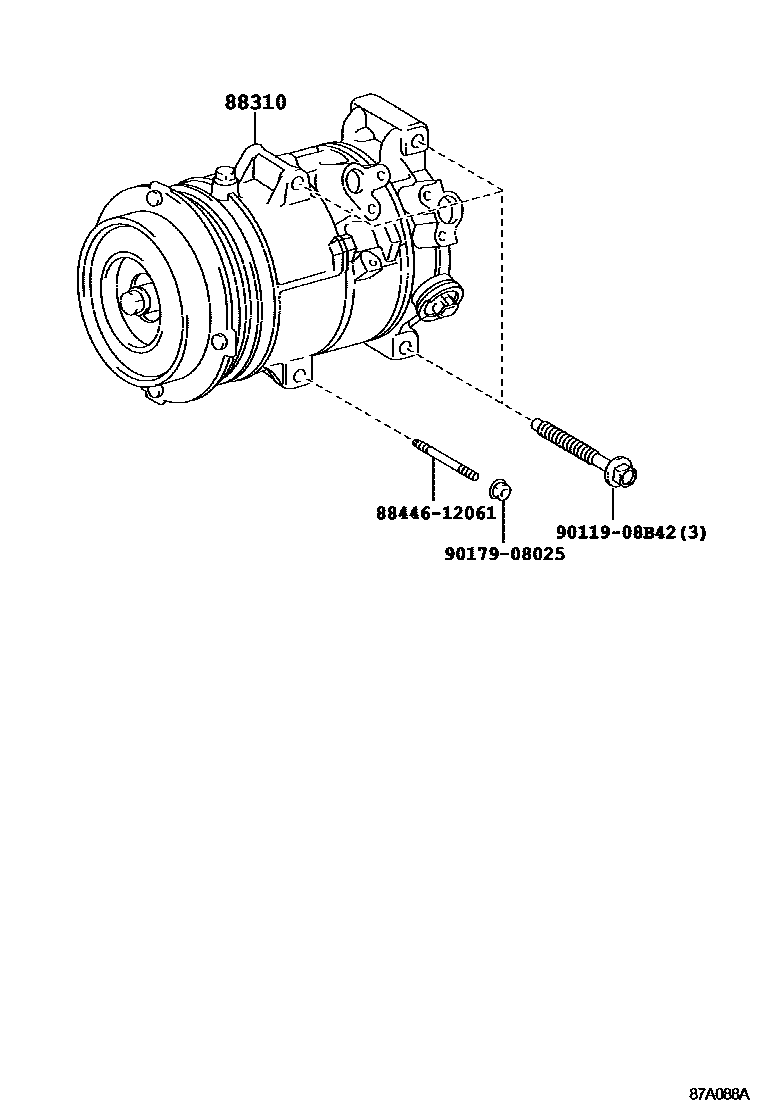

Toyota ALPHARD/VELLFIRE/HV — HEATING & AIR CONDITIONING - COMPRESSOR
88310COMPRESSOR ASSY, W/PULLEY
8844612061BOLT, IDLE PULLEY
main88446-12061
9011908B42
main90119-08B42
9017908025
main90179-08025
4 parts on this diagram · 3 diagrams in section
HEATING & AIR CONDITIONING - COMPRESSOR for Toyota ALPHARD/VELLFIRE/HV
This section contains 16 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: COMPRESSOR ASSY, W/PULLEY, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), COMPRESSOR ASSY, W/MOTOR, CLUTCH ASSY, MAGNET.
