Toyota ALPHARD/VELLFIRE/HV — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

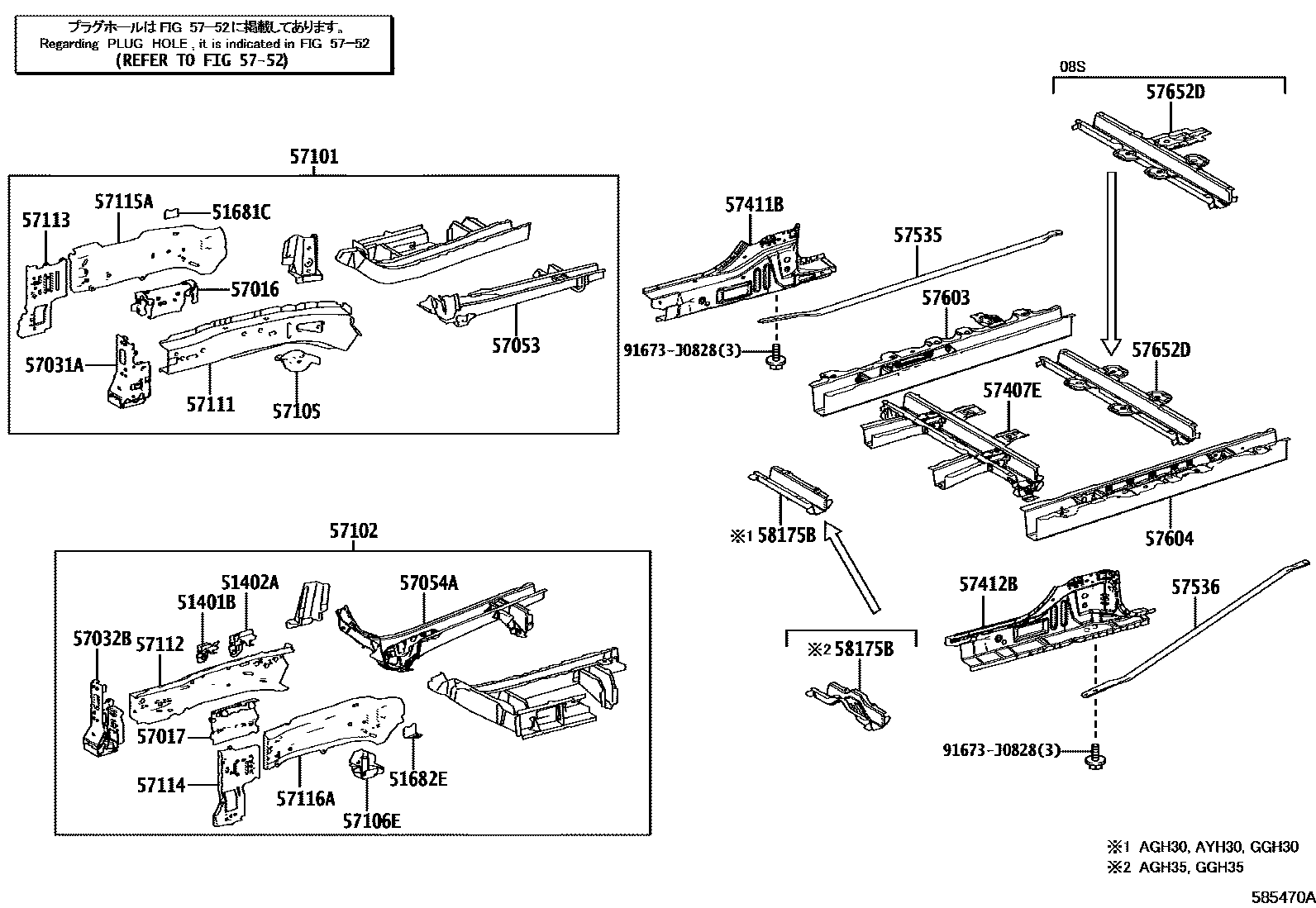

Parts diagram
51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING
main51401-28070i201501-201801
51402ABRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
main51402-28060i202001-202104
51681CPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH
main51681-12080i201801-202001
51682EPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH
main51682-12080i201501-201801
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
main57016-12110i202001-202104
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
main57017-12070i201501-201801
57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
main57031-12010i202001-202104
57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
main57032-12010i202001-202104
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
main57053-58010i202001-202104
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
main57054-58010i201501-201801
main57054-58020i201501-201801
57101MEMBER SUB-ASSY, FRONT SIDE, RH
main57101-58040i201501-201801
57102MEMBER SUB-ASSY, FRONT SIDE, LH
main57102-58050i201501-201712
main57102-58051i201712-201801
main57102-58060i201501-201712
main57102-58061i201712-201801
57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH
main57105-12160i202001-202104
57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH
main57106-12150i201801-202001
57111MEMBER, FRONT SIDE, RH
main57111-12230i202001
57112MEMBER, FRONT SIDE, LH
main57112-58010i201501-201712
main57112-58011i201712-201801
57113EXTENSION, FRONT SIDE MEMBER, RH
main57113-12220i201801-202001
57114EXTENSION, FRONT SIDE MEMBER, LH
main57114-12191i202001
57115APLATE, FRONT SIDE MEMBER, OUTER RH
main57025-12010i202001-202104
57116APLATE, FRONT SIDE MEMBER, OUTER LH
main57026-12020i202001-202104
57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS
main57407-58060i202001-202104
main57407-58070i201501-201801
main57407-58080i202001-202104
main57407-58090i201501-201801
main57407-58100i202001
main57407-58110i201501-201801
57411BMEMBER, FLOOR SIDE, INNER RH
main57047-58010i202001
57412BMEMBER, FLOOR SIDE, INNER LH
main57048-58010i202001-202104
5752HOLE PLUG
→ Go to FIG 57-52
57535BRACE, FRONT FLOOR, RH
main57535-58010i201501-201801
57536BRACE, FRONT FLOOR, LH
main57536-58010i202001-202104
57603MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
main57603-58020i201501-201801
57604MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
main57604-58050i201501-201801
57652DMEMBER, REAR FLOOR CROSS, NO.1
main57605-58030i201801-202001
main57605-58040i202001
main57605-58050i201501-201801
main57605-58060i202001-202104
main57605-58070i201501-201801
main57605-58080i202001
58175BANGLE SUB-ASSY, FRONT FLOOR, REAR
main58175-58010i201501-201801
main58175-58020i201801-202001
91673J0828
main91673-J0828

31 parts on this diagram · 2 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota ALPHARD/VELLFIRE/HV

This section contains 51 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH, PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH, PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH.
