Toyota ALPHARD/VELLFIRE/HV — CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
main55539-58070-C1iAGH3#..S,X,Z; AYH30,GGH3#..S,SC,SR,Z,ZG,ZR; AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL201801-202001
BLACK; BLACK,TRIM0#; BLACK,TRIM2#
55539JCOVER, SPARE SWITCH HOLE
BLACK,TRIM0#; BLACK,TRIM2#
main55539-58120-C1iAGH3#,AYH30,GGH3#..ALPHD..(G,GF,X); AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z202001-202105
BLACK,TRIM0#; BLACK,TRIM2#
55539KCOVER, SPARE SWITCH HOLE
BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM2#
main55539-58080-C1iAGH3#,AYH30,GGH3#..G,GF,V,VL,X; AGH3#,AYH30,GGH3#..S,SC,SR,Z,ZG,ZR; AYH30,GGH3#..S,SC,SR,Z,ZG,ZR; AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL201801-202001
main55539-58140-C1iAGH3#,AYH30,GGH3#..ALPHD..(G,GF,X); AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z; AYH30,GGH3#..ALPHD..(EL,ELS)202001
BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM2#
55539WCOVER, SPARE SWITCH HOLE
BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM2#
main55539-58100-C1iAGH3#,AYH30,GGH3#..G,GF,V,VL,X; AGH3#,AYH30,GGH3#..S,SC,SR,Z,ZG,ZR; AYH30,GGH3#..S,SC,SR,Z,ZG,ZR; AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL201801-202001
58629BMAT, CENTER CONSOLE
58804APANEL SUB-ASSY, CONSOLE, UPPER
BLACK,TRIM0#; BLACK,TRIM2#
BLACK,TRIM0#; BLACK,TRIM2#
58810JBOX ASSY, CONSOLE
BLACK,TRIM0#; BLACK,TRIM2#
BLACK,TRIM0#; BLACK,TRIM2#
BLACK,TRIM0#
main58810-58321-C4supersedes 58810-58311-C4iAGH3#,GGH3#..07S..(S,SA,Z,ZA); AYH30,GGH3#..EL; AYH30..SR,ZR201603-201801
main58810-58322-C5supersedes 58810-58312-C5iAYH30,GGH3#..EL; AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL201801-202001
main58810-58322-C6supersedes 58810-58312-C6iAGH3#..07S..(S,Z); AYH30,GGH3#..EL,ELS,ELZ; AYH30,GGH3#..S,SC,SR,Z,ZG,ZR201801-202001
main58810-58360-C5supersedes 58810-58321-C4iAGH3#,GGH3#..07S..(S,SA,Z,ZA); AYH30,GGH3#..EL; AYH30..SR,ZR201501-201602
main58810-58361-C5supersedes 58810-58311-C4iAGH3#,GGH3#..07S..(S,SA,Z,ZA); AYH30,GGH3#..EL; AYH30..SR,ZR201603-201801
main58810-58362-C7iAGH3#..07S..(S,Z); AYH30,GGH3#..EL,ELS,ELZ; AYH30,GGH3#..SC,SR,ZG,ZR201801-202001
58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
58911BPANEL, BOX, NO.1
BLACK,TRIM0#; BLACK,TRIM2#
main58911-58070-C0iAGH3#..07S..(S,Z); AYH30,GGH3#..EL; AYH30,GGH3#..ELS,ELZ,S,SC,SR,Z,ZG,ZR; AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL201801-202001
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM0#,2#
58913APANEL, BOX, NO.3
BLACK,TRIM0#; BLACK,TRIM2#
58923APANEL, CONSOLE REAR END
BLACK,TRIM0#,2#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main58959-60060×2iAGH3#,GGH3#..07S..(S,SA,Z,ZA); AYH30,GGH3#..EL,G,SR,V,X,ZR; GGH3#..GF,VL201501-201801
8401SWITCH & RELAY & COMPUTER
8420WIRELESS DOOR LOCK
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
8606CAMERA & REAR MONITOR DISPLAY
9010508158
main90105-08158
9046710203
main90467-10203
9167380616
main91673-80616
21 parts on this diagram · 13 diagrams in section

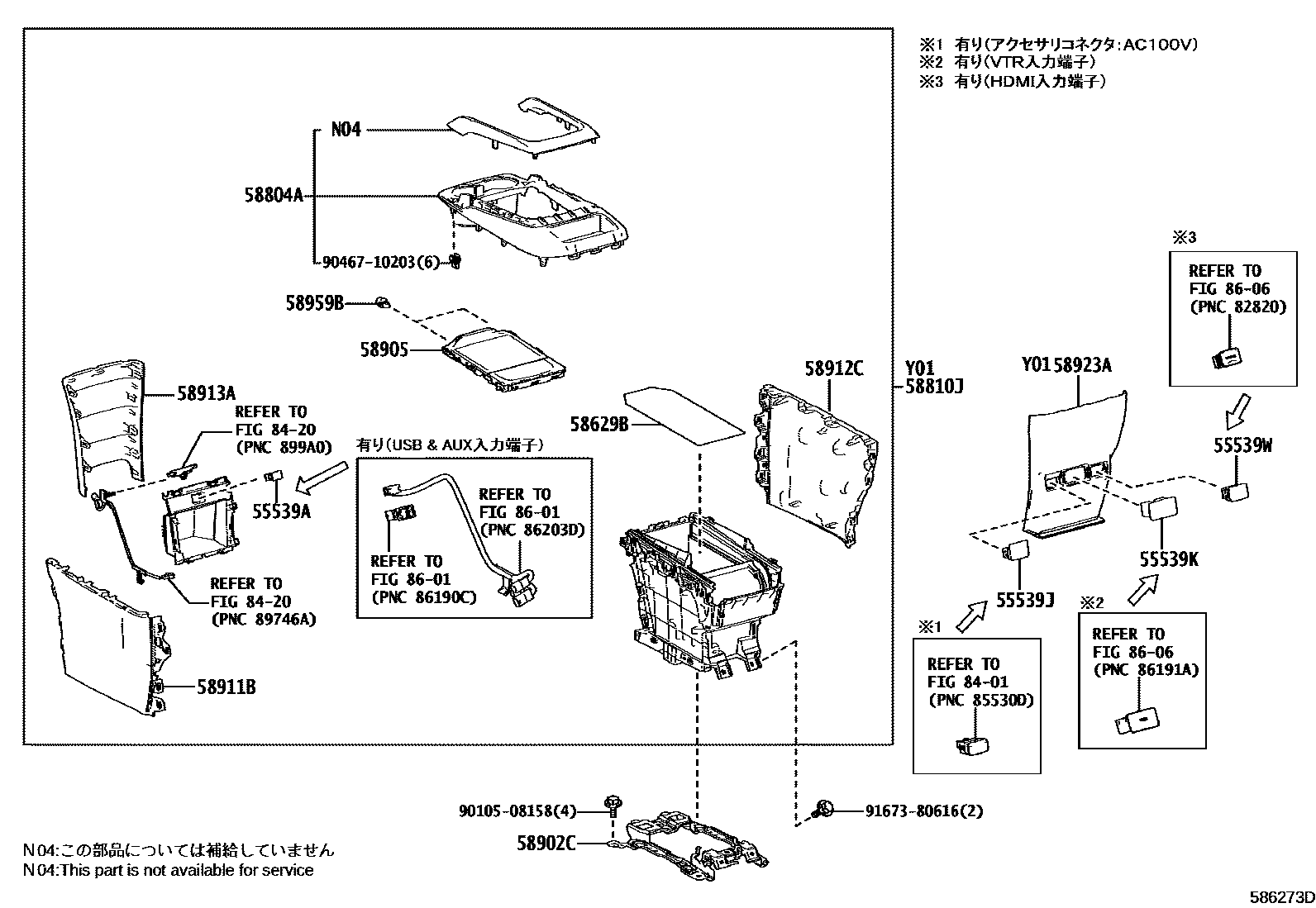

CONSOLE BOX & BRACKET for Toyota ALPHARD/VELLFIRE/HV
This section contains 68 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: DAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL, PANEL, INSTRUMENT PANEL FINISH, END RH, PANEL, INSTRUMENT PANEL FINISH, END LH, COVER, SWITCH BASE HOLE, COVER, SPARE SWITCH HOLE.
