Toyota ALPHARD/VELLFIRE/HV — BRAKE PEDAL & BRACKET

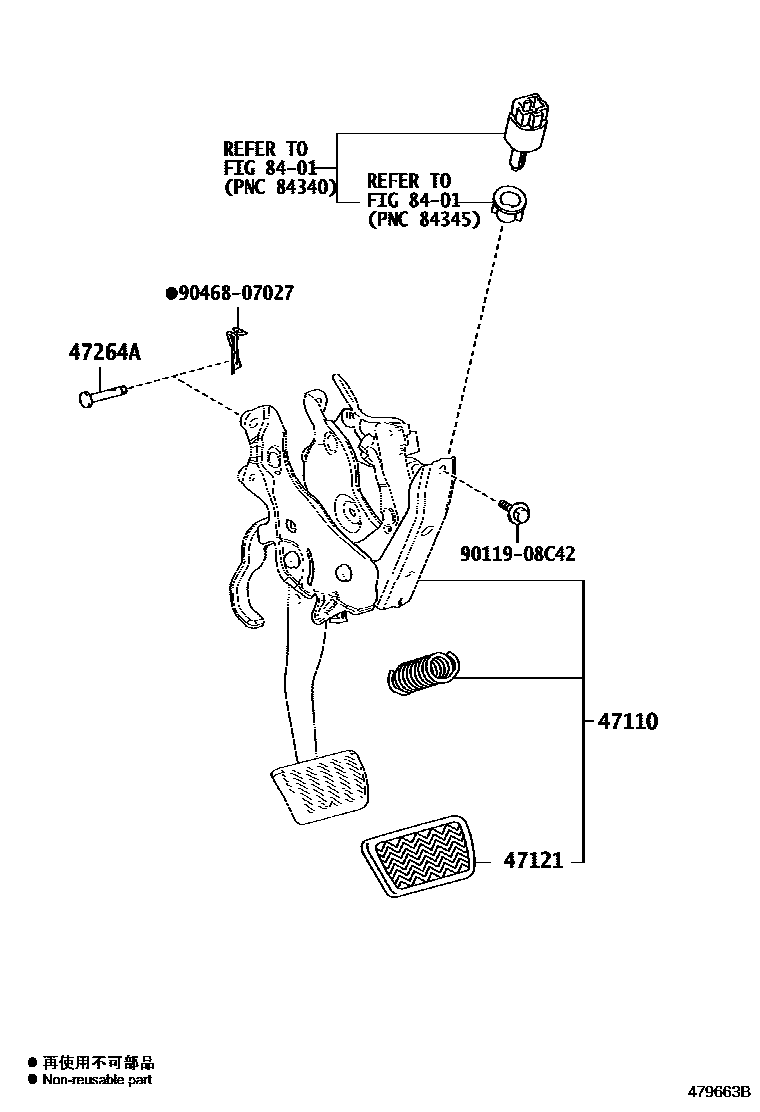

Parts diagram

47110SUPPORT ASSY, BRAKE PEDAL

main47110-58080i201501-201601

main47110-58081i202001-202104

main47110-58100i201501-201801

47121PAD, BRAKE PEDAL

main47121-42010i201501-201608

main47121-42020i201801-202001

47264APIN(FOR PUSH ROD)

main90240-06028i201501-201801

main90240-08078i202107

main90240-08082i202001-202104

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C42

main90119-08C42

9046807027

main90468-07027

6 parts on this diagram · 2 diagrams in section

BRAKE PEDAL & BRACKET for Toyota ALPHARD/VELLFIRE/HV

This section contains 6 genuine Toyota parts for the BRAKE PEDAL & BRACKET system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: SUPPORT ASSY, BRAKE PEDAL, PAD, BRAKE PEDAL, PIN(FOR PUSH ROD), SWITCH & RELAY & COMPUTER.
