Toyota ALPHARD/VELLFIRE/HV — BODY STRIPE

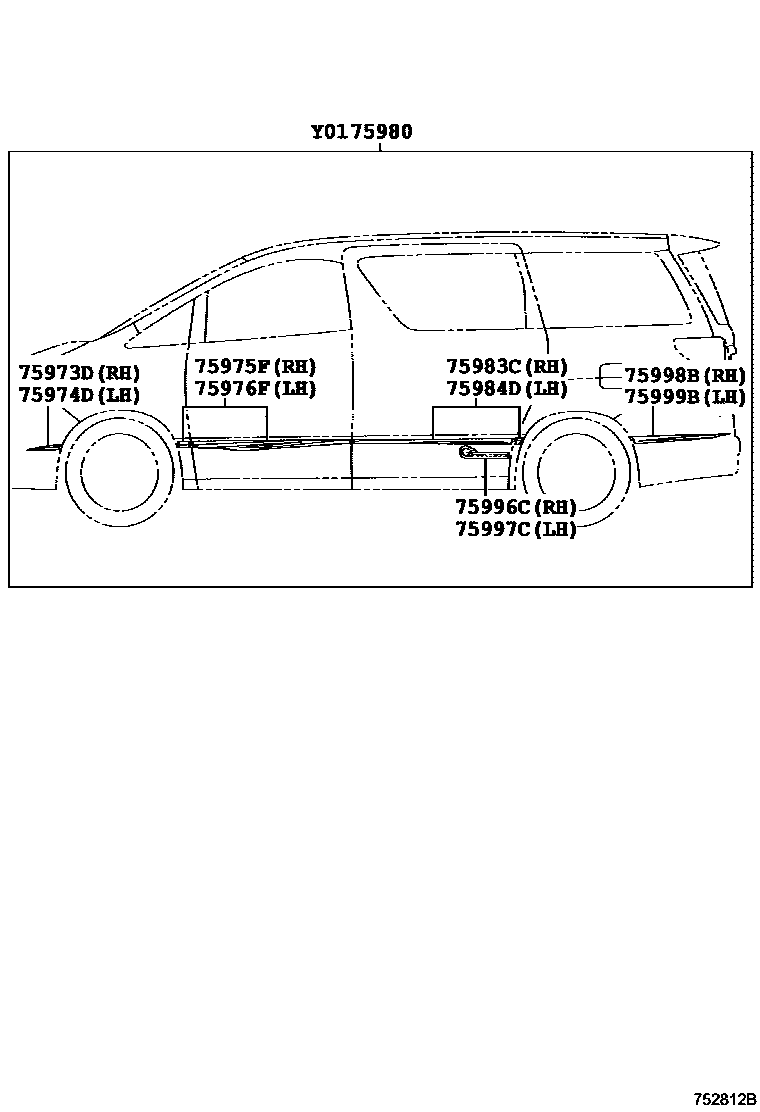

Parts diagram

75973DSTRIPE, FRONT BUMPER SIDE, RH

main75973-58010i201211

main75973-58020i201211

75974DSTRIPE, FRONT BUMPER SIDE, LH

main75974-58010i201211

main75974-58020i201211

75975FSTRIPE, FRONT DOOR OUTSIDE, LOWER RH

main75975-58010i201211

main75975-58020i201211

75976FSTRIPE, FRONT DOOR OUTSIDE, LOWER LH

main75976-58010i201211

main75976-58020i201211

75980STRIPE SET

main75009-58010i201211

main75009-58020i201211

75983CSTRIPE, SLIDE DOOR, RH

main75983-58010i201211

main75983-58020i201211

75984DSTRIPE, SLIDE DOOR, LOWER LH

main75984-58010i201211

main75984-58020i201211

75996CSTRIPE, REAR BODY, RH

main75996-58010i201211

main75996-58020i201211

75997CSTRIPE, REAR BODY, LH

main75996-58010i201211

main75996-58020i201211

75998BSTRIPE, REAR BUMPER SIDE, RH

main75998-58010i201211

main75998-58020i201211

75999BSTRIPE, REAR BUMPER SIDE, LH

main75999-58010i201211

main75999-58020i201211

11 parts on this diagram · 2 diagrams in section

BODY STRIPE for Toyota ALPHARD/VELLFIRE/HV

This section contains 19 genuine Toyota parts for the BODY STRIPE system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: STRIPE, FRONT BUMPER SIDE, RH, STRIPE, FRONT BUMPER SIDE, LH, STRIPE, FRONT DOOR OUTSIDE, LOWER RH, STRIPE, FRONT DOOR OUTSIDE, LOWER LH, STRIPE SET.
