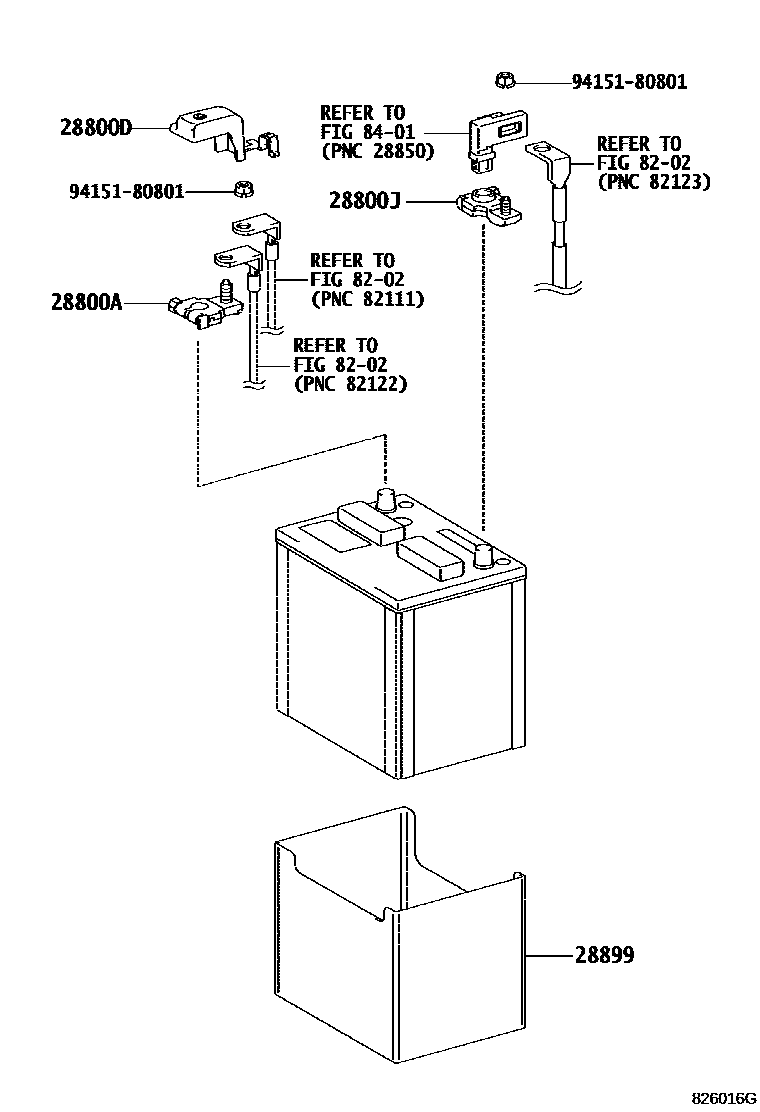

Toyota ALPHARD/VELLFIRE/HV — BATTERY & BATTERY CABLE
28800ATERMINAL, BATTERY POSITIVE
28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)
28800JTERMINAL, BATTERY NEGATIVE
28899INSULATOR, BATTERY
main28899-28040i2AZFE..ANH25..08S..CBU;2AZFE..ANH20..08S..(240X,24X)..CBU;2AZFE..ANH25..07S..(240G,240S,24V,24Z);2AZFE,2GRFE..ANH20,GGH2#..(240G,240S,24V,24Z,350G,350S,350X,35V,35X,35Z)..CBU200804-201110
main28899-28070i2AZFE,2GRFE..ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,35V)..CBU; 2AZFE,2GRFE..ANH20,GGH20..07S..(240G,24V,350G,35V)..CBU; 2AZFE,2GRFE..ANH20,GGH20..08S..(240G,240X,24V,24X,350G,35V)..CBU; 2AZFE..ANH2#..07S..(240X,24X)..CBU; 2AZFE..ANH2#..08S..(240X,24X)..CBU; 2GRFE..GGH2#..07S..CBU; 2GRFE..GGH2#..08S..(350G,35V)..CBU; 2GRFE..GGH2#..CBU; 2GRFE..GGH20..07S..(350G,35V)..CBU; 2GRFE..GGH20..08S..(350G,35V)..CBU; 2GRFE..GGH25..07S..(350G,35V)..CBU200804-201110
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
9415180801
main94151-80801
7 parts on this diagram · 5 diagrams in section
BATTERY & BATTERY CABLE for Toyota ALPHARD/VELLFIRE/HV
This section contains 46 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: TERMINAL, BATTERY POSITIVE, COVER, CONNECTOR(FOR BATTERY TERMINAL), TERMINAL, BATTERY NEGATIVE, HOSE, BATTERY ROOM VENTILATION, INSULATOR, BATTERY.
