Toyota ALPHARD/VELLFIRE/HV — ASH RECEPTACLE

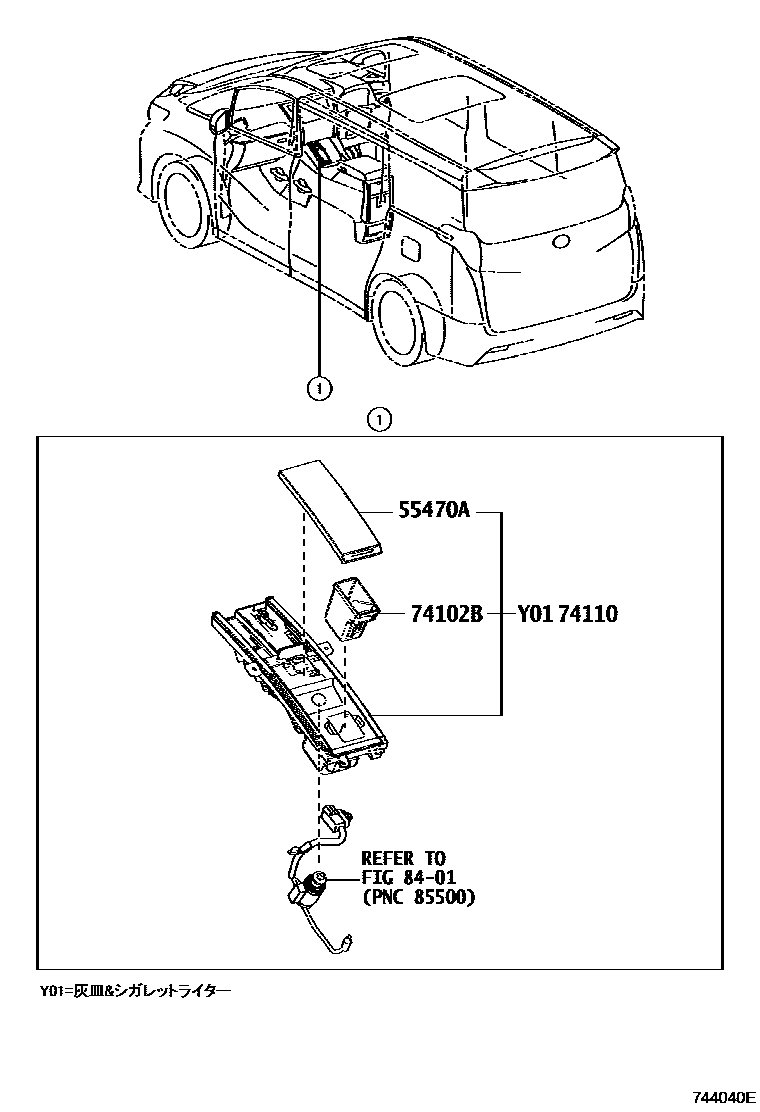

Parts diagram

55470AGARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL

main55470-58010i201501-201801

main55470-58020i201501-201801

main55470-58030i201501-201801

main55470-58060i202001

main55470-58070i202001-202105

main55470-58080i202001-202104

main55470-58090i201801-202001

main55470-V2010i202105

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-12410i202001-202104

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74110-58200i201501-201801

main74110-58210i201501-201801

main74110-58220i201501-201801

main74110-58230i202001

main74110-58240i202001-202105

main74110-58250i202001-202104

main74110-58260i201801-202001

main74110-V2010i202105

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

4 parts on this diagram · 1 diagram in section

ASH RECEPTACLE for Toyota ALPHARD/VELLFIRE/HV

This section contains 4 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL, BOX SUB-ASSY, FRONT ASH RECEPTACLE, RECEPTACLE ASSY, INSTRUMENT PANEL ASH, SWITCH & RELAY & COMPUTER.
