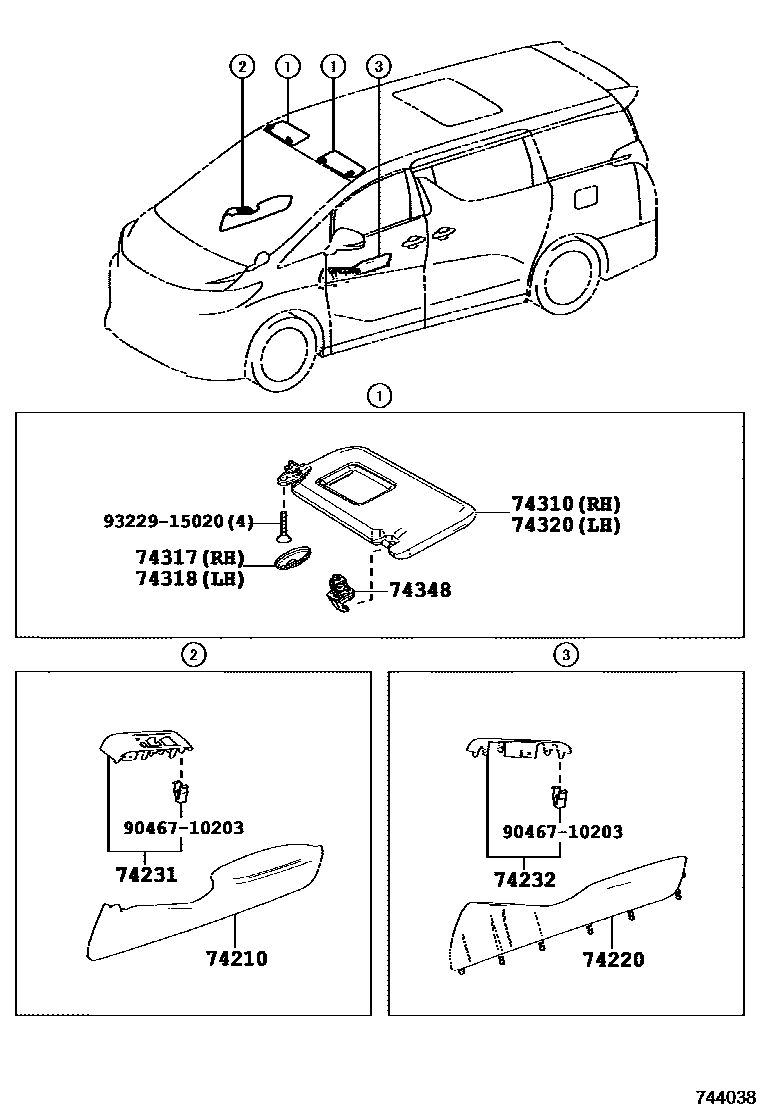

Toyota ALPHARD/VELLFIRE/HV — ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-58010-A0i202001-202104

FLAXEN,TRIM0#

main74210-58010-C0i201501-201801

BLACK,TRIM2#

main74210-58020-A1i202001-202104

FLAXEN,TRIM0#

main74210-58020-C1i201801-202001

74220ARMREST ASSY, FRONT, LH

main74220-58010-A0i201801-202001

FLAXEN,TRIM0#

main74220-58010-C0i201501-201801

BLACK,TRIM2#

main74220-58020-A1i202001-202104

FLAXEN,TRIM0#

main74220-58020-C1i202001

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-58330i202001

main74231-58340i201801-202001

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-58190i201501-201801

74310VISOR ASSY, RH

main74310-58120-A2i201501-201606

FLAXEN,TRIM0#

main74310-58120-B1i201501-201606

LT.GRAY,TRIM2#; LT.GRAY,TRIM21

main74310-58120-C2i201501-201606

BLACK,TRIM2#; BLACK,TRIM21

main74310-58121-A2i201607-201801

FLAXEN,TRIM0#

main74310-58121-B1i201607-201801

LT.GRAY,TRIM2#; LT.GRAY,TRIM21

main74310-58121-C2i201607-201801

BLACK,TRIM2#; BLACK,TRIM21

main74310-58131-A2i201801-201807

FLAXEN,TRIM0#

main74310-58131-A3i202001

FLAXEN,TRIM0#

main74310-58131-B1i201801-201807

LT.GRAY,TRIM2#; LT.GRAY,TRIM21

main74310-58131-B2i201807-202001

LT.GRAY,TRIM2#; LT.GRAY,TRIM21

main74310-58131-C2i201801-201807

BLACK,TRIM2#; BLACK,TRIM21

main74310-58131-C3i201807-202001

BLACK,TRIM2#; BLACK,TRIM21

74317COVER, VISOR BRACKET, RH

main74317-60020-A7i202001

FLAXEN,TRIM0#

main74317-60020-B1i201801-202001

LT.GRAY,TRIM2#; LT.GRAY,TRIM21

main74317-60020-C0i201501-201610

BLACK,TRIM2#; BLACK,TRIM21

main74317-60020-C2i201801-202001

BLACK,TRIM2#; BLACK,TRIM21

74318COVER, VISOR BRACKET, LH

main74317-60020-A7i201501-201801

FLAXEN,TRIM0#

main74317-60020-B1i201501-201801

LT.GRAY,TRIM2#; LT.GRAY,TRIM21

main74317-60020-C0i201501-201610

BLACK,TRIM2#; BLACK,TRIM21

main74317-60020-C2i201610-201801

BLACK,TRIM2#; BLACK,TRIM21

74320VISOR ASSY, LH

main74320-58080-A2i201501-201606

FLAXEN,TRIM0#

main74320-58080-B1i201501-201606

LT.GRAY,TRIM2#; LT.GRAY,TRIM21

main74320-58080-C2i201501-201606

BLACK,TRIM2#; BLACK,TRIM21

main74320-58081-A2i201607-201801

FLAXEN,TRIM0#

main74320-58081-A3i201807-202001

FLAXEN,TRIM0#

main74320-58081-B1i201801-201807

LT.GRAY,TRIM2#; LT.GRAY,TRIM21

main74320-58081-B2i201807-202001

LT.GRAY,TRIM2#; LT.GRAY,TRIM21

main74320-58081-C2i201801-201807

BLACK,TRIM2#; BLACK,TRIM21

main74320-58081-C3i202001-202104

BLACK,TRIM2#

74348HOLDER, VISOR

main74348-33040-A7×2i202001-202104

FLAXEN,TRIM0#

main74348-33040-B1×2i202001

LT.GRAY,TRIM2#; LT.GRAY,TRIM21

main74348-33040-C0×2i201501-201610

BLACK,TRIM2#; BLACK,TRIM21

main74348-33040-C2×2i201801-202001

BLACK,TRIM2#; BLACK,TRIM21

9046710203

main90467-10203

9322915020

main93229-15020

11 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota ALPHARD/VELLFIRE/HV

This section contains 24 genuine Toyota parts for the ARMREST & VISOR system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, VISOR ASSY, RH.
