Toyota ALPHARD/VELLFIRE/HV — WINDSHIELD WASHER

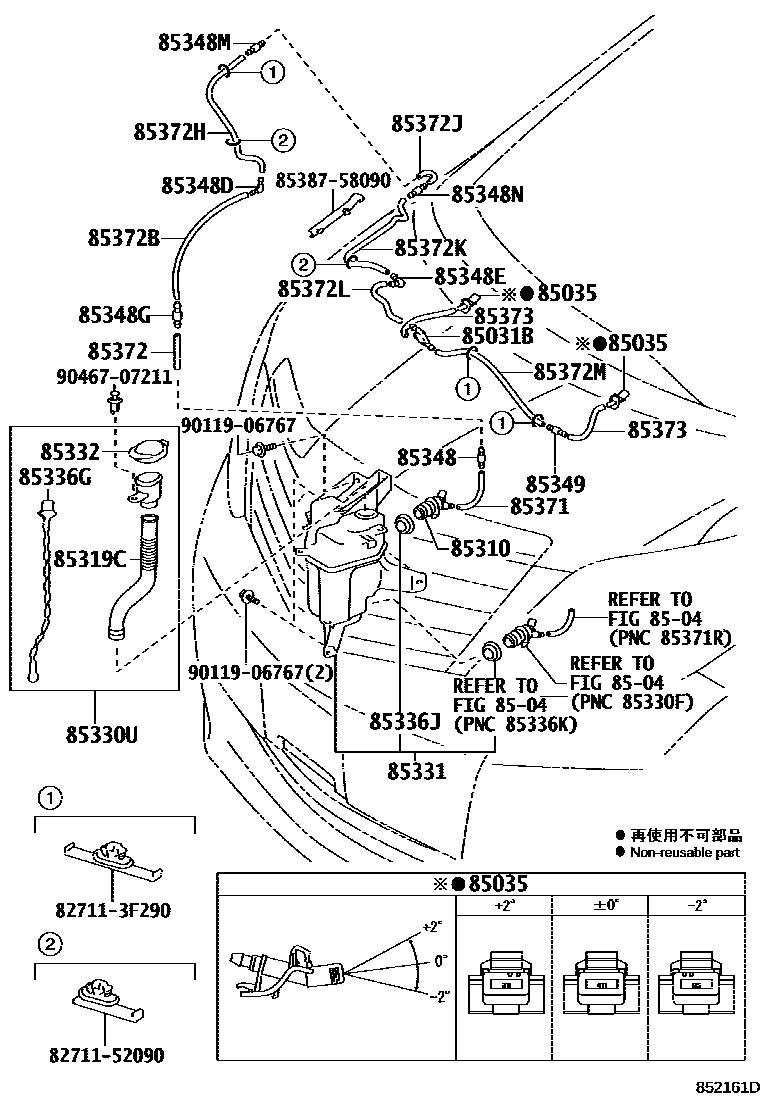

Parts diagram
85031BVALVE SUB-ASSY, WASHER
main85321-28020i201110
85035NOZZLE SUB-ASSY, WASHER
main85381-12300×2i201110
ANGLE 0
main85381-12310×2i200804-201110
ANGLE -2
main85381-12320×2i200804-201110
ANGLE +2
8504REAR WASHER
→ Go to FIG 85-04
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-21010i201006-201110
main85330-47010i201110
main85330-71020i200804-201110
85319CHOSE, WASHER
main85319-58020i201110
85330UCAP, WASHER TANK
main85316-58020i200804-201110
main85316-58060i201006-201110
main85316-58061i201110
85331JAR SUB-ASSY, WINDSHIELD WASHER
main85315-28230i200804-201110
85332CAP, WINDSHIELD WASHER JAR
main85316-26030i200804-201110
main85316-52190i201110
85336GGAGE, WATER LEVEL
main85318-58020i200804-201110
main85318-58060i201110
85336JPROTECTOR, WASHER JAR
main85336-60300i201110
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85349-89122i200804-201110
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85355-20200i200804-201110
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
main85355-20200i200804-201110
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85349-89122i200804-201110
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
main85349-89122i200804-201110
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
main85349-89122i200804-201110
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
main85349-89122i200804-201110
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33080i201110
L=1450(*H,L=150); L=1450(*H,L=210)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33080i200804-201007
L=1450(*H,L=80)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90099-33080i201110
L=1450(*H,L=550)
main90446-07001i200804-201110
L=1800(*H,L=550)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90099-33080i200804-201110
L=1450(*H,L=370)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
main85375-33040i201110
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
main90099-33080i201110
L=1450(*H,L=440)
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
main90099-33080i201110
L=1450(*H,L=230)
main90446-07001i200804-201110
L=1800(*H,L=230)
85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
main90099-33080i201110
L=1450(*H,L=590)
main90446-07001i200804-201110
L=1800(*H,L=590)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080×2i200804-201110
L=1450(*H,L=150)
827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F290
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
8538758090CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-58090
9011906767
main90119-06767
9046707211
main90467-07211

31 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota ALPHARD/VELLFIRE/HV

This section contains 33 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, REAR WASHER, HEADLAMP CLEANER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
