Toyota ALPHARD/VELLFIRE/HV — V-BELT

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

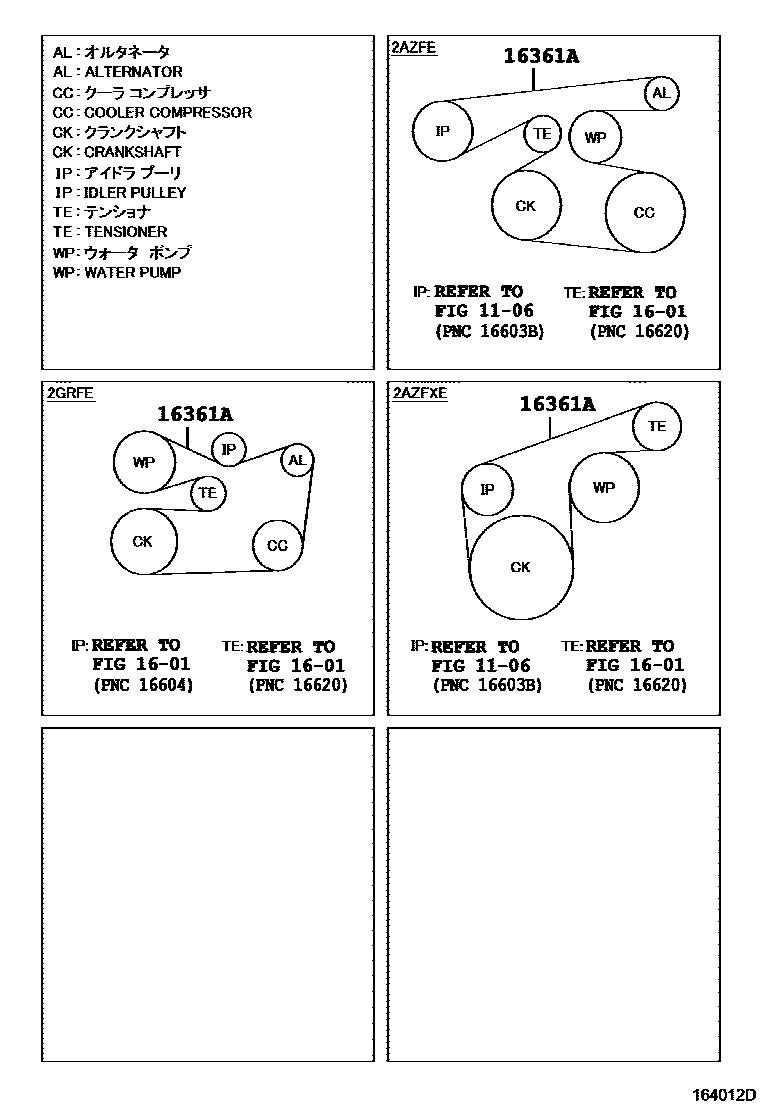

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02652i201110

*195,BANDO

main90916-02653i201110

*195,MITSUBOSHI

main99364-C1050i201112

main99367-C1550i200804-201110

main90916-02599i200906-201110

*194,BANDO

3 parts on this diagram · 1 diagram in section

V-BELT for Toyota ALPHARD/VELLFIRE/HV

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: TIMING GEAR COVER & REAR END PLATE, WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
