Toyota ALPHARD/VELLFIRE/HV — SWITCH & RELAY & COMPUTER

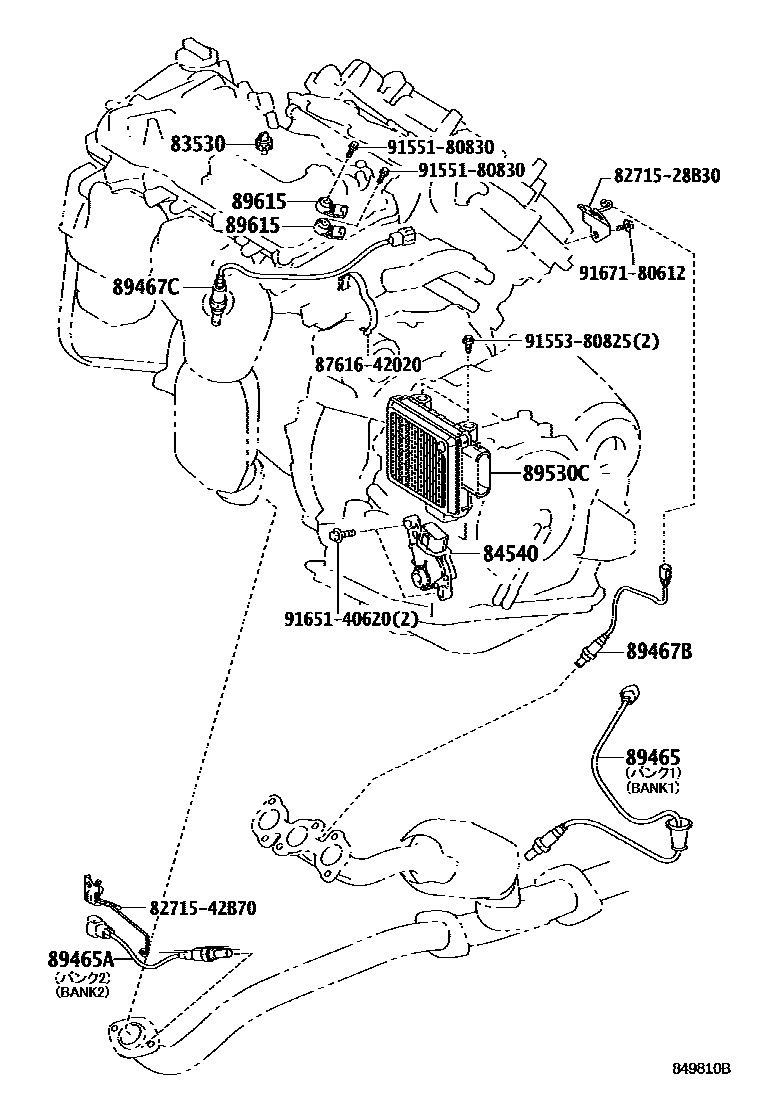

Parts diagram

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020i200804-201110

84540SWITCH ASSY, NEUTRAL START

main84540-33010i201110-201501

main84540-42010i201110-201501

main84540-52070i200906-201110

89465SENSOR, OXYGEN

main89465-28370i201206-201501

main89465-28400i201110-201501

main89465-28420i201006-201110

BANK1

main89465-28440i201112-201206

main89465-58130i200804-201110

BANK1

main89465-58140i201004-201110

89465ASENSOR, OXYGEN NO.2

main89465-42150i200804-201110

BANK2

89467BSENSOR, AIR FUEL RATIO

main89467-42100i200906-201004

MARK:TAPE=GOLD

main89467-45030i201205

main89467-58020i200804-201110

main89467-58030i201110

main89467-58080i201112

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-58010i200804-200807

main89467-58040i201110

BRUNEI SPEC; INDONESIA SPEC; PHILIPPINES SPEC

main89467-58060i201110

89530CCOMPUTER ASSY, TRANSMISSION CONTROL

main89530-58020i200804-200907

main89530-58021i200908-201110

main89530-58030i200810-200907

main89530-58031i200908-201110

BRUNEI SPEC; INDONESIA SPEC; MALAYSIA SPEC; THAILAND SPEC

main89530-58050i201110-201311

main89530-58060i201110

BRUNEI SPEC; INDONESIA SPEC; PHILIPPINES SPEC

main89530-58070i201311

89615SENSOR, KNOCK CONTROL

main89615-20090×2i201110

8271528B30BRACKET,WIRING HARNESS CLAMP

main82715-28B30

8271542B70BRACKET,WIRING HARNESS CLAMP

main82715-42B70

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9155180830

main91551-80830

9155380825

main91553-80825

9165140620

main91651-40620

9167180612

main91671-80612

15 parts on this diagram · 15 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota ALPHARD/VELLFIRE/HV

This section contains 181 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: RELAY ASSY, STARTER, RELAY, STARTER CUT, RELAY, IGNITION, NO.2, RESISTER, FUEL PUMP, SENSOR ASSY, BATTERY CURRENT.
