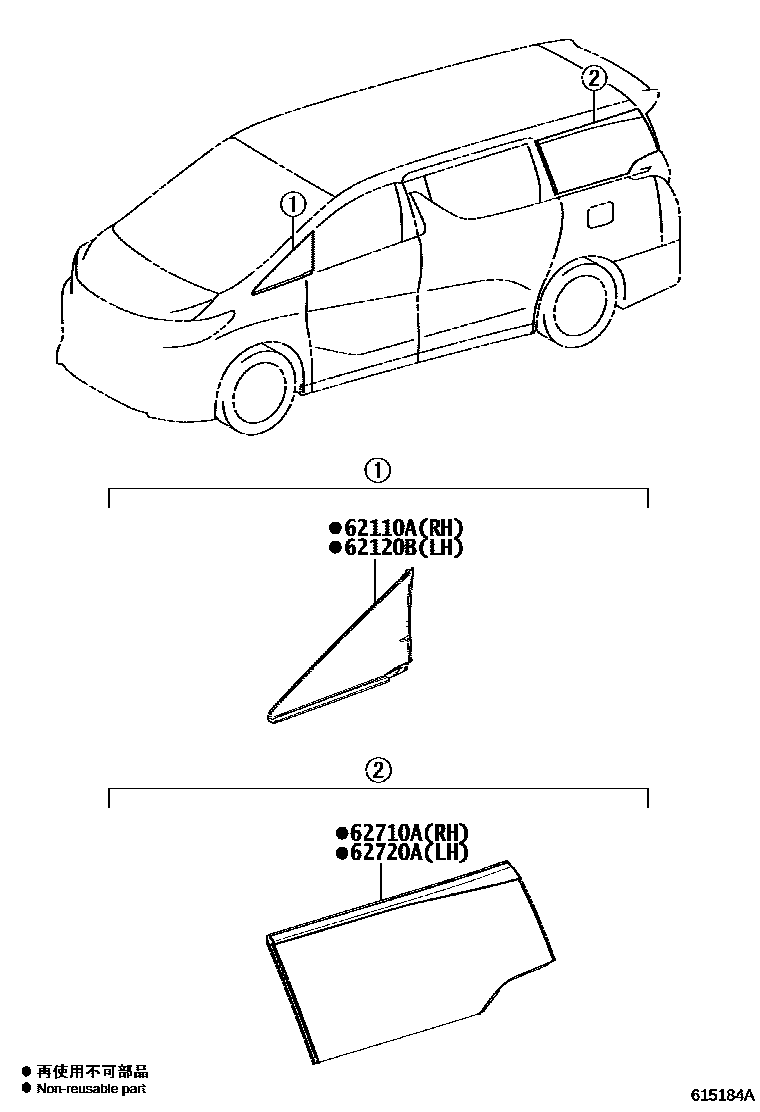

Toyota ALPHARD/VELLFIRE/HV — SIDE WINDOW
62110AWINDOW ASSY, FRONT SIDE FIX, RH
W(APPROVAL MARK:ISI)
62120BWINDOW ASSY, FRONT SIDE FIX, LH
W(APPROVAL MARK:ISI)
62710AWINDOW ASSY, QUARTER, RH
main62710-58170supersedes 62710-58210iAGH30..VFIRE; GGH30..LHD..V; GGH30..RHD;AGH30,AYH30..ALPHD201501-201801
INDONESIA SPEC; SINGAPORE SPEC; TAIWAN SPEC
THAILAND SPEC
PHILIPPINES SPEC; RUSSIA SPEC; VIETNAM SPEC
W(APPROVAL MARK:ISI)
62720AWINDOW ASSY, QUARTER, LH
THAILAND SPEC
main62720-58270supersedes 62720-58250iAGH30..VFIRE; GGH30..LHD..V; GGH30..RHD;AGH30,AYH30..ALPHD201501-201801
INDONESIA SPEC; SINGAPORE SPEC; TAIWAN SPEC
PHILIPPINES SPEC; RUSSIA SPEC; VIETNAM SPEC
main62720-58360supersedes 62720-58270iAGH30..R,S;GGH30..RHD..(L,R);AGH30,AYH30..RHD..ALPHD; AGH30..VFIRE..L; GGH30..RHD..8FC..V; GGH30..Z;GGH30..6FC..V;AYH30..RHD..V202001
AUDIO-EMV 10.5INCH 17SP JBL; INDONESIA SPEC; MALAYSIA SPEC; MALAYSIA SPEC&AUDIO-EMV 10.5INCH 17SP JBL; SINGAPORE SPEC&AUDIO-EMV 10.5INCH 17SP JBL
AUDIO-EMV 10.5INCH 17SP JBL; THAILAND SPEC&AUDIO-EMV 10.5INCH 17SP JBL
AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER),W(APPROVAL MARK:ISI)
4 parts on this diagram · 1 diagram in section
SIDE WINDOW for Toyota ALPHARD/VELLFIRE/HV
This section contains 4 genuine Toyota parts for the SIDE WINDOW system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: WINDOW ASSY, FRONT SIDE FIX, RH, WINDOW ASSY, FRONT SIDE FIX, LH, WINDOW ASSY, QUARTER, RH, WINDOW ASSY, QUARTER, LH.
