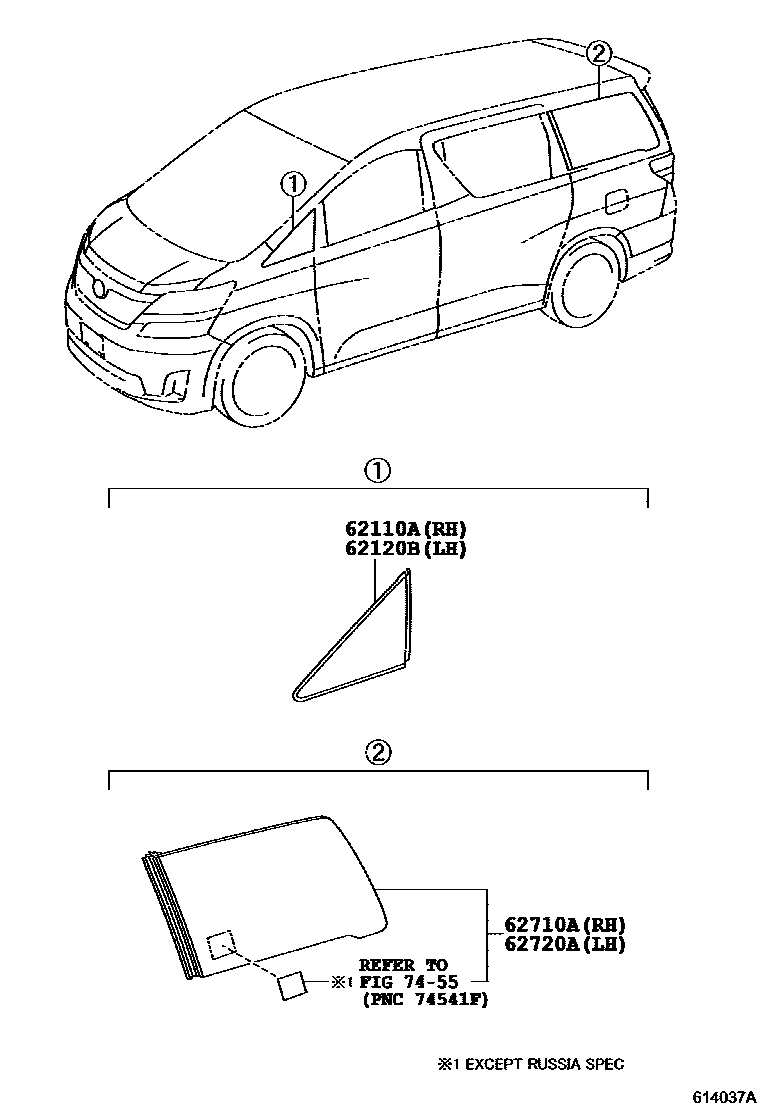

Toyota ALPHARD/VELLFIRE/HV — SIDE WINDOW

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-58020i200804-200805

main62110-58021i200806-200911

main62110-58022i200912-201110

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-58020i200804-200805

main62120-58021i200806-200911

main62120-58022i200912-201110

62710AWINDOW ASSY, QUARTER, RH

main62710-58130i200810-200911

*TEM,T=3.1,DARK GREY

main62710-58131i200912-201004

*TEM,T=3.1,DARK GREY; *TEM,T=3.1,DARK GREY,THAILAND SPEC

main62710-58132i201110-201404

*TEM,T=3.1,DARK GREY; *TEM,T=3.1,DARK GREY,THAILAND SPEC

main62710-58200i200804-200811

*UVCT,T=3.1,GREEN

main62710-58201i200812-200904

*UVCT,T=3.1,GREEN

main62710-58202i200904-201110

*UVCT,T=3.1,GREEN

main62710-58230i201405

*TEM,T=3.1,DARK GREY; *TEM,T=3.1,DARK GREY,THAILAND SPEC; *TEM,T=3.1,DARK GREY,THAILAND SPEC&AUDIO-RADIO LESS 8SPEAKER

main62710-58140i201110

*TEM,T=3.1,DARK GREY,RUSSIA SPEC

62720AWINDOW ASSY, QUARTER, LH

main62720-58200i200804-200811

*UVCT,T=3.1,GREEN

main62720-58201i200812-201004

*UVCT,T=3.1,GREEN

main62720-58202i201004-201110

*UVCT,T=3.1,GREEN

main62720-58220i200810-200911

*TEM,T=3.1,DARK GRAY

main62720-58221i200912-201004

*TEM,T=3.1,DARK GRAY; *TEM,T=3.1,DARK GRAY,THAILAND SPEC

main62720-58222i201110-201404

*TEM,T=3.1,DARK GRAY; *TEM,T=3.1,DARK GRAY,THAILAND SPEC

main62720-58290i201405

*TEM,T=3.1,DARK GRAY

main62720-58300i201405

*TEM,T=3.1,DARK GRAY; *TEM,T=3.1,DARK GRAY,THAILAND SPEC; *TEM,T=3.1,DARK GRAY,THAILAND SPEC&AUDIO-RADIO LESS 8SPEAKER

main62720-58181i201201

*TEM,T=3.1,DARK GRAY,RUSSIA SPEC

main62720-58240i201110-201201

*TEM,T=3.1,DARK GRAY,RUSSIA SPEC

7455CAUTION PLATE

→ Go to FIG 74-55

5 parts on this diagram · 1 diagram in section

SIDE WINDOW for Toyota ALPHARD/VELLFIRE/HV

This section contains 5 genuine Toyota parts for the SIDE WINDOW system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: WINDOW ASSY, FRONT SIDE FIX, RH, WINDOW ASSY, FRONT SIDE FIX, LH, WINDOW ASSY, QUARTER, RH, WINDOW ASSY, QUARTER, LH, CAUTION PLATE.
