Toyota ALPHARD/VELLFIRE/HV — ROOF PANEL & BACK PANEL

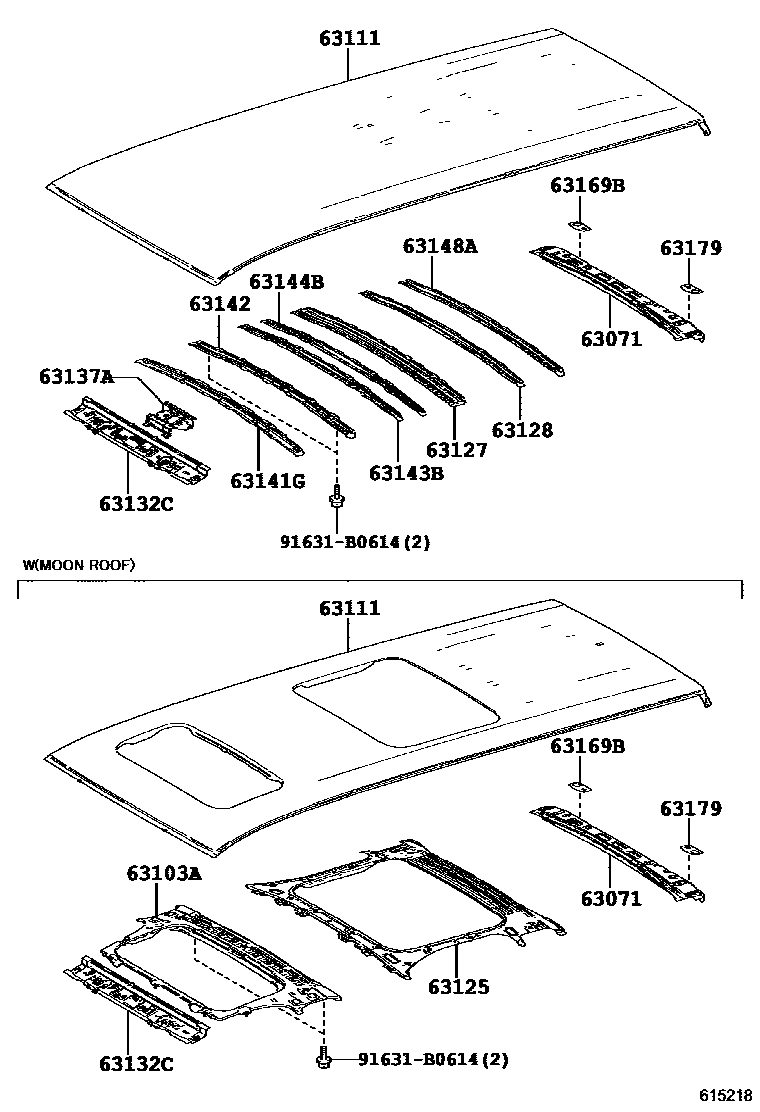

Parts diagram
63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
main63071-58030i202001
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
main63103-58030i201501-201801
MOON ROOF-WITH(TWIN)
63111PANEL, ROOF
main63111-58070supersedes 63111-58050i201801-201907
main63111-58080i202001
RUSSIA SPEC
63125REINFORCEMENT, ROOF PANEL, NO.2
main63125-58030i201501-201801
MOON ROOF-WITH(TWIN)
63127REINFORCEMENT, ROOF PANEL, NO.5
main63127-58030i201501-201801
63128REINFORCEMENT, ROOF PANEL, NO.6
main63128-58030i201501-201801
63132CPANEL, WINDSHIELD HEADER, INNER
main63132-58030i201501-201801
63137ABRACKET, DOME LAMP, NO.1
main63137-58020i201501-201801
63141GREINFORCEMENT, ROOF PANEL, NO.1
main63141-58030i201501-201801
63142REINFORCEMENT, ROOF PANEL, NO.2
main63142-58030i201501-201801
63143BREINFORCEMENT, ROOF PANEL, NO.3
main63143-58030i201501-201801
63144BREINFORCEMENT, ROOF PANEL, NO.4
main63144-58030i201501-201801
63148AREINFORCEMENT, ROOF PANEL, NO.7
main63148-58030i201501-201801
63169BPLATE, ROOF PANEL REINFORCEMENT, RH
main63169-35020i201501-201801
63179PLATE, ROOF PANEL REINFORCEMENT, LH
main63179-35020i201501-201801
91631B0614
main91631-B0614

16 parts on this diagram · 3 diagrams in section

ROOF PANEL & BACK PANEL for Toyota ALPHARD/VELLFIRE/HV

This section contains 74 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: LINK SUB-ASSY, TILT ROOF, RH, LINK SUB-ASSY, TILT ROOF, LH, FRAME SUB-ASSY, BACK DOOR OPENING, UPPER, REINFORCEMENT SUB-ASSY, ROOF PANEL, PANEL, ROOF.
