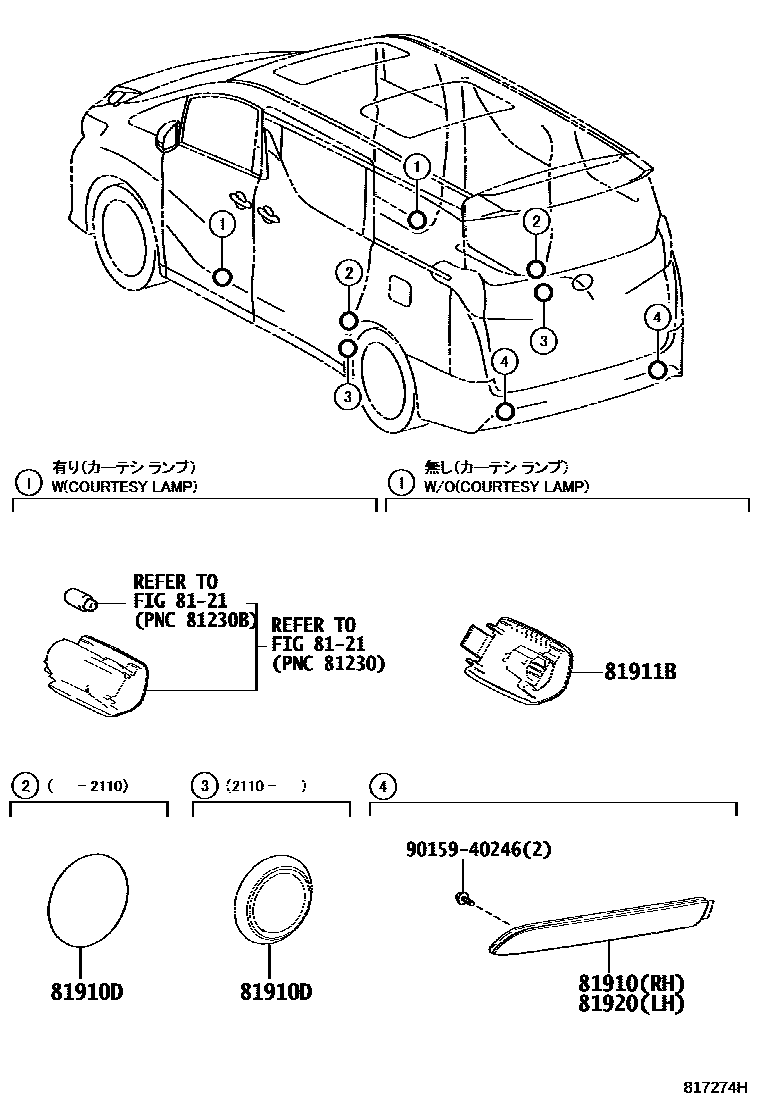

Toyota ALPHARD/VELLFIRE/HV — REFLEX REFLECTOR

8121INTERIOR LAMP

→ Go to FIG 81-21

81910REFLECTOR ASSY, REFLEX, RH

main81910-48012i201501-201801

main81910-58010i201908-202001

81910DREFLECTOR ASSY, REFLEX, REAR

main81580-V1040×2i202110

main81910-21030×2i201801-202001

81911BREFLECTOR, REFLEX

main81911-28020×2i201501-201801

81920REFLECTOR ASSY, REFLEX, LH

main81920-48012i201501-201801

main81920-58010i202001

9015940246

main90159-40246

6 parts on this diagram · 2 diagrams in section

REFLEX REFLECTOR for Toyota ALPHARD/VELLFIRE/HV

This section contains 6 genuine Toyota parts for the REFLEX REFLECTOR system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: INTERIOR LAMP, REFLECTOR ASSY, REFLEX, RH, REFLECTOR ASSY, REFLEX, REAR, REFLECTOR, REFLEX, REFLECTOR ASSY, REFLEX, LH.
