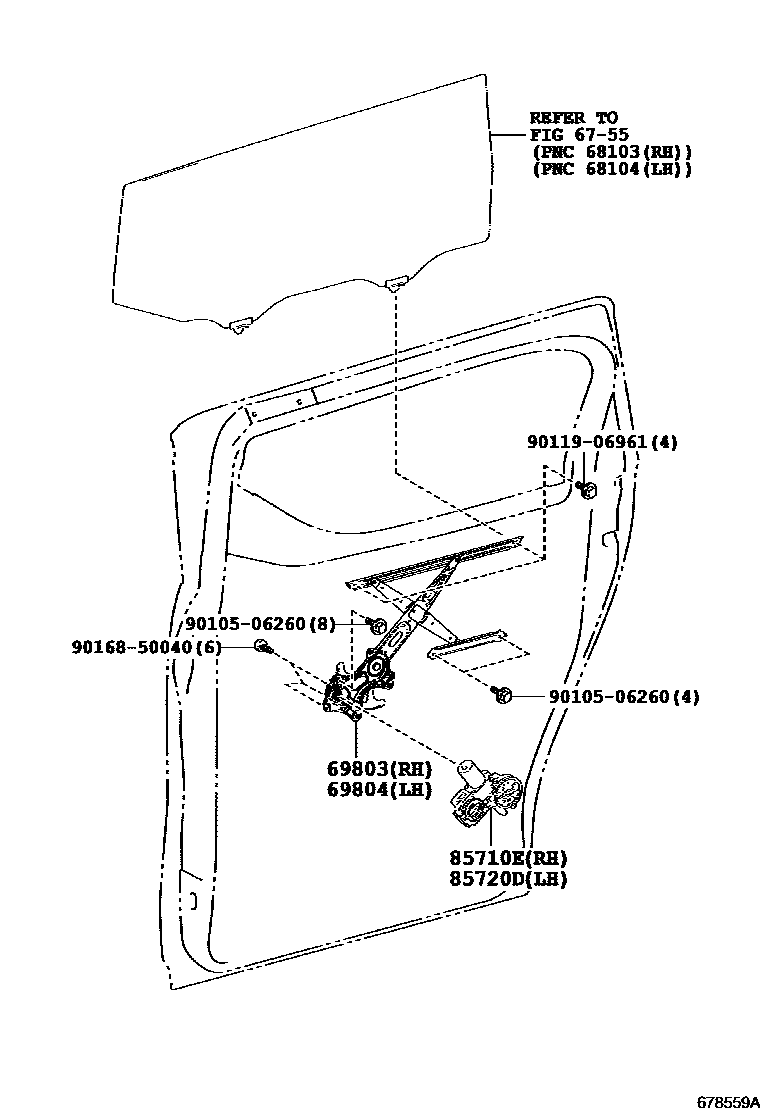

Toyota ALPHARD/VELLFIRE/HV — REAR DOOR WINDOW REGULATOR & HINGE

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-30280i201501-201801

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-30280i201501-201801

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-58050i201501-201801

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-58050i201501-201801

9010506260

main90105-06260

9011906961

main90119-06961

9016850040

main90168-50040

8 parts on this diagram · 1 diagram in section

REAR DOOR WINDOW REGULATOR & HINGE for Toyota ALPHARD/VELLFIRE/HV

This section contains 8 genuine Toyota parts for the REAR DOOR WINDOW REGULATOR & HINGE system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: REAR DOOR PANEL & GLASS, REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH, REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH, MOTOR ASSY, POWER WINDOW REGULATOR, RH, MOTOR ASSY, POWER WINDOW REGULATOR, LH.
