Toyota ALPHARD/VELLFIRE/HV — MIRROR

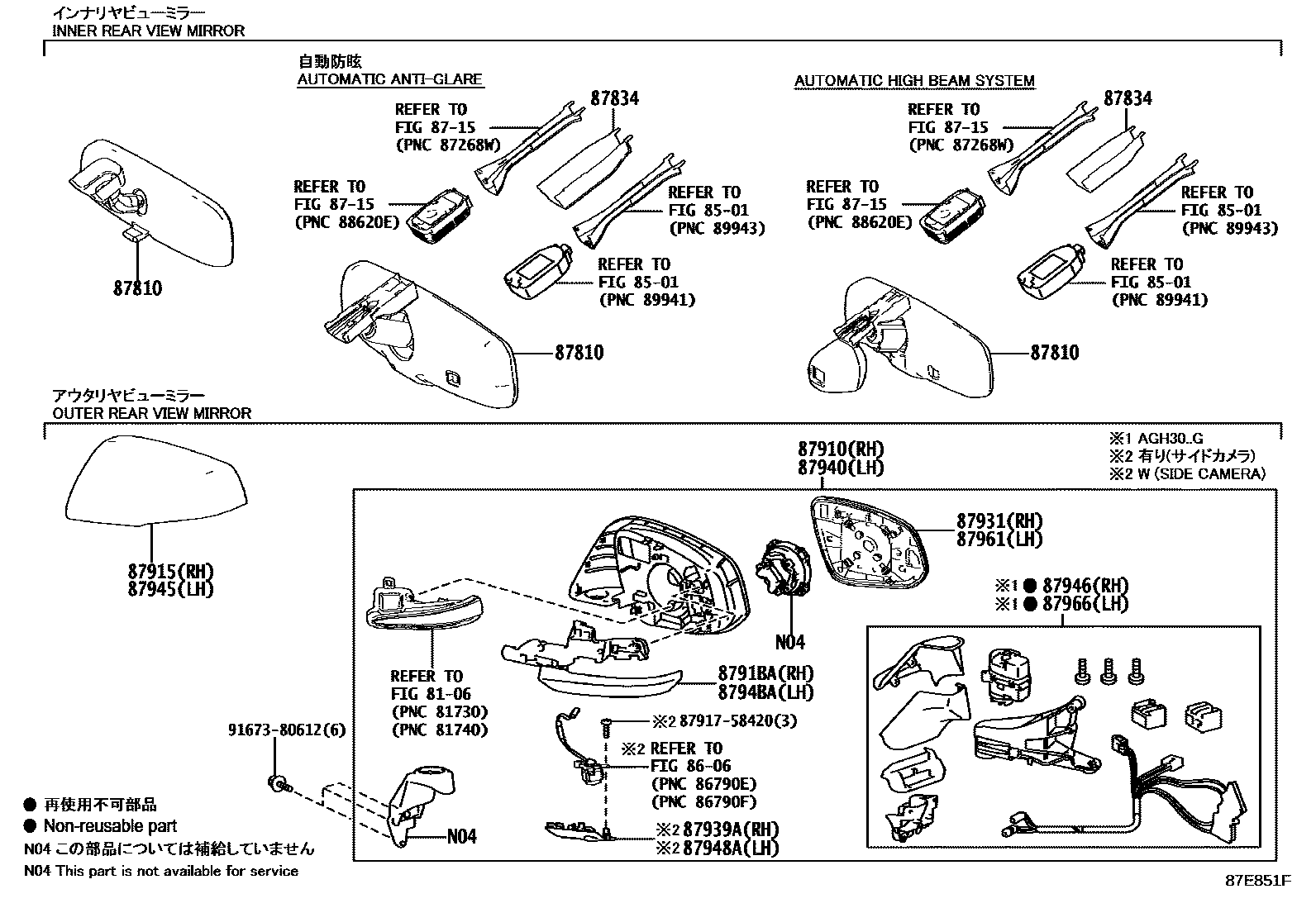

Parts diagram
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
→ Go to FIG 81-06
8501WINDSHIELD WIPER
→ Go to FIG 85-01
8606CAMERA & REAR MONITOR DISPLAY
→ Go to FIG 86-06
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
→ Go to FIG 87-15
87810MIRROR ASSY, INNER REAR VIEW
main87810-0WE50supersedes 87810-0WN20i201905-202001
main87810-0WV90i201905-202001
main87810-0WW00i201905-202001
main87810-0WX10i201801-201905
main87810-0WZ40supersedes 87810-0WS60i202001
main87810-0WZ60i202001
main87810-52041i201501-201801
main87810-0WS60i202008-202105
TAIWAN SPEC
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-0W010i201801-202001
main87818-0W030i201501-201602
main87818-58060supersedes 87818-0W010i201801-202001
PHILIPPINES SPEC; RUSSIA SPEC; VIETNAM SPEC
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-58170i201501-201801
NO PAINT REQ.
main87910-58270i201801-201907
main87910-58300supersedes 87910-58250i201908-201912
main87910-58350supersedes 87910-58370i201905-202001
NO PAINT REQ.
main87910-58370i201801-202001
NO PAINT REQ.
main87910-58420supersedes 87910-58300i202001
NO PAINT REQ.; NO PAINT REQ.,AUDIO-EMV 10.5INCH 17SP JBL; NO PAINT REQ.,INDONESIA SPEC&AUDIO-EMV 10.5INCH 17SP JBL; NO PAINT REQ.,THAILAND SPEC&AUDIO-EMV 10.5INCH 17SP JBL
main87910-58430i202001
NO PAINT REQ.; NO PAINT REQ.,AUDIO-EMV 10.5INCH 17SP JBL
main87910-58440i202001
NO PAINT REQ.; NO PAINT REQ.,AUDIO-EMV 10.5INCH 17SP JBL
main87910-58210i201501-201801
NO PAINT REQ.,PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC); NO PAINT REQ.,TAIWAN SPEC&WITHOUT(COLD AREA SPEC)
main87910-58220supersedes 87910-58231i201501-201801
NO PAINT REQ.,RUSSIA SPEC&COLD AREA SPEC
main87910-58240i201607-201801
NO PAINT REQ.,MALAYSIA SPEC; NO PAINT REQ.,MALAYSIA SPEC&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)
main87910-58330i201905-202001
NO PAINT REQ.,AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)
main87910-58360i201905-202001
NO PAINT REQ.,COLD AREA SPEC
87915COVER, OUTER MIRROR, RH
main87915-58010-A0i202001
WHITE PEARL CS.,070
main87915-58010-A1i201801-201907
LUXURY WHITE PEARL CS.GF.,086
main87915-58010-B0i201501-201801
SILVER ME.,1F7
main87915-58010-C0i201501-201801
BLACK,202
main87915-58010-C1i201801-202001
SPARKLING BLACK PEARL CS.,220
main87915-58010-C2i201801-202001
BURNING BLACK CS.GF,222
main87915-58010-D1i202001
DK. RED M.M.,3Q3
main87915-58010-E0i201801-201907
STEEL BLONDE ME.,4X1
main87915-58010-E1i202001
GRAPHITE ME.,4X7
main87915-58010-J0i201501-201801
GRAYISH BLUE M.M.,8V5
8791BACOVER, OUTER MIRROR, RH NO.3
main8791B-58150supersedes 8791B-58190i201501-201801
PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC); RUSSIA SPEC&COLD AREA SPEC; TAIWAN SPEC&WITHOUT(COLD AREA SPEC)
main8791B-58190supersedes 8791B-58150i202001
AUDIO-EMV 10.5INCH 17SP JBL; INDONESIA SPEC&AUDIO-EMV 10.5INCH 17SP JBL; THAILAND SPEC&AUDIO-EMV 10.5INCH 17SP JBL
87931OUTER MIRROR, RH
main87931-58150i201501-201801
main87931-58210i202001-202008
main87931-58230i201501-201801
main87931-58250i202008
main87931-58300supersedes 87931-58310i201908-201912
main87931-58310supersedes 87931-58300i201801-202001
main87931-58320supersedes 87931-58270i202008
AUDIO-EMV 10.5INCH 17SP JBL; INDONESIA SPEC&AUDIO-EMV 10.5INCH 17SP JBL; THAILAND SPEC&AUDIO-EMV 10.5INCH 17SP JBL
main87931-58440i202001
AUDIO-EMV 10.5INCH 17SP JBL
main87931-58270i202008-202105
SINGAPORE SPEC
87939ACOVER, OUTER MIRROR HOLE, RH
main87939-58190i201801-201912
main87939-58420i202001
AUDIO-EMV 10.5INCH 17SP JBL; INDONESIA SPEC&AUDIO-EMV 10.5INCH 17SP JBL; THAILAND SPEC&AUDIO-EMV 10.5INCH 17SP JBL
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-58220i201501-201801
NO PAINT REQ.
main87940-58320i201801-201907
main87940-58350supersedes 87940-58300i201908-201912
main87940-58400supersedes 87940-58420i201905-202001
NO PAINT REQ.
main87940-58420i201801-202001
NO PAINT REQ.
main87940-58470supersedes 87940-58350i202001
NO PAINT REQ.; NO PAINT REQ.,AUDIO-EMV 10.5INCH 17SP JBL; NO PAINT REQ.,INDONESIA SPEC&AUDIO-EMV 10.5INCH 17SP JBL; NO PAINT REQ.,THAILAND SPEC&AUDIO-EMV 10.5INCH 17SP JBL
main87940-58480i202001
NO PAINT REQ.; NO PAINT REQ.,AUDIO-EMV 10.5INCH 17SP JBL
main87940-58490i202001
NO PAINT REQ.; NO PAINT REQ.,AUDIO-EMV 10.5INCH 17SP JBL
main87940-58260i201501-201801
NO PAINT REQ.,PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC); NO PAINT REQ.,TAIWAN SPEC&WITHOUT(COLD AREA SPEC)
main87940-58270supersedes 87940-58281i201501-201801
NO PAINT REQ.,RUSSIA SPEC&COLD AREA SPEC
main87940-58290i201607-201801
NO PAINT REQ.,MALAYSIA SPEC; NO PAINT REQ.,MALAYSIA SPEC&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)
main87940-58380i201801-201905
NO PAINT REQ.,PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC)&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER); NO PAINT REQ.,VIETNAM SPEC&WITHOUT(COLD AREA SPEC)&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)
main87940-58410supersedes 87940-58400i201801-202001
NO PAINT REQ.,RUSSIA SPEC&COLD AREA SPEC&AUDIO-*DA(8INCH),8SPEAKER; NO PAINT REQ.,RUSSIA SPEC&COLD AREA SPEC&AUDIO-*DA(8INCH),WITH(*EXB),17SPEKAER,JBL
87945COVER, OUTER MIRROR, LH
main87945-58010-A0i201801-201905
WHITE PEARL CS.,070
main87945-58010-A1i201801-201907
LUXURY WHITE PEARL CS.GF.,086
main87945-58010-B0i201501-201801
SILVER ME.,1F7
main87945-58010-C0i201801-202001
BLACK,202
main87945-58010-C1i201801-202001
SPARKLING BLACK PEARL CS.,220
main87945-58010-C2i201801-202001
BURNING BLACK CS.GF,222
main87945-58010-D1i201801-201905
DK. RED M.M.,3Q3
main87945-58010-E0i201801-201907
STEEL BLONDE ME.,4X1
main87945-58010-E1i202001
GRAPHITE ME.,4X7
main87945-58010-J0i201501-201801
GRAYISH BLUE M.M.,8V5
87946RETRACTOR, OUTER MIRROR, RH
main00000-00000i201501-201801
NOT APPLICABLE
main87946-58270i201801-201907
main87946-58300supersedes 87946-58250i201908-201912
main87946-58370i201801-201905
main87946-58420supersedes 87946-58300i202001
AUDIO-EMV 10.5INCH 17SP JBL; INDONESIA SPEC&AUDIO-EMV 10.5INCH 17SP JBL; THAILAND SPEC&AUDIO-EMV 10.5INCH 17SP JBL
main87946-58430i202001
AUDIO-EMV 10.5INCH 17SP JBL
main87946-58440i202001
AUDIO-EMV 10.5INCH 17SP JBL
main87946-58330supersedes 87946-58350i201905-202001
AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)
main87946-58350i201801-201905
PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC); TAIWAN SPEC&WITHOUT(COLD AREA SPEC); VIETNAM SPEC&WITHOUT(COLD AREA SPEC)
main87946-58360i201801-201905
RUSSIA SPEC&COLD AREA SPEC
87948ACOVER, OUTER MIRROR HOLE, LH
main87948-58240i201801-201905
main87948-58470i202001
AUDIO-EMV 10.5INCH 17SP JBL; INDONESIA SPEC&AUDIO-EMV 10.5INCH 17SP JBL; THAILAND SPEC&AUDIO-EMV 10.5INCH 17SP JBL
8794BACOVER, OUTER MIRROR, LH NO.3
main8794B-58200supersedes 8794B-58240i201501-201801
PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC); RUSSIA SPEC&COLD AREA SPEC; TAIWAN SPEC&WITHOUT(COLD AREA SPEC)
main8794B-58240supersedes 8794B-58200i201801-201912
87961MIRROR OUTER, LH
main87961-28B70i201501-201801
main87961-48B10i202001
AUDIO-EMV 10.5INCH 17SP JBL
main87961-48B20supersedes 87961-58320i202008
AUDIO-EMV 10.5INCH 17SP JBL; INDONESIA SPEC&AUDIO-EMV 10.5INCH 17SP JBL; THAILAND SPEC&AUDIO-EMV 10.5INCH 17SP JBL
main87961-58260i202001-202008
main87961-58280i201501-201801
main87961-58300i202008
main87961-58350supersedes 87961-58360i201908-201912
main87961-58360supersedes 87961-58350i201801-202001
main87961-58320i202008
INDONESIA SPEC; THAILAND SPEC
87966RETRACTOR, OUTER MIRROR, LH
main00000-00000i201501-201801
NOT APPLICABLE
main87966-58320i202001
main87966-58350supersedes 87966-58300i201908-201912
main87966-58420i201801-202001
main87966-58470supersedes 87966-58350i202001
AUDIO-EMV 10.5INCH 17SP JBL; INDONESIA SPEC&AUDIO-EMV 10.5INCH 17SP JBL; THAILAND SPEC&AUDIO-EMV 10.5INCH 17SP JBL
main87966-58480i202001
AUDIO-EMV 10.5INCH 17SP JBL
main87966-58490i202001
AUDIO-EMV 10.5INCH 17SP JBL
main87966-58380supersedes 87966-58400i201801-201905
PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC)&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER); VIETNAM SPEC&WITHOUT(COLD AREA SPEC)&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)
main87966-58400i201801-201905
PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC); TAIWAN SPEC&WITHOUT(COLD AREA SPEC); VIETNAM SPEC&WITHOUT(COLD AREA SPEC)
main87966-58410i201801-201905
RUSSIA SPEC&COLD AREA SPEC
8791758420ESCUTCHEON
main87917-58420
9167380612
main91673-80612

20 parts on this diagram · 6 diagrams in section

MIRROR for Toyota ALPHARD/VELLFIRE/HV

This section contains 26 genuine Toyota parts for the MIRROR system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, WINDSHIELD WIPER, CAMERA & REAR MONITOR DISPLAY, PRE-COLLISION SYSTEM, HEATING & AIR CONDITIONING - CONTROL & AIR DUCT.
