Toyota ALPHARD/VELLFIRE/HV — METER

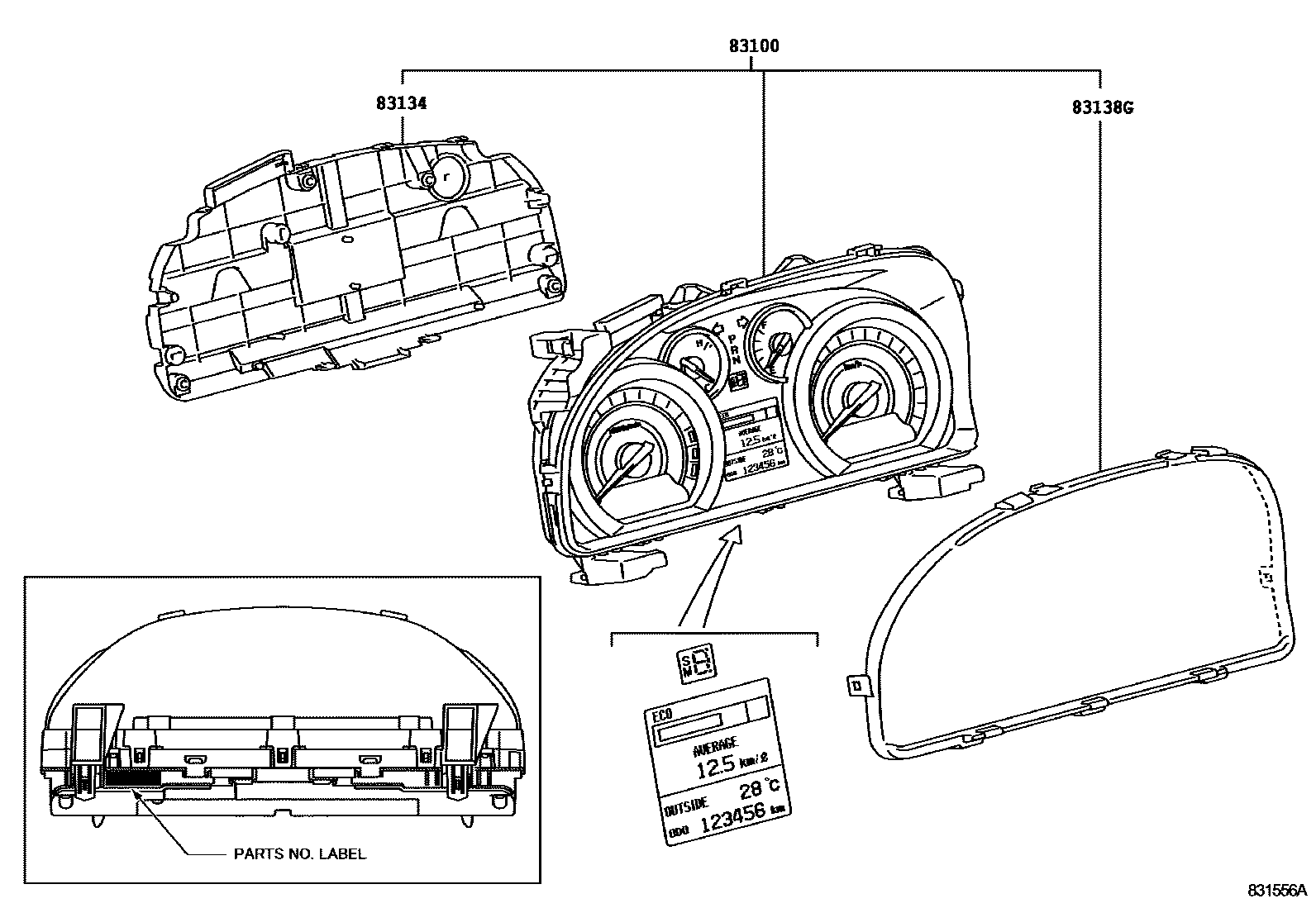

83100METER ASSY, COMBINATION

main83800-58260i201006-201110

CHECK PART NO.LABEL

main83800-58300i200804-200905

CHECK PART NO.LABEL

main83800-58301i200905-201004

CHECK PART NO.LABEL

main83800-58302i201004-201110

CHECK PART NO.LABEL

main83800-58320i201006-201110

CHECK PART NO.LABEL

main83800-58360i201110-201209

BRUNEI SPEC,CHECK PART NO.LABEL; CHECK PART NO.LABEL; INDONESIA SPEC,CHECK PART NO.LABEL; THAILAND SPEC,CHECK PART NO.LABEL

main83800-58380i201110-201209

CHECK PART NO.LABEL

main83800-58390i201110-201205

CHECK PART NO.LABEL

main83800-58400i201112-201202

CHECK PART NO.LABEL

main83800-58401i201202-201209

CHECK PART NO.LABEL

main83800-58410i201110-201209

CHECK PART NO.LABEL

main83800-58460i201209

BRUNEI SPEC,CHECK PART NO.LABEL; CHECK PART NO.LABEL; INDONESIA SPEC,CHECK PART NO.LABEL; THAILAND SPEC,CHECK PART NO.LABEL

main83800-58480i201209

CHECK PART NO.LABEL

main83800-58490i201209

CHECK PART NO.LABEL; PHILIPPINES SPEC,CHECK PART NO.LABEL

main83800-58500i201205

CHECK PART NO.LABEL

main83800-58510i201209

CHECK PART NO.LABEL

main83800-58530i201209

CHECK PART NO.LABEL

main83800-58420i201110-201209

RUSSIA SPEC,CHECK PART NO.LABEL

main83800-58520i201209

RUSSIA SPEC,CHECK PART NO.LABEL

83134COVER, COMBINATION METER, NO.1

main83821-58270i200804-201110

83138GGLASS, COMBINATION METER

main83852-58270i201110

3 parts on this diagram · 1 diagram in section

METER for Toyota ALPHARD/VELLFIRE/HV

This section contains 3 genuine Toyota parts for the METER system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: METER ASSY, COMBINATION, COVER, COMBINATION METER, NO.1, GLASS, COMBINATION METER.
