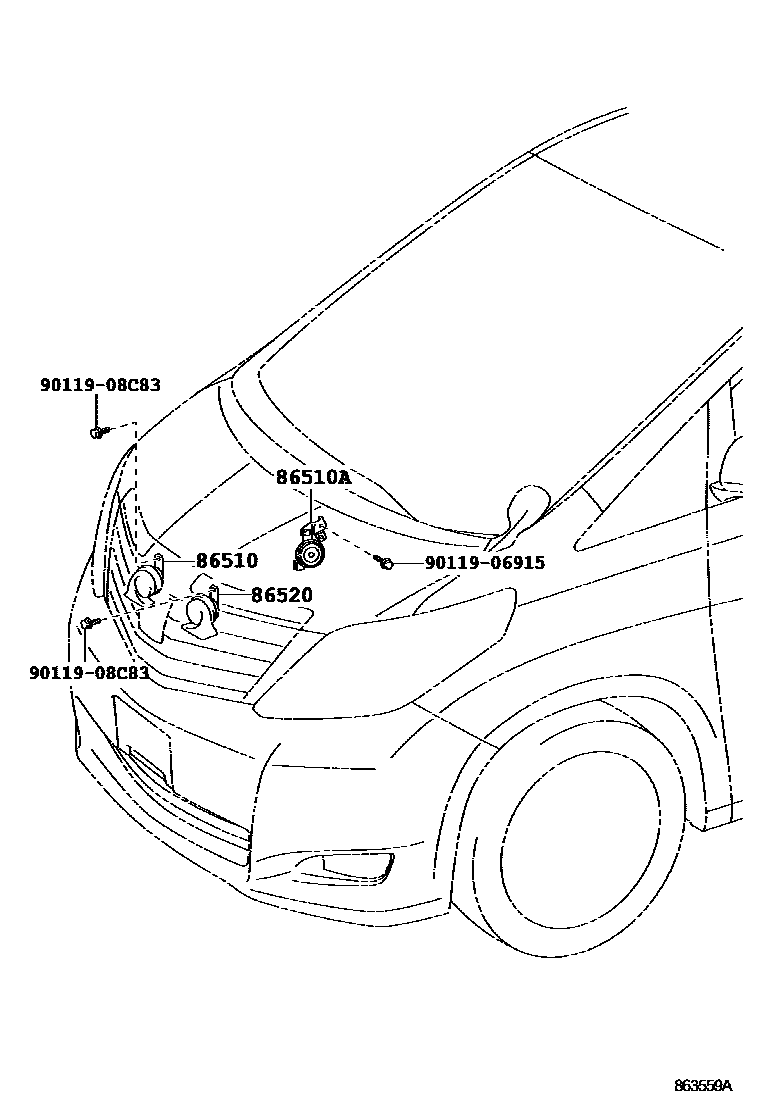

Toyota ALPHARD/VELLFIRE/HV — HORN

86510HORN ASSY, HIGH PITCHED

main86510-48150supersedes 86510-58010i201205-201206

main86510-48160i201110-201205

main86510-48190supersedes 86510-48160i200804-201110

VELLFIRE

main86510-58020i200804-201110

ALPHARD

main86510-58010i201009-201110

PHILIPPINES SPEC; TAIWAN SPEC

86510AHORN ASSY, SECURITY

main86560-28010i201006-201110

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

86520HORN ASSY, LOW PITCHED

main86520-30670supersedes 86520-48120i201206

PHILIPPINES SPEC; RUSSIA SPEC; TAIWAN SPEC

main86520-48110supersedes 86520-58010i201205-201206

main86520-48120i201110-201205

main86520-58020i200804-201110

ALPHARD

main86520-58040i200804-201110

VELLFIRE

main86520-58010i201009-201110

PHILIPPINES SPEC; TAIWAN SPEC

9011906915

main90119-06915

9011908C83

main90119-08C83

5 parts on this diagram · 2 diagrams in section

HORN for Toyota ALPHARD/VELLFIRE/HV

This section contains 9 genuine Toyota parts for the HORN system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, SECURITY, HORN ASSY, LOW PITCHED, SPEAKER ASSY, VEHICLE APPROACHING, CONTROLLER, VEHICLE APPROACHING SPEAKER.
