Toyota ALPHARD/VELLFIRE/HV — HEATING & AIR CONDITIONING - COMPRESSOR

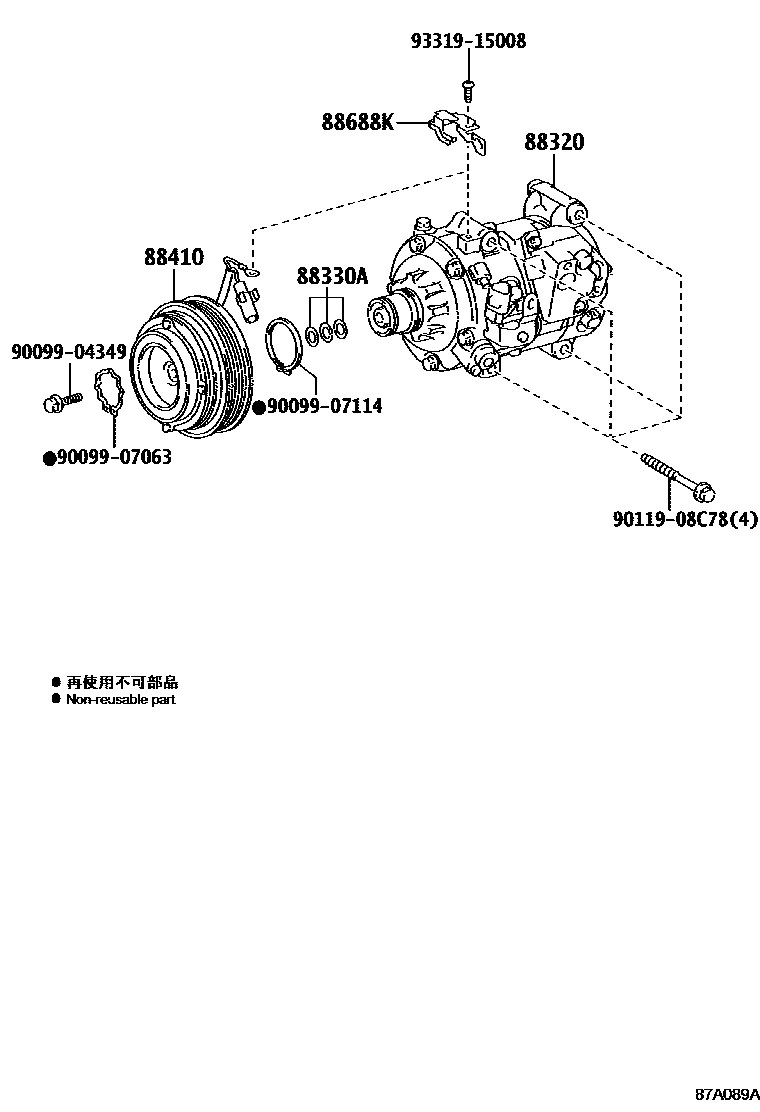

Parts diagram

88320COMPRESSOR ASSY, COOLER

main88320-28420i200804-201110

main88320-28430i201006-201110

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i201110

88410CLUTCH ASSY, MAGNET

main88410-33150i200804-201110

88688KBRACKET, COOLER COMPRESSOR

main88688-33460i200804-200806

main88688-48250i200806-201110

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

9011908C78

main90119-08C78

9331915008

main93319-15008

9 parts on this diagram · 4 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota ALPHARD/VELLFIRE/HV

This section contains 16 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: COMPRESSOR ASSY, W/PULLEY, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), COMPRESSOR ASSY, W/MOTOR, CLUTCH ASSY, MAGNET.
