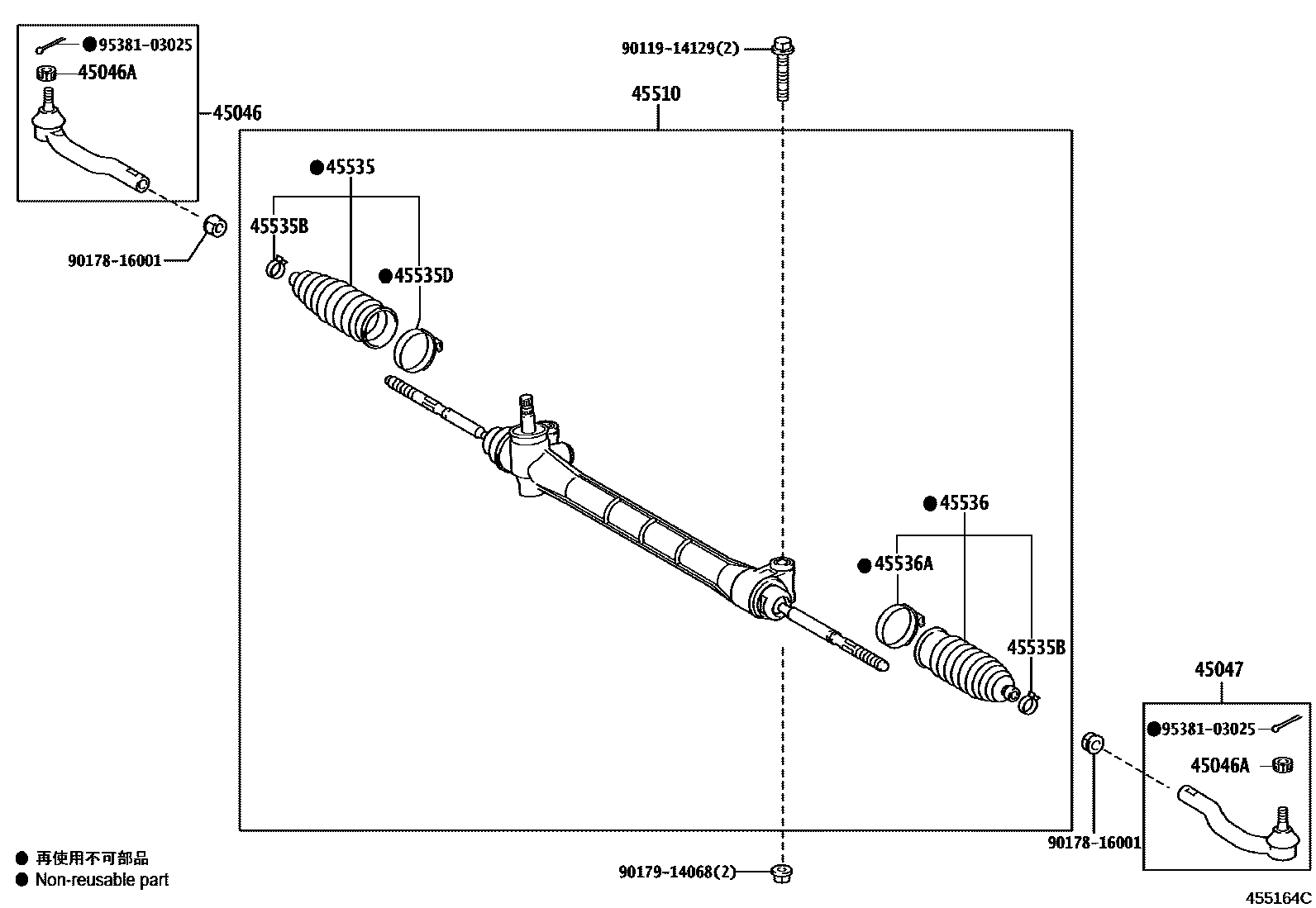

Toyota ALPHARD/VELLFIRE/HV — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-29515i201110

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2i200804-201110

45047END SUB-ASSY, TIE ROD, LH

main45047-29195i201110

45510GEAR ASSY, STEERING

main45510-58010i200804-201110

main45510-58030i201006-201110

main45510-58040i201112

45535BOOT, STEERING RACK, NO.1

main45535-59005i200804-201110

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2i200804-201110

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-47010i200804-201110

45536BOOT, STEERING RACK, NO.2

main45535-59005i200804-201110

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-47010i200804-201110

9011914129

main90119-14129

9017816001

main90178-16001

9017914068

main90179-14068

9538103025

main95381-03025

13 parts on this diagram · 2 diagrams in section

FRONT STEERING GEAR & LINK for Toyota ALPHARD/VELLFIRE/HV

This section contains 13 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: END SUB-ASSY, TIE ROD, RH, NUT, CASTLE(FOR TIE ROD END), END SUB-ASSY, TIE ROD, LH, GEAR ASSY, STEERING, BOOT, STEERING RACK, NO.1.
