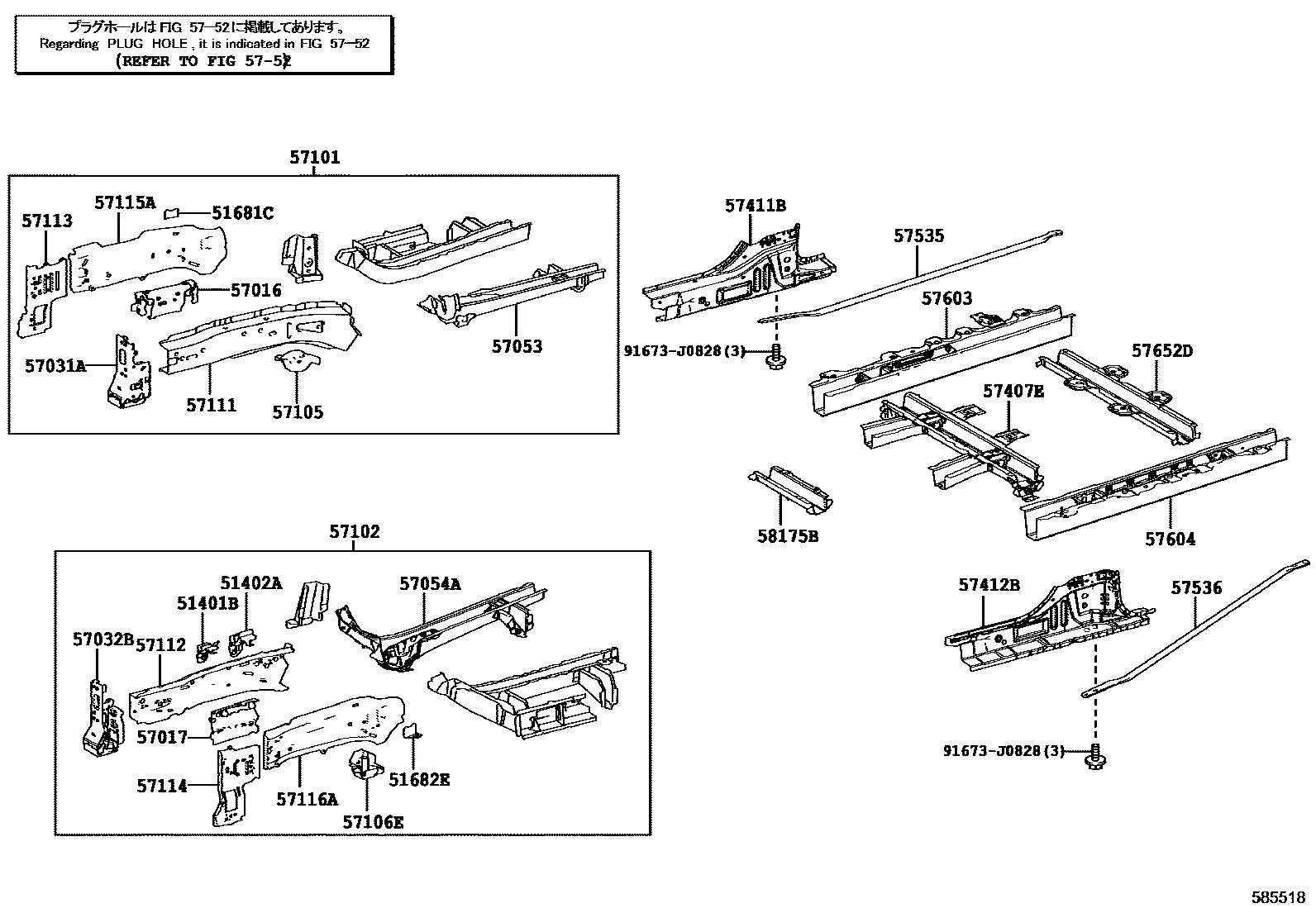

Toyota ALPHARD/VELLFIRE/HV — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING

main51401-28070i201501-201801

51402ABRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-28060i201501-201801

51681CPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-12080i201501-201801

51682EPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-12080i201501-201801

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-12110i201501-201801

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-12070i201501-201801

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-12010i201501-201801

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-12010i201501-201801

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-58010i202001

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-58010i201801-201907

main57054-58020i201501-201801

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-58040i201501-201801

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-58050i201501-201712

main57102-58051i201712-201801

main57102-58060i201501-201712

main57102-58061i201712-201801

main57102-58070i201905-202001

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-12160i201801-201907

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-12150i202001

57111MEMBER, FRONT SIDE, RH

main57111-12230i201501-201801

57112MEMBER, FRONT SIDE, LH

main57112-58010i201501-201712

main57112-58011i201712-201801

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12220i201501-201801

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12191i201501-201801

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57025-12010i201501-201801

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57026-12020i201501-201801

57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-58060i201501-201801

main57407-58100i201501-201801

57411BMEMBER, FLOOR SIDE, INNER RH

main57047-58010i202001

57412BMEMBER, FLOOR SIDE, INNER LH

main57048-58010i201501-201801

5752HOLE PLUG

→ Go to FIG 57-52

57535BRACE, FRONT FLOOR, RH

main57535-58010i201501-201801

57536BRACE, FRONT FLOOR, LH

main57536-58010i201801-202001

57603MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57603-58020i201801-201907

57604MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57604-58050i201501-201801

57652DMEMBER, REAR FLOOR CROSS, NO.1

main57605-58030i202001

main57605-58070i202001

58175BANGLE SUB-ASSY, FRONT FLOOR, REAR

main58175-58010i201501-201801

91673J0828

main91673-J0828

31 parts on this diagram · 2 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota ALPHARD/VELLFIRE/HV

This section contains 52 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH, PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH, PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH.
