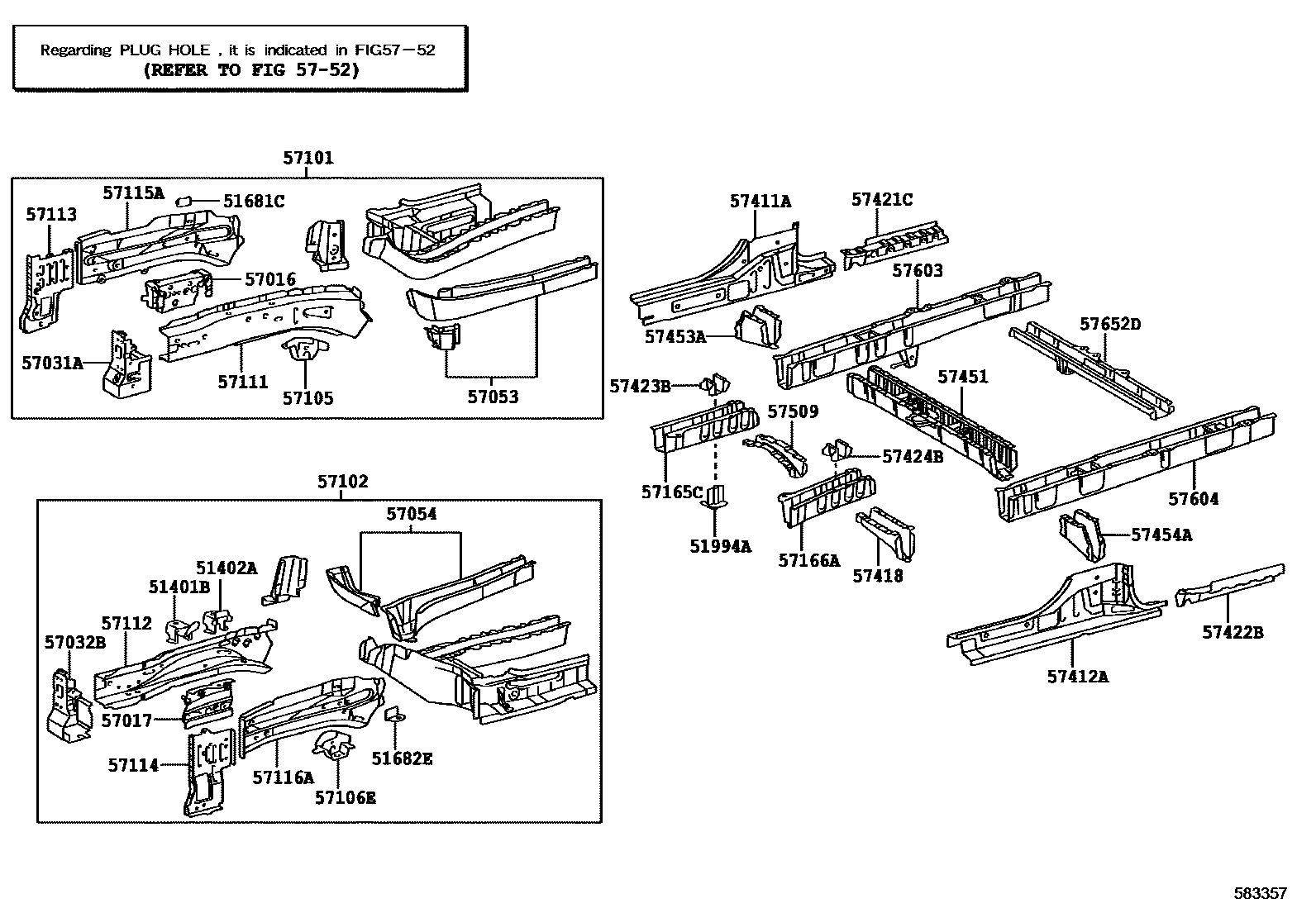

Toyota ALPHARD/VELLFIRE/HV — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING

main51401-28070i201110

51402ABRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-28060i200804-201110

51681CPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-12080i200804-201110

51682EPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-12080i200804-201110

51994AHANGER, EXHAUST PIPE, SUPPORT, NO.4

main51992-28060i200804-201110

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-12110i200804-201110

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-12070i200804-201110

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-12010i200804-201110

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-12010i200804-201110

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-28010i200804-201110

57054REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.5

main57054-28010i200804-201110

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-58020i200804-201109

main57101-58021i201110

main57101-58031i201112

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-58040i200804-201109

main57102-58041i201110

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-12160i200804-201110

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-12150i200804-201110

57111MEMBER, FRONT SIDE, RH

main57111-12230i200903-201110

main57111-42060i200804-200902

57112MEMBER, FRONT SIDE, LH

main57112-28270i200804-201110

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12220i200804-201110

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12190i200804-201110

main57114-12191i201407

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57025-12010i201405

main57115-12090i201110-201405

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57026-12020i201405

main57116-12091i201401-201405

main57116-42030i200804-201110

57165CGUSSET, FLOOR MEMBER, RH

main57165-28031i200804-201110

main57165-28041i201112

57166AGUSSET, FLOOR MEMBER, LH

main57166-28021i200804-201110

main57166-28031i201112

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-58020i200804-201110

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-58020i200804-201110

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-28040i200804-201110

57421CPLATE, FLOOR SIDE RAIL, RH

main57421-28130i200804-201110

57422BPLATE, FLOOR SIDE RAIL, LH

main57422-28100i200804-201110

57423BREINFORCEMENT, FRONT FLOOR UNDER, INNER RH

main57423-28050i200804-201110

57424BREINFORCEMENT, FRONT FLOOR UNDER, INNER LH

main57424-28040i200804-201110

57451MEMBER, FRONT FLOOR CROSS

main57408-28120i200804-201110

57453AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, RH

main57453-28050i200804-201110

57454AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, LH

main57454-28020i200804-201110

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-28040i201110

57603MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57603-28090i201110

57604MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57604-28060i200804-201110

57652DMEMBER, REAR FLOOR CROSS, NO.1

main57605-28410i201110

main57652-28150i201110

37 parts on this diagram · 6 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota ALPHARD/VELLFIRE/HV

This section contains 54 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH, PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH, PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH, HANGER, EXHAUST PIPE, SUPPORT, NO.4.
