Toyota ALPHARD/VELLFIRE/HV — FOG LAMP

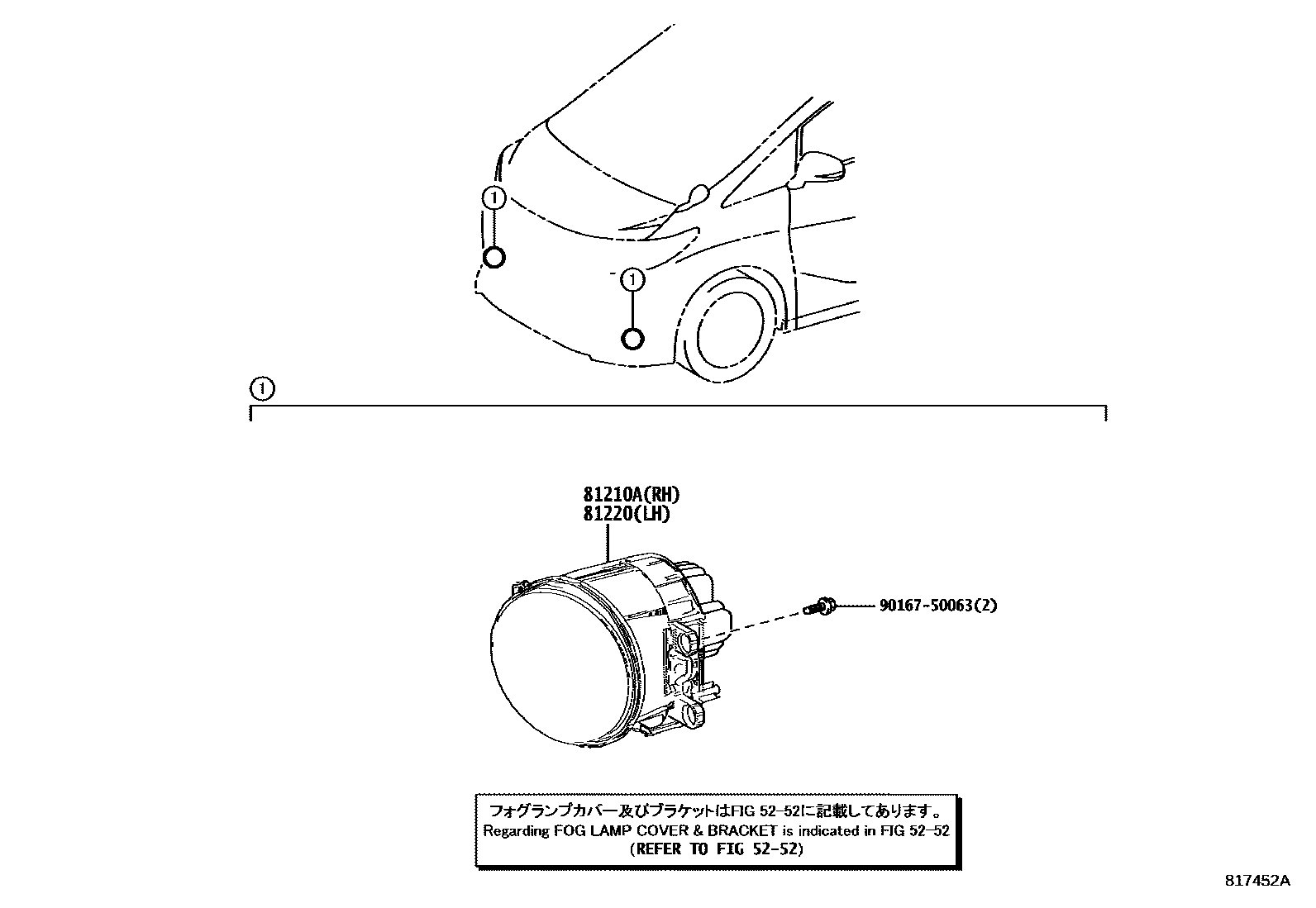

Parts diagram

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

81210ALAMP ASSY, FOG, RH

main81210-12230i201501-201506

main81210-47010i201507-201801

main81210-48050i201501-201603

main81210-48051i201801-202001

81220LAMP ASSY, FOG, LH

main81220-12230i201501-201506

main81220-47010i201507-201801

main81220-48050i201501-201603

main81220-48051i202001

9016750063

main90167-50063

4 parts on this diagram · 3 diagrams in section

FOG LAMP for Toyota ALPHARD/VELLFIRE/HV

This section contains 9 genuine Toyota parts for the FOG LAMP system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, BRACKET, FOG LAMP, RH.
