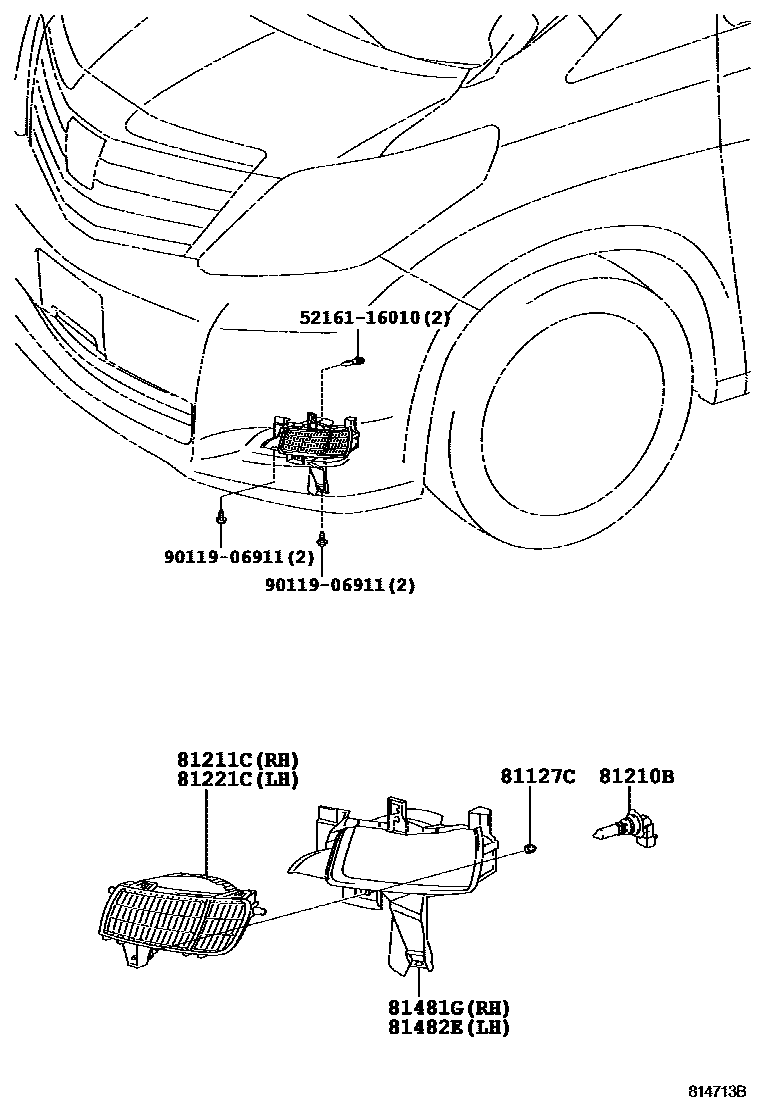

Toyota ALPHARD/VELLFIRE/HV — FOG LAMP

81127CBEARING FOG LAMP

main90075-10811×2i200804-201110

81210BBULB, FOG LAMP

main90981-13047×2i200804-201110

12V 51W,HALOGEN

main90981-13075×2i201110

12V 55W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-12180i200804-201008

main81211-42050i200804-201110

main81211-44101i201008-201110

81221CLAMP UNIT, FOG LAMP, LH

main81221-12180i200804-201008

main81221-42050i200804-201110

main81221-44101i201008-201110

81481GBRACKET, FOG LAMP, RH

main81481-58050i200804-201110

main81481-58080i200804-201110

main81481-58090i201008-201110

81482EBRACKET, FOG LAMP, LH

main81482-58030i200804-201110

main81482-58060i200804-201110

main81482-58070i201008-201110

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9011906911

main90119-06911

8 parts on this diagram · 4 diagrams in section

FOG LAMP for Toyota ALPHARD/VELLFIRE/HV

This section contains 17 genuine Toyota parts for the FOG LAMP system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: FRONT BUMPER & BUMPER STAY, BEARING FOG LAMP, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH.
